US$ 10 - 1,100
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
DSL
Model Number:
DSL
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rock Bit for Rock DrillUS$ 1,000 - 100,001MOQ: 100 Units -
Diamond Core Drill BitUS$ 11,111 - 111,111,111MOQ: 200 Units
-
Drill Rods for Pneumatic Paving Breaker Jack HammerUS$ 100 - 10,001MOQ: 200 Rods
-
Chisel Type/cross Type Taper Drill Rod for Pneumatic Paving BreakerUS$ 100 - 10,001MOQ: 1111 Rods
-
R32/r38/t38/t45/51 Fact Face Drop Center/retrac Button Thread BitsUS$ 100 - 10,001MOQ: 200 Units
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
DSL
Type
Core Drill Bit
Material
Cobalt Steel Alloys
Use
Metal Drilling
Specifications

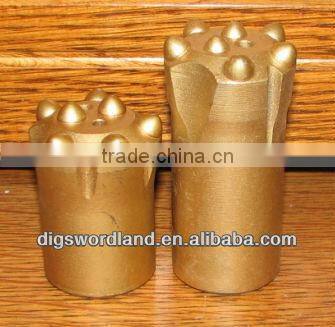

Drilling bits for rock drill1)high effciency
2)powerful to work
3)favorable price
4)ISO-9001&CE certificat
Drilling bits for rock drill
fact face /drop center/retrac button
Specification
| Flat Face and drop Centre and Retrac Button | ||||||||
| Bit Diameter:64mm,76mm,89mm,102mm(2 33/64",3",3 1/2",4") | ||||||||
| Thread: R32,R38,T38,T45,T51 |
four buttons bits
| Bit Diameter | Buttons(mm) | Taper | Water Hole | Part No. | |||
| mm | in | Guage | Front | Angle | |||
| 32 | 1 17/64" | 3*8 | 1*8 | 25° | 7° | 3 | DSL-340 |
| 34 | 1 11/32" | 3*8 | 1*8 | 25° | 7° | 3 | DSL-341 |
| 36 | 1 27/64" | 3*8 | 1*8 | 25° | 7° | 3 | DSL-342 |
| 38 | 1 1/2" | 3*8 | 1*8 | 25° | 7° | 3 | DSL-343 |
| 40 | 1 37/64" | 3*8 | 1*8 | 25° | 7° | 3 | DSL-344 |
| 42 | 1 47/64" | 3*8 | 1*8 | 25° | 7° | 3 | DSL-345 |
seven buttons bits
| Bit Diameter | Buttons(mm) | Taper | Water Hole | Part No. | |||
| mm | in | Guage | Front | Angle | |||
| 32 | 1 17/64" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-347 |
| 34 | 1 11/32" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-348 |
| 36 | 1 27/64" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-349 |
| 38 | 1 1/2" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-350 |
| 40 | 1 37/64" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-351 |
| 42 | 1 47/64" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-352 |
| 45 | 1 49/64" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-353 |
| 48 | 1 57/64" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-354 |
| 51 | 2" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-355 |
chisel bits
| Bit Diameter | Buttons | Taper | Water Hole | Part No. | |
| mm | in | mm | |||
| 30 | 1 3/16" | 10*15 | 7° | 2 | DSL-301 |
| 32 | 1 17/64" | 10*15 | 7° | 2 | DSL-302 |
| 34 | 1 11/32" | 10*15 | 7° | 2 | DSL-303 |
| 36 | 1 27/64" | 10*15 | 7° | 2 | DSL-304 |
| 38 | 1 1/2" | 10*15 | 7° | 2 | DSL-305 |
| 40 | 1 37/64" | 10*15 | 7° | 2 | DSL-306 |
| 42 | 1 47/64" | 10*17 | 7° | 2 | DSL-307 |
cross bits
| Bit Diameter | Buttons | Taper | Water Hole | Part No. | |
| mm | in | mm | |||
| 32 | 1 17/64" | 8*12 | 7° | 3 | DSL-328 |
| 34 | 1 11/32" | 8*12 | 7° | 3 | DSL-329 |
| 36 | 1 27/64" | 8*12 | 7° | 3 | DSL-330 |
| 38 | 1 1/2" | 8*12 | 7° | 3 | DSL-331 |
| 40 | 1 37/64" | 8*12 | 7° | 3 | DSL-332 |
| 42 | 1 47/64" | 8*12 | 7° | 3 | DSL-333 |
