Help CenterDiamond Core Drill Bit
US$ 11,111 - 111,111,111
MOQ: 200 Units
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
DSL
Model Number:
drill bits
Payment & Shipping
Payment Methods:
Port of Shipment:
fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Drill Rods for Pneumatic Paving Breaker Jack HammerUS$ 100 - 10,001MOQ: 200 Rods -
Chisel Type/cross Type Taper Drill Rod for Pneumatic Paving BreakerUS$ 100 - 10,001MOQ: 1111 Rods
-
R32/r38/t38/t45/51 Fact Face Drop Center/retrac Button Thread BitsUS$ 100 - 10,001MOQ: 200 Units
-
Patent Product Drill Bits for Pneumatic Paving BreakerUS$ 50 - 10,000MOQ: 200 Units
-
Brazing Rod for Pneumatic BreakerUS$ 80,888 - 188,808MOQ: 30 Pieces
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
drill bits
Type
Center Drill Bit
Material
Diamond
Use
Masonry Drilling
Specifications
diamond core drill bit1,high efficient
2,excellent quality
3,ISO9001&CE
4,reasonable price
diamond core drill bit
Bits-Chisel Bit
| Specification | ||||||
| Bit Diameter | Buttons | Taper | Water Hole | Part No. | ||
| mm | in | mm | ||||
| 30 | 1 3/16" | 10*15 | 7° | 2 | DSL-301 | |
| 32 | 1 17/64" | 10*15 | 7° | 2 | DSL-302 | |
| 34 | 1 11/32" | 10*15 | 7° | 2 | DSL-303 | |
| 36 | 1 27/64" | 10*15 | 7° | 2 | DSL-304 | |
| 38 | 1 1/2" | 10*15 | 7° | 2 | DSL-305 | |
| 40 | 1 37/64" | 10*15 | 7° | 2 | DSL-306 | |
| 42 | 1 47/64" | 10*17 | 7° | 2 | DSL-307 | |

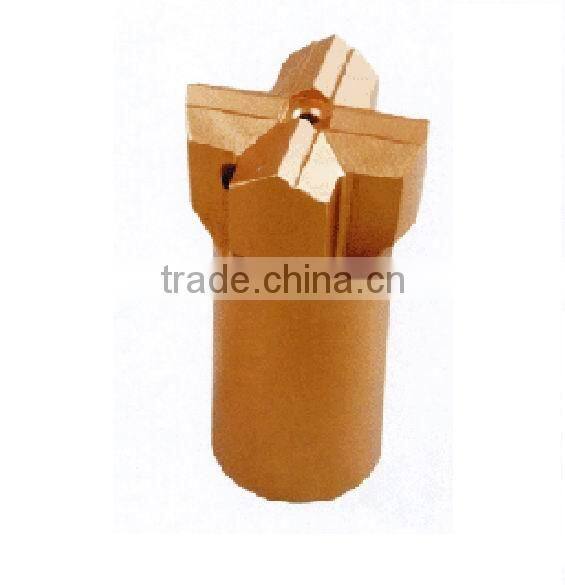

Bit -cross bits
specification
| Bit Diameter | Buttons | Taper | Water Hole | Part No. | |
| mm | in | mm | |||
| 32 | 1 17/64" | 8*12 | 7° | 3 | DSL-328 |
| 34 | 1 11/32" | 8*12 | 7° | 3 | DSL-329 |
| 36 | 1 27/64" | 8*12 | 7° | 3 | DSL-330 |
| 38 | 1 1/2" | 8*12 | 7° | 3 | DSL-331 |
| 40 | 1 37/64" | 8*12 | 7° | 3 | DSL-332 |
| 42 | 1 47/64" | 8*12 | 7° | 3 | DSL-333 |
Bits -seven buttons bits
specification
| Bit Diameter | Buttons(mm) | Taper | Water Hole | Part No. | |||
| mm | in | Guage | Front | Angle | |||
| 32 | 1 17/64" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-347 |
| 34 | 1 11/32" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-348 |
| 36 | 1 27/64" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-349 |
| 38 | 1 1/2" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-350 |
| 40 | 1 37/64" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-351 |
| 42 | 1 47/64" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-352 |
| 45 | 1 49/64" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-353 |
| 48 | 1 57/64" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-354 |
| 51 | 2" | 5*10 | 2*8 | 35° | 7°/11°/12° | 3 | DSL-355 |
Bits-four buttons bits
specification
| Bit Diameter | Buttons(mm) | Taper | Water Hole | Part No. | |||
| mm | in | Guage | Front | Angle | |||
| 32 | 1 17/64" | 3*8 | 1*8 | 25° | 7° | 3 | DSL-340 |
| 34 | 1 11/32" | 3*8 | 1*8 | 25° | 7° | 3 | DSL-341 |
| 36 | 1 27/64" | 3*8 | 1*8 | 25° | 7° | 3 | DSL-342 |
| 38 | 1 1/2" | 3*8 | 1*8 | 25° | 7° | 3 | DSL-343 |
| 40 | 1 37/64" | 3*8 | 1*8 | 25° | 7° | 3 | DSL-344 |
| 42 | 1 47/64" | 3*8 | 1*8 | 25° | 7° | 3 | DSL-345 |
Bits-fact face/drop center/retrac button
specification
| Specification | ||||||||
| Flat Face and drop Centre and Retrac Button | ||||||||
| Bit Diameter:64mm,76mm,89mm,102mm(2 33/64",3",3 1/2",4") | ||||||||
| Thread: R32,R38,T38,T45,T51 | ||||||||
