Help CenterHydraulic Water Hole Boring Machines XY-200
Related Products
Specifications
water well drilling rig1.Similar to good brand
2.Well design below to factory,low price.
3.Drilling depth:200m
4.CE

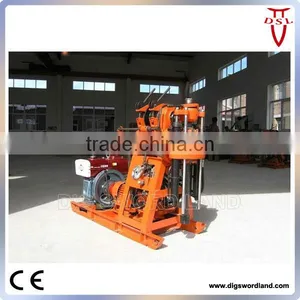

hydraulic water hole boring machines XY-200
The application scope about the drilling rig
Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
- With hydro-automatic feeding device, and high drilling efficiency.
- Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
- Close levers, convenient to operate, safe and reliable operations.
- Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
- Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.
The specification of the drilling rig
Specifications | ||
Unity machine parameter | ||
Drilling depth |
100 180m |
|
Drill rod caliber |
50 42mm |
|
End hole caliber |
75 46mm |
|
Maximum open hole caliber |
220mm |
|
Drilling angle |
90°~75° |
|
Unity machine dimensions |
2.1×0.9×1.3m |
|
Drill weight (No include power) |
610kg |
|
Spindle | ||
spindle speed |
130 300 480 730 830 1045r/min |
|
Spindle stroke |
450mm |
|
Hoist | ||
Max.single line hoisting capacity |
11KN |
|
Single line lifting speed |
1.06 0.67 0.32m/s |
|
Tightrope caliber |
9.3mm |
|
Tightrope cubic measure |
35m |
|
Hug floodgate belt width |
50mm |
|
Hug floodgate caliber |
240mm |
|
Mud pump | ||
Type |
Horizontal single urn twin-action |
|
Displacement |
95 77L/min |
|
Diesle engine |
s1105 18HP |
|
Electric motor |
Y160M—4 11KW |
|
Maximum pressure |
1.2Mpa |
|
Work pressure |
0.7Mpa |
|

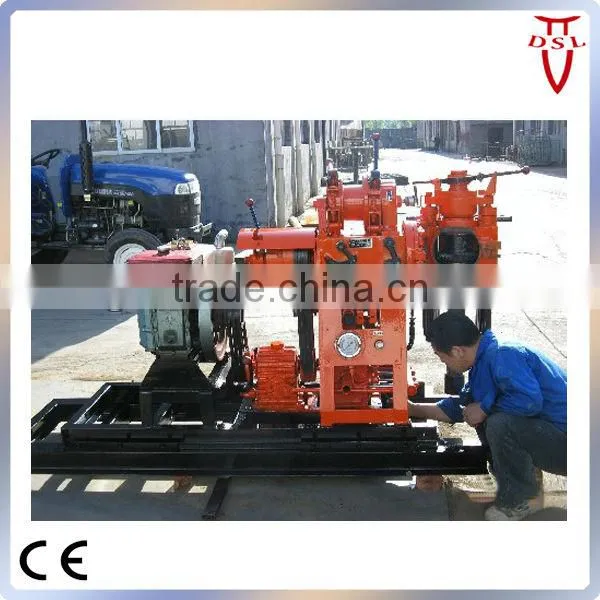

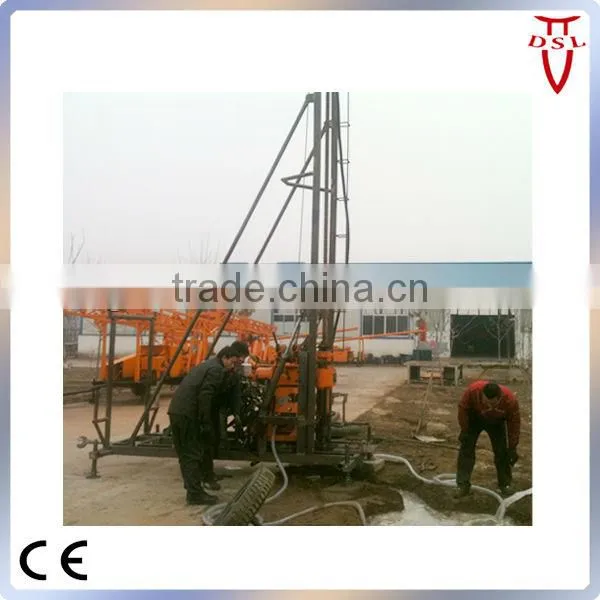

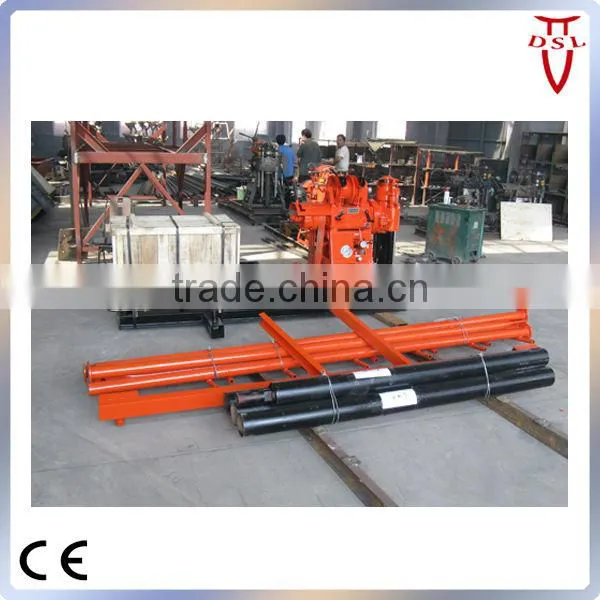

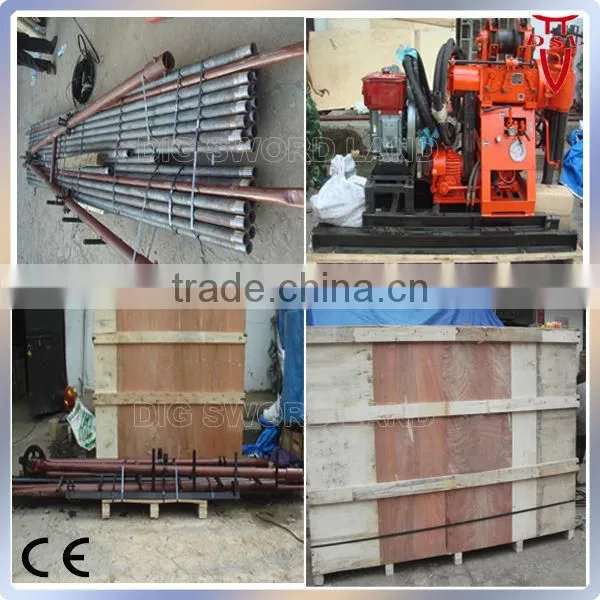

Some picture about the drilling rig
---------------------------------------------------------------------------
Mob: +86-15750862797
Skype:digswordland.mary
The specification of other drilling rig
Model |
XY-100 | XY-130 | XY-180 | XY-200 |
|---|---|---|---|---|
|
Drilling depth |
100m |
130m |
180m |
200m |
Maximum open hole diameter |
200mm |
220mm |
220mm |
300mm |
End hole caliber |
75mm |
75mm |
75mm 46mm |
75mm |
Drill rod caliber |
50mm |
50mm |
50mm 42mm |
60mm |
Drilling angle |
90°~75° |
90°~75° |
90°~75° |
90°~75° |
Drill weight(No include power) |
480 510kg |
560kg |
610kg |
975kg |
