Digswordland Company YT27 Air Leg Drill
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
DSL
Model Number:
YT27
Payment & Shipping
Payment Methods:
Port of Shipment:
fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digswordland Company YT27 Pneumatic Jack Leg DrillNegotiableMOQ: 10 Pieces -
New Hot Sale~ YT27 Pneumatic Jack Leg DrillNegotiableMOQ: 10 Pieces
-
New Hot Sale~ YT27 Pneumatic Jack Hammer /Rock DrillNegotiableMOQ: 10 Pieces
-
YT24 - Air Hammer for Coal BedNegotiableMOQ: 5 Sets
-
B47 Middle Size Jack Hammer for BreakingUS$ 2 - 150MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
YT27
Type
Air Drill
Average Air Consumption
83.3L/S
Maximum Torque
2000
No-Load Speed
2000
Specifications
YT27 Pneumatic Hand Drill1.Light weight
2.Exellent quality
3.Mainly used for blasting hole
4.Best price
YT27 Air Leg Drill
Instruction
1.The rock drill is a kind of high efficiency air leg rock drill machine.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and national defence project facility.
3.When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drilling under various of rocks at aclinic and incline orientation,it can also use in the trolley without Air-leg.
Specification
| Weight | 27 kg | ||
| Outside dimension(L×W×H) | 668×248×202mm | ||
| Cylinder dia | 80mm | ||
| Piston stroke | 60mm | ||
| Impact energy | ≥75.5J | ||
| Impact frequencey | ≥ 36.9Hz | ||
| Air consumption | ≤83.3L/S | ||
| Air pipe (inner dia) | 25mm | ||
| Water pipe (inner dia) | 13mm | ||
| Air pressure | 0.63MPa | ||
| Water pressure | 0.3MPa | ||
| Bore dia | 34-45mm | ||
| Bore depth | 5m | ||
| Shank dimensions(hex×length) | 22×108±1mm/ 25×108±1mm | ||
| Model FY250B oil lubricator | |||
| Weight | 1.2kg | ||
| Oil capacity | 0.25L | ||

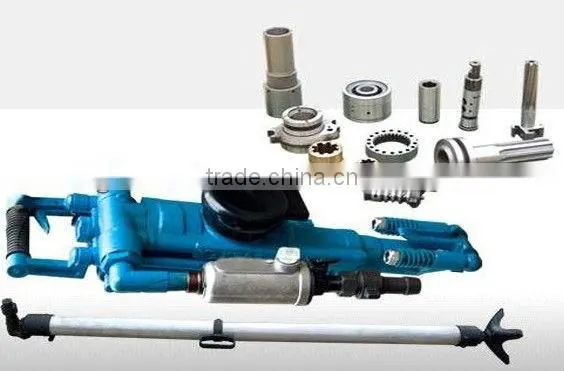

| Air leg | FT160A | FT160B | |
| Weight | 17kg | 16 kg | |
| Llength:max | 3006mm | 2526mm | |
| min | 1668mm | 1428mm | |
| Propulsion stroke | 1338mm | 1098 mm | |
| Axis thrust (max) | 2000N | 2000N | |
Welcome to inquiry~
