Negotiable
MOQ: 5 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
DSL.
Model Number:
YT24
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB FUZHOU CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
B47 Middle Size Jack Hammer for BreakingUS$ 2 - 150MOQ: 1 Set -
Y26 Hand Held Rock DrillerUS$ 1 - 2MOQ: 1 Set
-
TOKU B90 Pick Hammer/Pick BreakerNegotiableMOQ: 10 Pieces
-
YT28 Quality Rock Drill ManufactureUS$ 90 - 500MOQ: 1 Set
-
High Quality Y26 Hand Held Rock Drill Jack BreakerUS$ 90 - 500MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
DSL.
Model Number
YT24
Type
Air Hammer
Average Air Consumption
66.7L/S
Specifications
YT24 - air hammer for coal bed1.quarries, railway, water conservancy construction
2.high efficiency

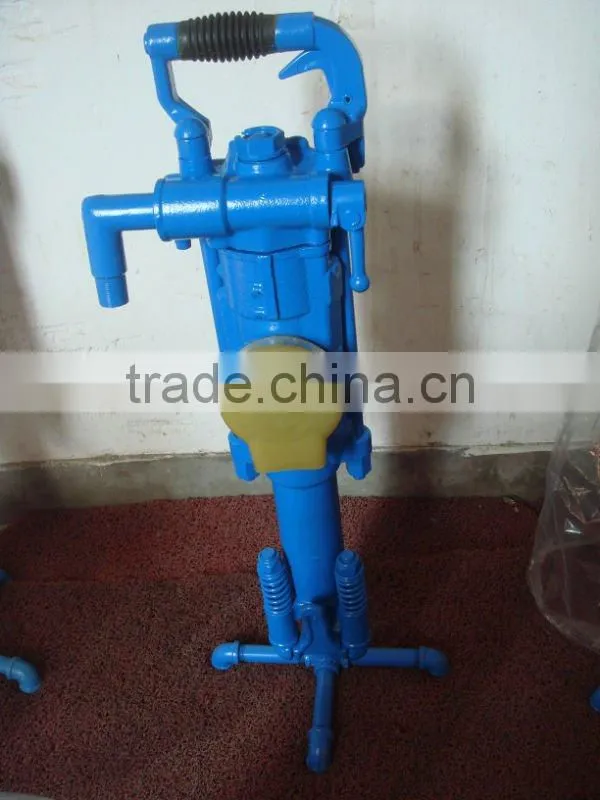

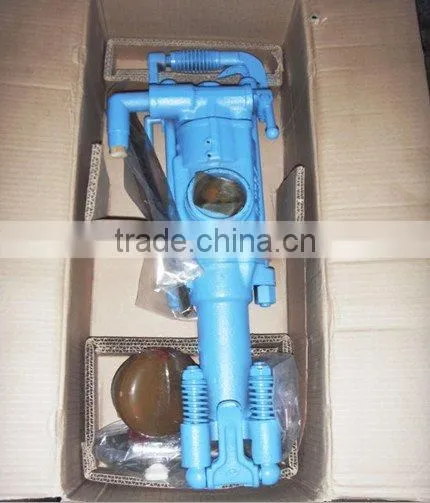

YT24 - air hammer for coal bed
Instruction
The rock drill is a kind of high efficiency air leg rock drill machine.It is widely used for blasting holes and other drilling projects in a quarries, railway construction, water conservancy construction and defence project facility.
It is suitable for drill level or gradient holes in medium hard or hard rock(f=8-18).The drilling depth can be five-eight meters. It can be matched with the FT140BD short air-leg or FT140B long air-leg to use in the basis of the width of rock.Also it can be fixed on drilling-vehicle or drilling-shelf.
To ensure the well lubricating.This rock drill may match FY200B oil reservior
Specification
| Weight | about 24 kg |
|---|---|
| Length | 678mm |
| Cylinder dia | 70mm |
| Piston stroke | 70mm |
| Air pressure | 0.4—0.63MPa |
| Impact frequencey | more than31Hz |
| Air consumption | 66.7 L/S |
| Air pipe (inner dia) | 19mm |
| Water pipe (inner dia) | 13mm |
| Shank head dia | 34-42mm |
| Shank dimensions(hex*length) | 22*108 mm±1mm |
| FT140B Air-leg: | |
| Length of air-leg | 1687mm |
| Pushstroke | 1250mm |
| Cylinderdia | 60mm |
| Weight | 15.6kg |
| FT140BD Air-leg: | |
| Lengthofair-leg | 1400mm |
| Push stroke | 965mm |
| Cylinderdia | 60mm |
| Weight | 13.9kg |
| FY200B Oil reservior: | |
| Capacity | 200milliliter |
