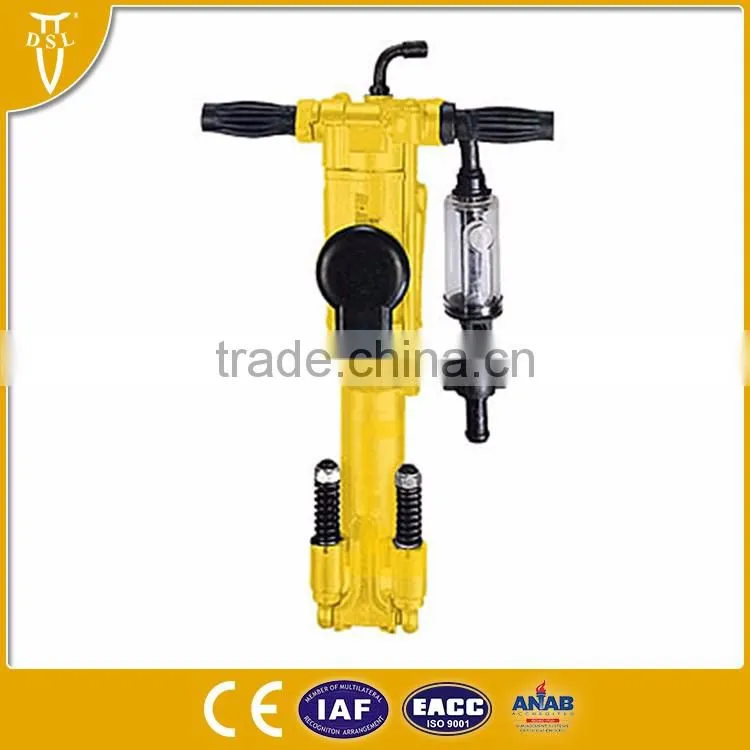

Underground Y018 Hand Hold Air Rock Drill Machine
US$ 90 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Other, Pneumatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou or Other ports in China(mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Yt27 Air Leg Rock Drill Machine , Yt27 Jack Leg Rock DrillUS$ 90 - 500MOQ: 1 Set -
Coal Mine Tool Pneumatic Yt24 Air Leg Rock DrillUS$ 90 - 500MOQ: 1 Set
-
Superb Asphalt Cutter Yt28 Jack Leg Air Rock DrillUS$ 90 - 500MOQ: 1 Set
-
Wholesale YT29a Pneumatic Rock Diamond Drill HoleUS$ 90 - 500MOQ: 1 Set
-
Pneumatic YT29a Air Rock Drill Hammer ConcreteUS$ 90 - 500MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Other, Pneumatic
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
YO18
Usage
Coal
Voltage
Pneumatic Engine Driven
Power(W)
None
Dimension(L*W*H)
Length 550MM
Weight
18KG
Certification
ISO CE
Warranty
None
After-sales Service Provided
No overseas service provided
underground y018 hand hold air rock drill machine
Product Description
The rock drill is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.
It’s suitable for drilling of horizontal or inclined holes on the medium-hard and hard rock. When it’s matched with air leg Model FT100, it can blast holes from different directions and angles.
Blast hole diameter is between 36mm and 42mm. with an efficient depth from 1.5m to 2m.
It’s recommended to be matched with Model py-1.2/0.39 air compressor which is powered by Model RS1100 diesel engine. Other suitable air compressors can also be matched with this rock drill.
| Weight | 18 | KG |
| Length | 550 | MM |
| Cylinder diameter | 58 | MM |
| Piston stroke | 45 | MM |
| Air pipe inner diameter | 19 | MM |
| Water pipe inner diameter | 8 | MM |
| Shank Size | 22*108 | MM |
| Working pressure(at 3.9*105Pa): | ||
| Air consumption | <1.2 | m³/min |
| Average drilling rate | 80 | MM |
| Working pressure(at 4.9*105Pa): | ||
| Impact Energy | 24.5 | J |
| Air consumption | ≤1.35 | m³/min |
| Average drilling rate | 120 | MM |
| FY200 Oil Lubricator | ||
| Weight | ≤1.2 | KG |
| Oil Reserve | 200 | ML |
| FT100 Air Leg | ||
| Weight | ≤11 | KG |
| Advance Length | 810 | MM |
| Cylinder diameter | 52 | MM |
| Air leg Length | 1312 | MM |
