Solarizer Integrative Solar Heating With Assistant Tank 5L or 10liters

Solarizer Integrative Solar Heating With Assistant Tank 5L or 10liters thumbnail-1
Solarizer Integrative Solar Heating With Assistant Tank 5L or 10liters photo-1
Negotiable MOQ: 3 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LFpower
Model Number:
SD-T-20
Contact Supplier Request Quote Chat Now
Wuyi Lefeng Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LFpower
Model Number SD-T-20
Type Non-Pressure
Application Water Heater
Pipe Material Glass

Specifications

Solar heating :
1. stainless steel or color plate Material and Frame
2. CCC, CE, ISO9001 ISO14001
3. Efficient heater

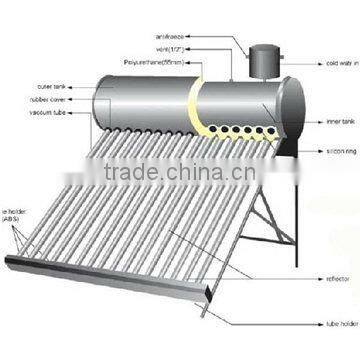

Solar heating :



a)Vacuum Tube:

1. Evacuated Tube: tri-element tube;High boron and silicon content 3.3;Structure:Gradual change SS-AL-Nx/Cu selective absorption coating;Vacuum Degree:P<=5*10-4;Service Life:15 years

2.Dia(mm)*Len :58*1800mm or 47*1500mm



b)Tank:

  1. Dia outer/inner (mm): 470/360,420/310
  2. Outer tank: stainless steel 304 BA/ stainless steel 304 2B/ color plate
  3. Inner tank: stainless steel 304-2B, thickness : 0.31mm or 0.41mm
  4. Heat insulating layer: 55mm thickness polyurethane foam



c)Frame

1.Frame Material: Galvanized steel plate with plastic spraying 1.5mm thickness

2. Frame material:aluminum alloy with 2.0mm thickness

3.Frame material: stainless steel 304 with 1.2mm thickness.

d) Electric heater: 1.5Kw to 3Kw



Can produce according to customer's designated requirements

Solarizer integrative solar heating with assistant tank 5L or 10litersSolarizer integrative solar heating with assistant tank 5L or 10liters
