Specifications
Knitted hose,1.can be bent by hand easily .
at maximum temperature by 200
3.Black film protect for mechanical damage
Kinitted hose ,
Item Description
LF02-12-13 TWIN DN12 SUS304 EPDM13MM
LF02-16-13 TWIN DN16 SUS304 EPDM13MM
LF02-20-13 TWIN DN20 SUS304 EPDM13MM
LF02-12-20 TWIN DN12 SUS304 EPDM20MM
LF02-16-20 TWIN DN16 SUS304 EPDM20MM
LF02-20-20 TWIN DN20 SUS304 EPDM20MM
LFSS02-12-13 SINGLE DN12 SUS304 EPDM13MM
LFSS02-16-13 SINGLE DN16 SUS304 EPDM13MM
LFSS02-20-13 SINGLE DN20 SUS304 EPDM13MM
LFSS02-12-20 SINGLE DN12 SUS304 EPDM20MM
LFSS02-16-20 SINGLE DN16 SUS304 EPDM20MM
LFSS02-20-20 SINGLE DN20 SUS304 EPDM20MM
Remark: Prices for the SINGLE pre-insulated hose are without sensorcables .

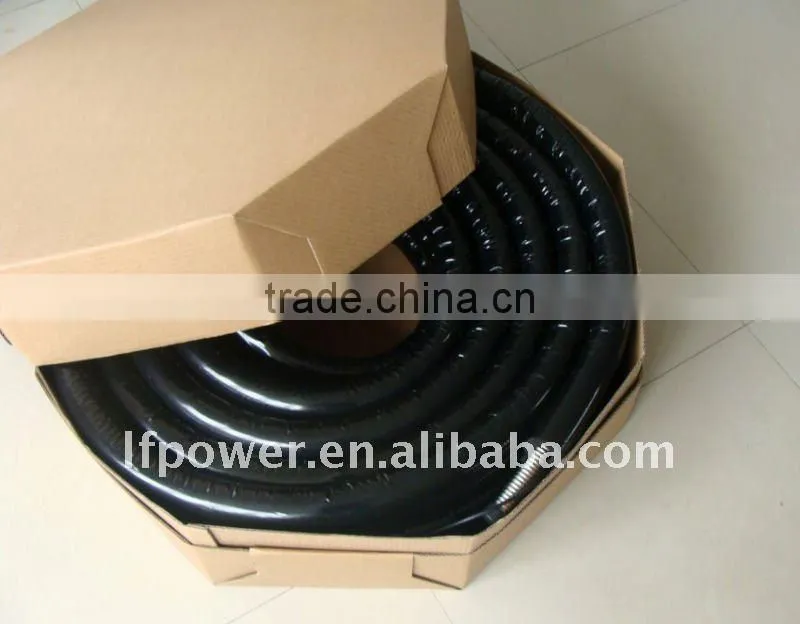

Package : In carton package .
Each Carton contains free set of : 4*copper nuts,4*Klingrit fiber washers, 4*circlips .
For extra optional fittings, will be according to clients’requirements .
Product Photos:

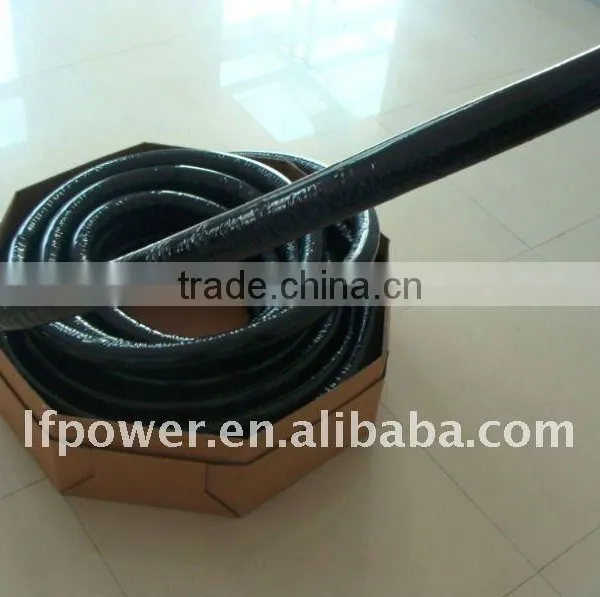

Flexible stainless steel corrugate pipeEPDM insulation pipe

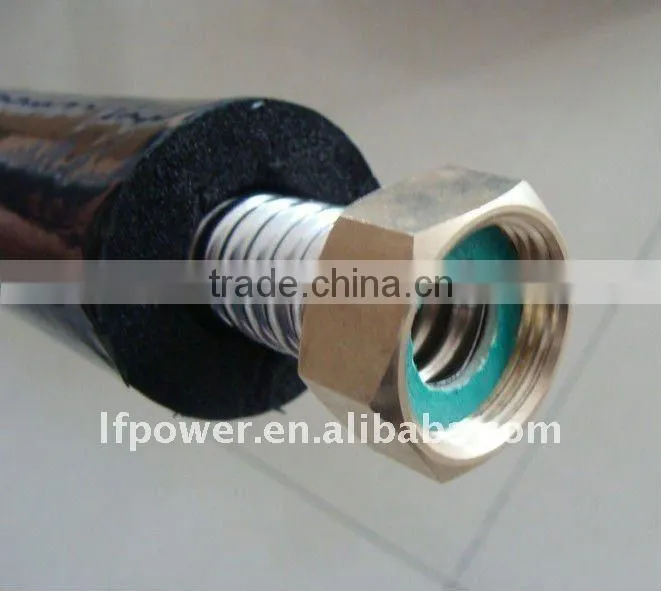

Pre-insulated solar hose Accessories: copper nut, fiber washer, circlip
Product Characteristics:
- High quality flexible stainless steel corrugated pipes can be bent by hand easily .
- High temperature silicon insulated sensor cable , can work at maximum temperature by 200°C.
- AeroflexEPDM insulation is high temperature ,UV and weathering resistant .
- Black film protect for mechanical damages during installation .
Technical Data:
Aeroflex EPDM Insulation pipe:
1.Wide working temperature range from -57°C to +150°C (intermittently +175 °C)
2.Flammability: Class B1 (GB8624), Self-extinguished (ASTM D635)
3.Thermal conductivity: λ0°C= 0.034 W/m.k, λ40°C = 0.039 W/m.k (ASTM C 177 JIS A1412-1989 DIN 52613)
4. Excellent UV and weathering resistance ,free of ,CFC , HCFC .
Corrugated pipe(SUS304) :
DN ID(mm) OD(mm) Bias(mm) Thickness(mm)
12 12.0 16.0 0.2 0.25
16 16.0 20.0 0.2 0.25
20 20.0 25.0 0.2 0.25
Your Benefits :
.Can be connected with all solar heating system standard components.
.No soldering or welding required, make the installation easy and reliable .
.Longer lifetime for the pipework installation ,thanks to the high quality UV and high temperature resistant EPDM insulation .
.Suitable for both indoor and outdoor service .
Product Range :
DN12 in lengths of 10 ,15,20,25,30 meters
DN16 in lengths of 10 ,15,20,25,30 meters
DN20 in lengths of 10 ,15,20,25,30 meters
