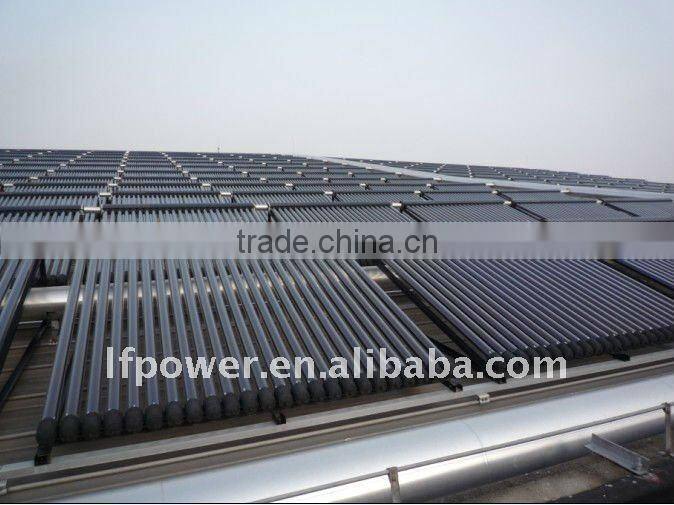

Solar collector project floor heating system 500Liters

Specifications

Solar collector
1.EN12975 solar keymark
2.Anti-freezen & pressurized
3.10 years warranty

Solar collector



1.Reliable and efficient twin-glass solar tubes

2.Copper heat pipes for repid heat transfer

3.Easy plug in installation

4.Free maintenance

5.Suitable for mains pressure water (up to 1 Bar)

6.Corrosion resistant silver brazed copper header

7.Aluminum frame

8.Power coated (black,brown or silver) aluminum casing

9.Stable solar conversion during the day

10.The perfect solar collector for domestic solar water heater system

11.Ideal for commercial solar water heating applications.



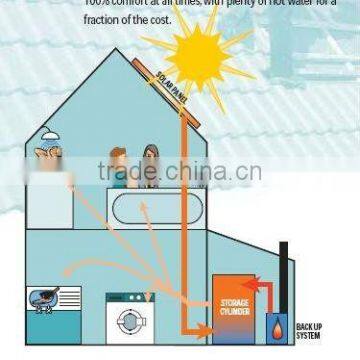

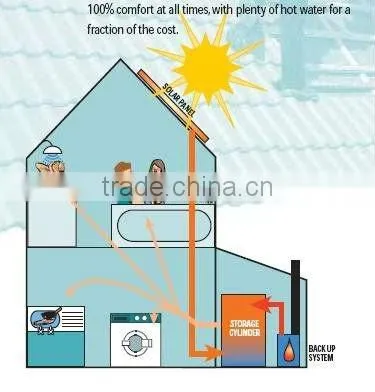

Heat pipe solar collector work principle



1.The operation of the solar collector is very simple

2.Solar abshrough the header,orption: solar radiation is absorbed by the solar tubes and converted into heat

3.Solar heat transfer:heat pipes conduct the heat from within the solar tube up to the header pipe

4.Soalr energy storage:water is circulated through the header, via intermittent pump cycling, each time the water cirulates through the header, the temperatures is raised by 5-10C. Throughout the day, the water in the tank is gradually heated



Heat pipe solar collector technical specificaton



Manifold casing material: aluminum

Frame material:aluminum

Header pipe material:copper

Insulation:rock woolemperature

Rubber seal and rings UV stabilized high temperature silicon rubber

Test pressure:10 bar

Collector mounting flat roof/inclined roof

Mounting angle:15-50C

Inlet:3/4"E



Solar collector(Heat pipe series)SC-H series
Model		SC-H-15-5818		SC-H-18-5818	SC-H-20-5818		SC-H-24-5818		SC-H-30-5818
Length of Tube		1800mm
Outer Diameter of Tube		φ58mm
Tube Quantity		15		18	20		24		30
Manifold		casing material,Aluminum Alloy,Thickness,1.8mm,Insulating layer,compressed rock wool
Heat Pipe		pure red copper TU1+water,transfer power>=150W,Working pressure,4Mpa,welding pressure 4Mpa
Dust Ring Gasket		Silicon Rubber
Vacuum Tube		tri-element tube,High boron and silicon content 3.3,Structure,Gradual change SS-AL-Nx/Cu selective absorption coating,Vacuum Degree,P<=5*10-4,Service Life,10 years
Mounting Frame		Aluminum Alloy,Thickness,1.8 mm, not have back-leg
Rack Insert		ABS
Dimension(CBM)		0.24		0.32	0.33		0.39		0.5
Container Loading Quantity(set)	20	102		78	77		63		57
	40	221		169	166		136		130
	40HQ	278		213	209		172		171
