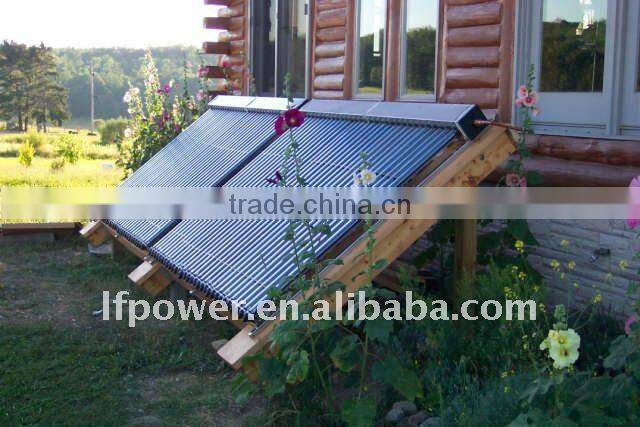

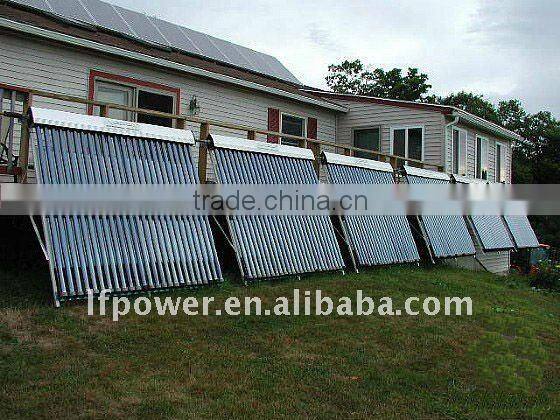

Help CenterBalcony High Pressurized Solar Collector 20tubes 58*1800mm
Related Products
-
Lox Solar Hose Double Pipe EPDM and Stainless Steel SUS304NegotiableMOQ: 25 Meters -
Modular Solar Hose SUS304 Pipe and EPDMNegotiableMOQ: 20 Meters
-
Semi-rigid Solar Hose Single Pipe and Double PipeNegotiableMOQ: 20 Meters
-
EPDM and Stainless Steel SUS304 Sunny HoseNegotiableMOQ: 20 Meters
-
Propane Gas Boil Hose Stainless Steel SUS304 and EPDM Solar HoseNegotiableMOQ: 25 Meters
Specifications
Solar collector:1.EN12975 solar keymark
2.Anti-freezen & pressurized
3.10 years warranty
Solar collector
1.Reliable and efficient twin-glass solar tubes
2.Copper heat pipes for repid heat transfer
3.Easy plug in installation
4.Free maintenance
5.Suitable for mains pressure water (up to 1 Bar)
6.Corrosion resistant silver brazed copper header
7.Aluminum frame
8.Power coated (black,brown or silver) aluminum casing
9.Stable solar conversion during the day
10.The perfect solar collector for domestic solar water heater system
11.Ideal for commercial solar water heating applications.
Heat pipe solar collector work principle
1.The operation of the solar collector is very simple
2.Solar abshrough the header,orption: solar radiation is absorbed by the solar tubes and converted into heat
3.Solar heat transfer:heat pipes conduct the heat from within the solar tube up to the header pipe
4.Soalr energy storage:water is circulated through the header, via intermittent pump cycling, each time the water cirulates through the header, the temperatures is raised by 5-10C. Throughout the day, the water in the tank is gradually heated
Heat pipe solar collector technical specificaton
Manifold casing material: aluminum
Frame material:aluminum
Header pipe material:copper
Insulation:rock woolemperature
Rubber seal and rings UV stabilized high temperature silicon rubber
Test pressure:10 bar
Collector mounting flat roof/inclined roof
Mounting angle:15-50C
Inlet:3/4"E
| Solar collector(Heat pipe series)SC-H series | ||||||||||
| Model | SC-H-15-5818 | SC-H-18-5818 | SC-H-20-5818 | SC-H-24-5818 | SC-H-30-5818 | |||||
| Length of Tube | 1800mm | |||||||||
| Outer Diameter of Tube | φ58mm | |||||||||
| Tube Quantity | 15 | 18 | 20 | 24 | 30 | |||||
| Manifold | casing material,Aluminum Alloy,Thickness,1.8mm,Insulating layer,compressed rock wool | |||||||||
| Heat Pipe | pure red copper TU1+water,transfer power>=150W,Working pressure,4Mpa,welding pressure 4Mpa | |||||||||
| Dust Ring Gasket | Silicon Rubber | |||||||||
| Vacuum Tube | tri-element tube,High boron and silicon content 3.3,Structure,Gradual change SS-AL-Nx/Cu selective absorption coating,Vacuum Degree,P<=5*10-4,Service Life,10 years | |||||||||
| Mounting Frame | Aluminum Alloy,Thickness,1.8 mm, not have back-leg | |||||||||
| Rack Insert | ABS | |||||||||
| Dimension(CBM) | 0.24 | 0.32 | 0.33 | 0.39 | 0.5 | |||||
| Container Loading Quantity(set) | 20 | 102 | 78 | 77 | 63 | 57 | ||||
| 40 | 221 | 169 | 166 | 136 | 130 | |||||
| 40HQ | 278 | 213 | 209 | 172 | 171 | |||||
| Price(USD) | ||||||||||
