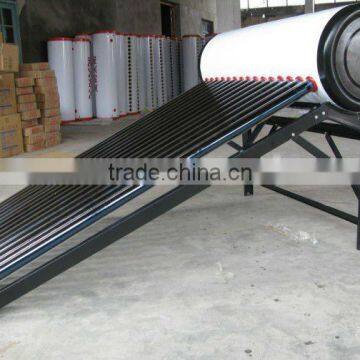

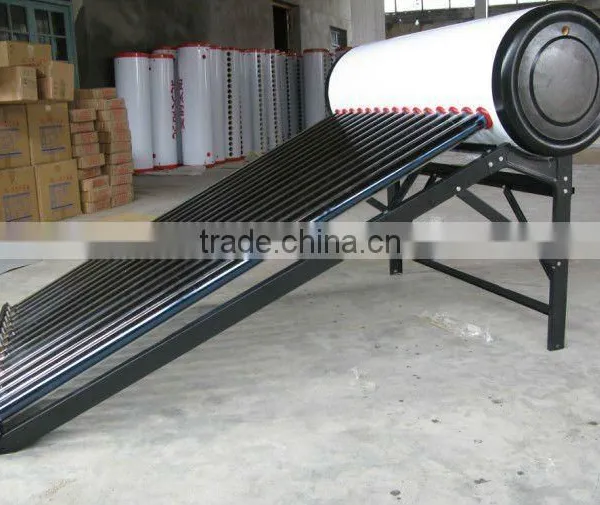

Non pressurized solar hot water heater type
Negotiable
/ Set
3 Sets(Min.Order)
- 800 Set / Sets per Month
- Shanghai Ningbo
- T/T
You May Like
-
Non pressurized solar water heater parts
-
Sell hybrid solar water heater for bath
-
Calentador de agua solar water heater for bath
-
East install solar water heater slant roof mounted
-
Split and Pressurized solar collector production equipment 200liters
-
Integrated pressurized solar water heater 240L for bathroom
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LFpower | |
| Model Number | SD-G | Type | Non-Pressure | |
| Application | Water Heater | Pipe Material | Glass |
Product Description
Specifications
Solar hot water heater1. stainless steel or color plate Material and Frame
2. CCC, CE, ISO9001 ISO14001
Solar hot water heater :
a)Vacuum Tube:
1. Evacuated Tube: tri-element tube;High boron and silicon content 3.3;Structure:Gradual change SS-AL-Nx/Cu selective absorption coating;Vacuum Degree:P<=5*10-4;Service Life:15 years
2.Dia(mm)*Len :58*1800mm or 47*1500mm
b)Tank:
- Dia outer/inner (mm): 470/360,420/310
- Outer tank: stainless steel 304 BA/ stainless steel 304 2B/ color plate
- Inner tank: stainless steel 304-2B, thickness : 0.31mm or 0.41mm
- Heat insulating layer: 55mm thickness polyurethane foam
c)Frame
1.Frame Material: Galvanized steel plate with plastic spraying 1.5mm thickness
2. Frame material:aluminum alloy with 2.0mm thickness
3.Frame material: stainless steel 304 with 1.2mm thickness.
d) Electric heater: 1.5Kw to 3Kw
Can produce according to customer's designatedrequirements
