Non Pressurized Solar Water Heater Parts

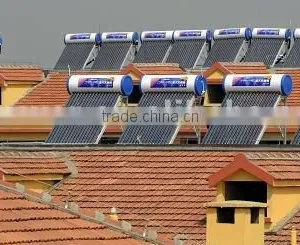

Non Pressurized Solar Water Heater Parts thumbnail-1
Non Pressurized Solar Water Heater Parts photo-1
Negotiable MOQ: 3 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LFpower
Model Number:
SD-G
Contact Supplier Request Quote Chat Now
Wuyi Lefeng Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LFpower
Model Number SD-G
Type Non-Pressure
Application Water Heater
Pipe Material Glass

Specifications

Solar water heater parts
1. stainless steel or color plate Material and Frame
2. CCC, CE, ISO9001 ISO14001
3. Efficient heat

Solar heating :



a)Vacuum Tube:

1. Evacuated Tube: tri-element tube;High boron and silicon content 3.3;Structure:Gradual change SS-AL-Nx/Cu selective absorption coating;Vacuum Degree:P<=5*10-4;Service Life:15 years

2.Dia(mm)*Len :58*1800mm or 47*1500mm



b)Tank:

  1. Dia outer/inner (mm): 470/360,420/310
  2. Outer tank: stainless steel 304 BA/ stainless steel 304 2B/ color plate
  3. Inner tank: stainless steel 304-2B, thickness : 0.31mm or 0.41mm
  4. Heat insulating layer: 55mm thickness polyurethane foam



c)Frame

1.Frame Material: Galvanized steel plate with plastic spraying 1.5mm thickness

2. Frame material:aluminum alloy with 2.0mm thickness

3.Frame material: stainless steel 304 with 1.2mm thickness.

d) Electric heater: 1.5Kw to 3Kw



Can produce according to customer's designatedrequirements



Non pressurized solar water heater parts
