US$ 500 - 600 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
1 - 2L
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Engine 4 Stroke
Engine Capacity 1 - 2L
Fuel Type Gasoline
Cylinders 1
Engine Position Outboard
Dimensions (L x W x H) (mm) OL750*OW333*OH1040

Product Description

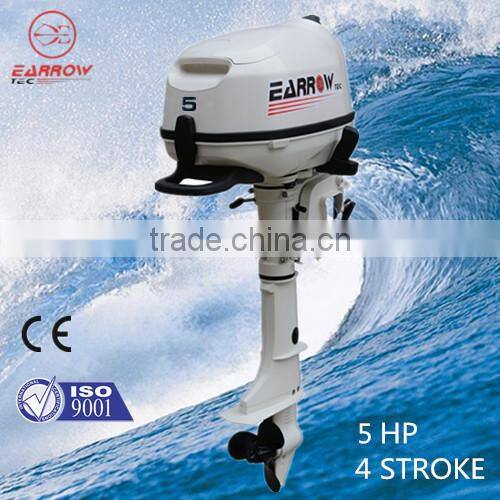

Product:  rc outboard

Type:4-stroke, 5hp





Specification

ModelF5C
Net Weight27Kg
Full Throttle Operating Range4000-5000 r/m
Maximum Output3.6kw/5hp
Idling Speed1500±50r/m
TypeFour Stroke
Displacement139cc
Bore*Stroke62*46mm
Ignition SystemCDI
Spark PlugNGK BR7HS-10
Spark Plug Gap0.6-0.7mm
Control SystemTiller Handle
Starting System Manual
Starting Carburation SystemChoke Valve
Gear PositionForward-Neutral-Reverse
Gear Ratio2.08 (27:13)
Trim and Tilt SystemManual Tilt
Recommended FuelUnleaded Gasoline
Gear Oil0.1L
Fuel Tank Capacity1.1L





Certification

CE/SGS/ISO 9001



Advantages



1,Most die casting parts and plastic parts are made by our own factory, assure the quality control



2,We have a special surface pretreatment production line, passivated surface made the parts & engine more durable, anti corrosion;



3,Our main engineers used to work in previous BRP Chinese subsidiary plant, we learn from BRP technology, our outboards are more quiet;



4, Color of top cover are one-step moulding technology instead of painting, more flexible and more corrosion resisting;



5, Besides the gasoline outboards, we can also supply propane outboards;



6, Different color available: Pearl white, Dark grey, Jewelry blue



7,95% spare parts are compatable with Yamaha Spare parts, easy for maintenance



8, Our 4 stroke 6HP four stroke is one cylinder; 15HP 2 stroke is Yamaha Enduro type, which is more powerful

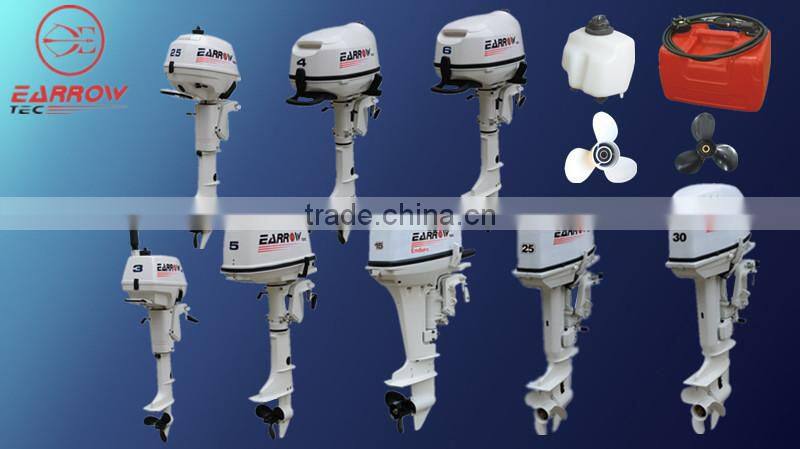

Product Series

We have both 4 and 2 stroke series, 4 stroke propane engines



rc outboard

rc outboardrc outboard

rc outboardrc outboardrc outboardrc outboard

rc outboard

rc outboard


Our Services

 OEM service

2% free spare parts

Warranty: 2 years

Packaging & Shipping

Package

Standard export package, white PP form plus carton box;





Logistic

The forwarder could be choose by you, we could provide some information of forwarders if you need.



Port of Load

Ningbo, our factory is located in xiapu zone of beilun Ningbo Zhejiang China, the over street is a container storage yard.  Very convenient  for delivery.

FAQ

Details

1.     production time: 20 workdays after payment and receive 30% deposit

2.     CE standard, FOB Ningbo

3.     MOQ: 2 units for sample

4.     Delivery time: sample 2-3 days, volume order 20 days

5.     Payment: T/T or L/C

Company Information

We are Chinese professional outboard motor manufacturer. All our outboards are CE approval and our factory is ISO9001 qualified.

Our product range is from 2.5hp to 30hp,both two and four stroke are available.



Philosophy

Quality First, User-oriented Management, Dedication to customer services



R & D Team

OEM service available;

All of our key engineers came from the previous BRP outboard factory of China DG, with more than 10years' experience.

rc outboardrc outboard



Customer visit

rc outboard

rc outboard



Shanghai China International Boat Show 2014

rc outboard



Miami Boat Show 2013

rc outboard
