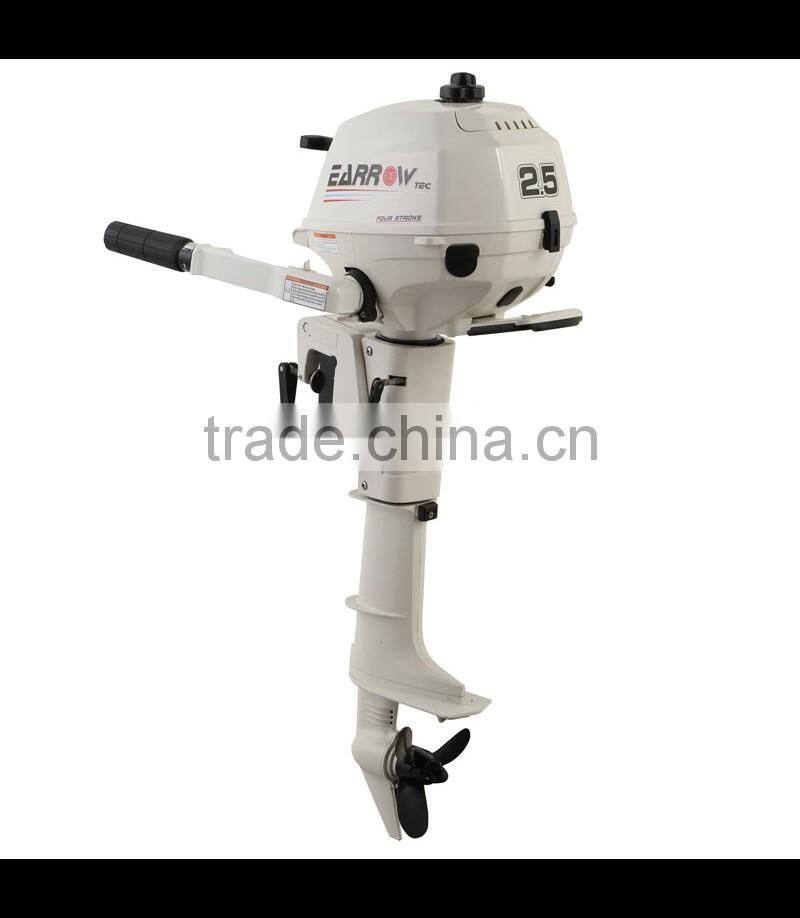

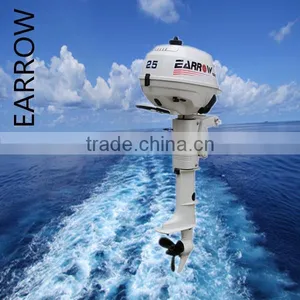

4 Stroke 2.5hp Outboard Engine Motor

4 Stroke 2.5hp Outboard Engine Motor thumbnail-1
4 Stroke 2.5hp Outboard Engine Motor thumbnail-2
4 Stroke 2.5hp Outboard Engine Motor thumbnail-3
4 Stroke 2.5hp Outboard Engine Motor thumbnail-4
4 Stroke 2.5hp Outboard Engine Motor thumbnail-5

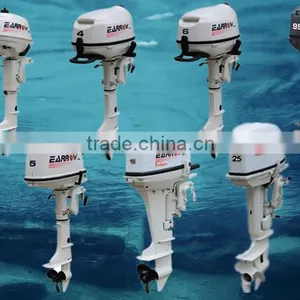

4 Stroke 2.5hp Outboard Engine Motor thumbnail-6
4 Stroke 2.5hp Outboard Engine Motor photo-1
4 Stroke 2.5hp Outboard Engine Motor photo-2

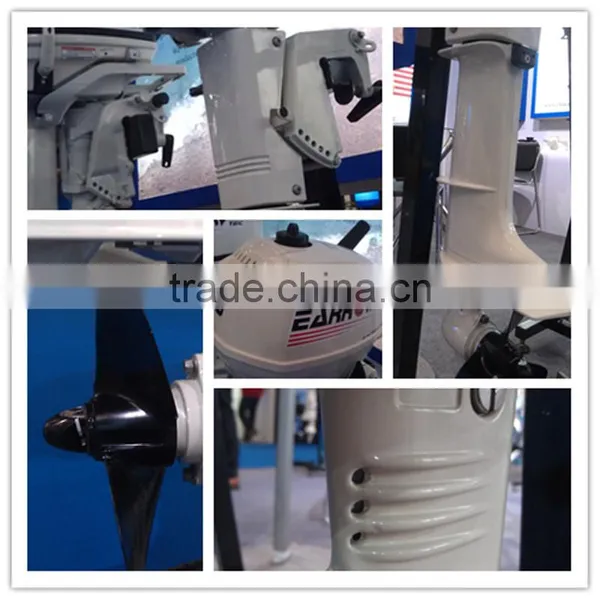

4 Stroke 2.5hp Outboard Engine Motor photo-3
4 Stroke 2.5hp Outboard Engine Motor photo-4
4 Stroke 2.5hp Outboard Engine Motor photo-5
4 Stroke 2.5hp Outboard Engine Motor photo-6
US$ 400 - 800 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
1 - 2L
Contact Supplier Request Quote Chat Now
Yongkang Longxiao Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 4 Stroke
Engine Capacity 1 - 2L
Fuel Type Gasoline
Cylinders 1
Engine Position Outboard
Dimensions (L x W x H) (mm) OL623*OW345*OH1021

WELCOME TO JOIN IN EARROW OUTBOARDS!
WE ARE LOOKING FOR DISTRIBUTORS ALL AROUND WORLD!
4 stroke 2.5hp outboard engine motor


 Advantages of  4 stroke 2.5hp outboard engine motor

1.Same with Johnson outboard motor standard parts surface treatment.

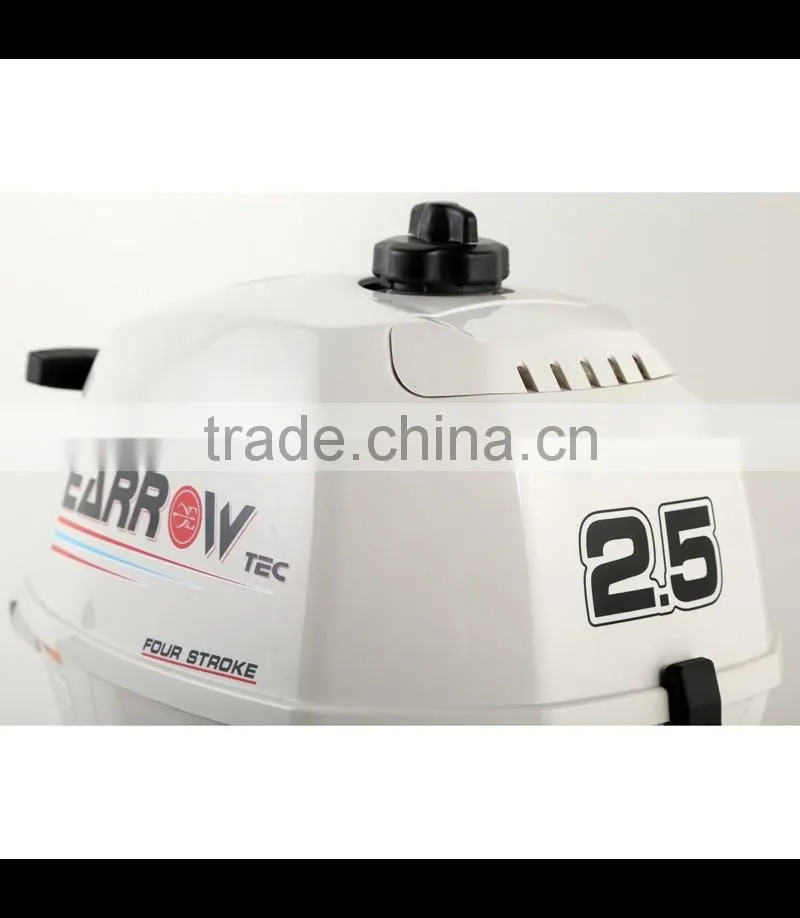

2.Top cover made by ABS, color made by one-step moudle instead of painting.
3.Body oil paint same with BMW.
4.Only EARROW offer the newest powerful 9.9HP/15HP/18HP 2 stroke similar with Yamaha New Enduro in China now!
5. Almost spare parts interchangeable with yamaha and made by our own factory

Product Description

Product:  4 stroke 2.5hp outboard engine motor

Type: 4-stroke, 2.5hp



Specification

Model F2.5A
Net Weight 17Kg
Full Throttle Operating Range 5250-5750 r/m
Maximum Output 1.8kw/2.5hp
Idling Speed 1900±100r/m
Type Four Stroke
Displacement 72cc
Bore*Stroke 54*31.5mm
Ignition System TCI
Spark Plug NGK BR7HS-10
Spark Plug Gap 0.6-0.7mm
Control System Tiller Handle
Starting System  Manual
Starting Carburation System Choke Valve
Gear Position Forward-Neutral
Gear Ratio 2.08 (27:13)
Trim and Tilt System Manual Tilt
Recommended Fuel Unleaded Gasoline
Gear Oil 0.075L
Fuel Tank Capacity 0.9L



 4 stroke 2.5hp outboard engine motor



4 stroke outboard engine Certification

CE/SGS/ISO 9001

 4 stroke 2.5hp outboard engine motor

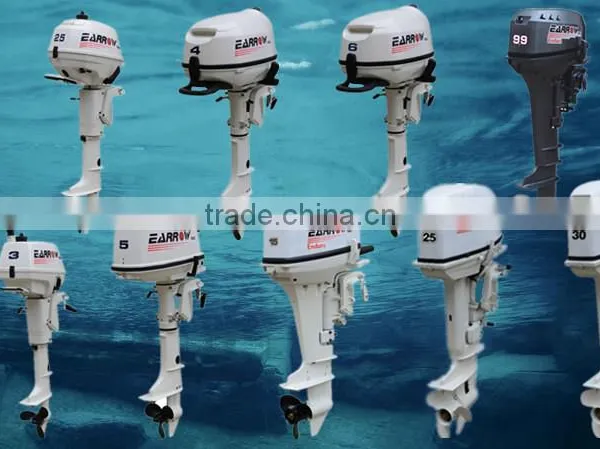

Product Series  of  4 stroke 2.5hp outboard engine motor pictures:

4 stroke 2.5hp outboard engine motor4 stroke 2.5hp outboard engine motor

4 stroke 2.5hp outboard engine motor

  4 stroke 2.5hp outboard engine motor


Our Services

 OEM service for 2.5hp 4 stroke outboard engine

2% free spare parts



Warranty

1 year for commercial usage;

3 years for pleasure;

 4 stroke 2.5hp outboard engine motor4 stroke 2.5hp outboard engine motor4 stroke 2.5hp outboard engine motor

Our advantage:



1,10 years outboards spare parts production experience,professional in process precision of die
casting metal parts and plastic parts.
Most die casting parts and plastic parts are made by our own production line, assure the quality
control



2,We have a special surface pretreatment production line, passivated surface made the parts & engine
more durable,anti corrosion,this technology learn from Evinrude BRP painting process.



3,Our main engineers used to work in previous BRP Chinese subsidiary plant,we learn from BRP
technology, our outboards are more quiet;



4, Color of top cover(3P/5P/6P) are one-step moulding technology instead of painting, more flexible
and more corrosion resisting;
Oil Painting(9.9-30P): brand PPG (same with Evinrude painting),5 layers paint & anti-corrosion paint,
won’t happen painting peel off within 2 years ;

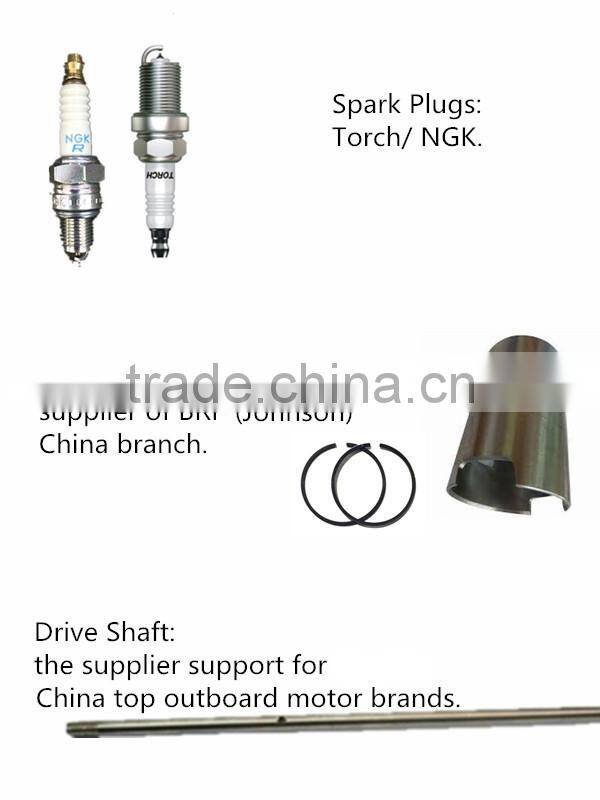

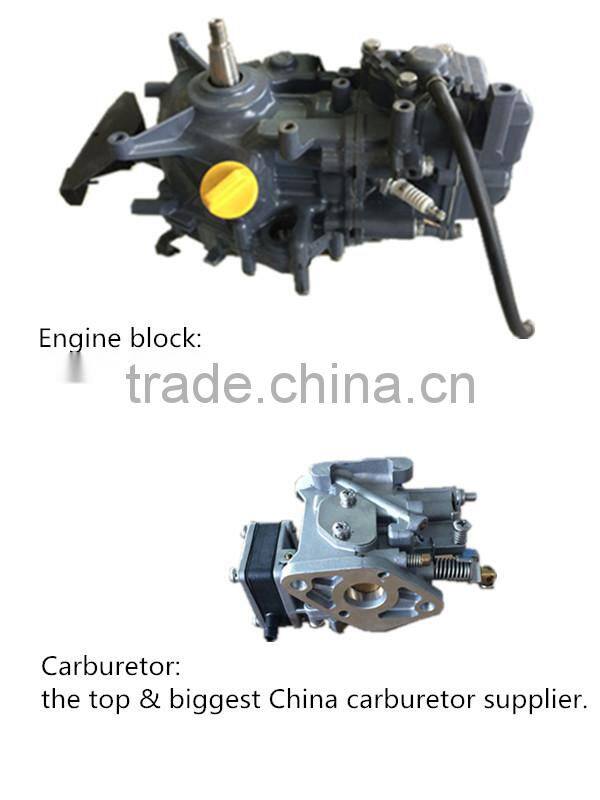

5,High quality spare parts inside engine used:
Cylinder Gaskets Taiwan parts: new gasket comes with glues,



Crankshaft & Intake valve&lower unit gears: Taiwan supplier, more qualified, Longer engine life .
Carburetor: TK Japan



All electric parts use high quality suppliers,same supplier with Honda.



6,Top cowling: ABS &PP material Ratio adjusted, better for noise reduction, more durable and
flexible.(will not broken even drop from second floor.)



7, 95% spare parts are compatable with Yamaha spare parts,easy for maintenance



8, Our 4 stroke 6HP four stroke is one cylinder; 15HP 2 stroke is Yamaha Enduro type, which is more
powerful,longer engine life.









Packaging & Shipping

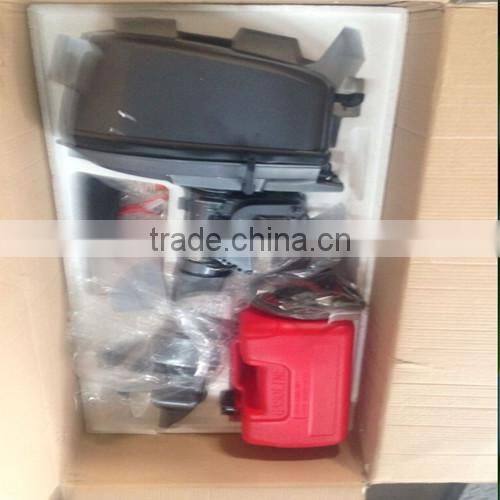

 Package of   4 stroke 2.5hp outboard engine motor

Standard export package, white PP form plus carton box;

 4 stroke 2.5hp outboard engine motor


Factory Equipments:

 4 stroke 2.5hp outboard engine motor

 4 stroke 2.5hp outboard engine motor





Customers Visit:

4 stroke 2.5hp outboard engine motor







Boat Shows:

4 stroke 2.5hp outboard engine motor



Work with Nonprofit Public Rescue Team:

4 stroke 2.5hp outboard engine motor







CONTACT us for more 4 stroke 2.5hp outboard engine motor information at:

Miss Dolly Xu :

Tel:86-571-85262936
Skype:dolly.xu89   whatsapp:+8615158046162
