US$ 350 - 450 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Engine:
2 Stroke
Engine Capacity:
1 - 2L
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Engine 2 Stroke
Engine Capacity 1 - 2L
Fuel Type Gasoline
Cylinders 1
Engine Position Outboard
Dimensions (L x W x H) (mm) OL628*OW289*OH (S)997,OH(L)1124
 gasoline engine 3hp
gasoline engine 3hp
Product Description

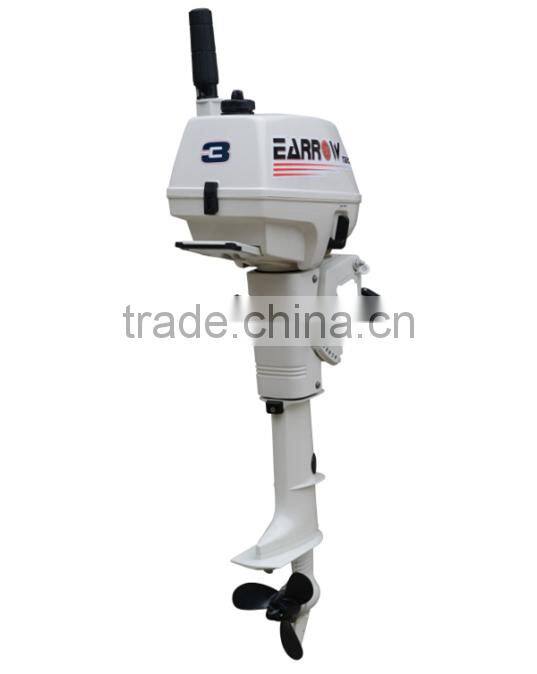

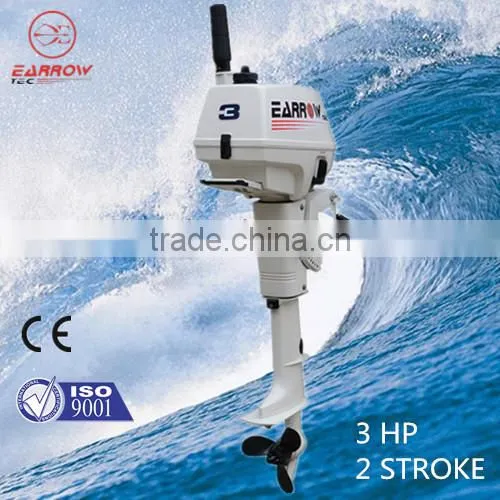

Product:Outboard Motor

Type:2-stroke, 3hp



Specification

Outboard Motor Model3A
Net WeightS:16.5Kg ; L: 17kg
Full Throttle Operating Range4500-5500 r/m
Maximum Output2.2kw/3hp
Idling Speed1200±50r/m
TypeTwo Stroke
Displacement70cc
Bore*Stroke46*42mm
Ignition SystemCDI
Spark PlugNGK BR7HS-10
Spark Plug Gap0.9-1.0mm
Control SystemTiller Handle
Starting System Manual
Starting Carburation SystemChoke Valve
Gear PositionForward-Neutral
Gear Ratio2.08 (27:13)
Trim and Tilt SystemManual Tilt
Recommended FuelUnleaded Gasoline
Gear Oil0.075L
Fuel Tank Capacity1.4L



 gasoline engine 3hp

Certification

CE/SGS/ISO 9001



gasoline engine 3hp



Advantages





1.  develop based on yamaha, production absorb Johnson technology.

2.  Key Parts from Germany/ Japan/ Taiwan.

Electric parts from Honda supplier.

3. The Oil Painting / spare parts surface treatment Johnson Standard.

4. Durable Top Cowling no broken even hit by Steel Bar.

5. ISO9001. All engines with SGS/  CE certification of Machinery Directive 2006/42/EC, EMC Directive 2004/108/EC Annex II.



Product Series

We have both 4 and 2 stroke series





gasoline engine 3hp






Our Services

OEM service

2% free spare parts

Warranty:2 years

gasoline engine 3hp

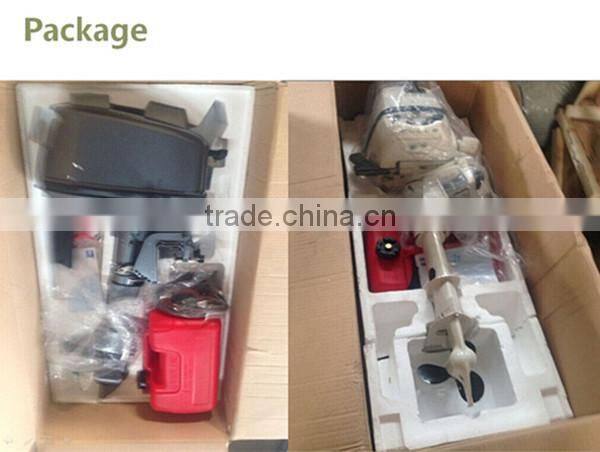

Packaging & Shipping

Package

Standard export package, white PP form plus carton box;



Logistic

The forwarder could be choose by you, we could provide some information of forwarders if you need.



Port of Load

Ningbo, our factory is located in Ningbo Zhejiang China, Very convenient  for delivery.

 gasoline engine 3hp

FAQ



gasoline engine 3hp


Company Information

We are Chinese professional outboard motor manufacturer. All our outboards are CE approval and our factory is ISO9001 qualified.

Our product range is from 2.5hp to 30hp,both two and four stroke are available.



Philosophy

Quality First, User-oriented Management, Dedication to customer services



R & D Team

OEM service available;

All of our key engineers came from the previous BRP outboard factory of China DG, with more than 10years' experience.



gasoline engine 3hp

gasoline engine 3hp

gasoline engine 3hp





Customer visit









gasoline engine 3hp







gasoline engine 3hpgasoline engine 3hpgasoline engine 3hp
