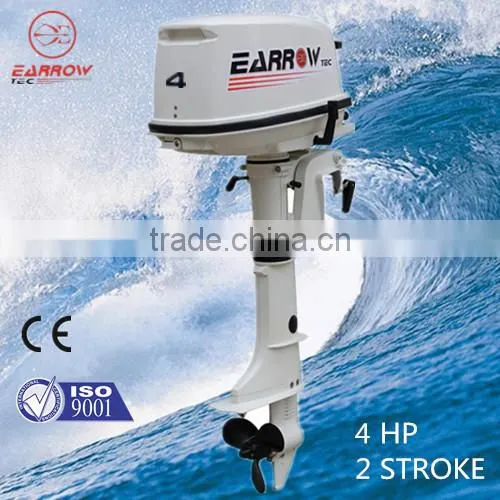

Product: yama engine
Type: 2-stroke, 4 hp
Specification
| Outboard Motor Model | 4C |
| Net Weight | S:20.5Kg ; L:21kg |
| Full Throttle Operating Range | 4500-5500 r/m |
| Maximum Output | 2.9kw/ 4 hp |
| Idling Speed | 1150±50r/m |
| Type | Two Stroke |
| Displacement | 103.0cc |
| Bore*Stroke | 54*45mm |
| Ignition System | CDI |
| Spark Plug | NGK BR7HS-10 |
| Spark Plug Gap | 0.6-0.7mm |
| Control System | Tiller Handle |
| Starting System | Manual |
| Starting Carburation System | Choke Valve |
| Gear Position | Forward-Neutral -Reverse |
| Gear Ratio | 2.08 (27:13) |
| Trim and Tilt System | Manual Tilt |
| Recommended Fuel | Unleaded Gasoline |
| Gear Oil | 0.1L |
| Fuel Tank Capacity | 2.8L 12L |
EARROW engine Difference with Others:
1. develop based on yamaha, production absorb Johnson technology.
2. Key Parts from Germany/ Japan/ Taiwan.
Electric parts from Honda supplier.
3. The Oil Painting / spare parts surface treatment Johnson Standard.
4. Durable Top Cowling no broken even hit by Steel Bar.
5. ISO9001. All engines with SGS/ CE certification of Machinery Directive 2006/42/EC, EMC Directive 2004/108/EC Annex II.
Certification
CE/SGS/ISO 9001
Product Series
Both 4 and 2 stroke series,
OEM service
2% free spare parts (meet the MOQ 10pcs)
Warranty: 2 years
Package
Standard export package, white PP form plus carton box;
Logistic
The forwarder could be choose by you, we could provide some information of forwarders if you need.
How long is EARROW company in outboards industry?
Our Earrow outboards factory started from 2012, for past two years, we mainly focus on product R&D and product endurable testing;
We also have separate production line for producing most die casting & plastic parts for outboards.
Which market you have distributor till now?
Main market is some Southeast Asia& South American, Africa and Australia market;
What’s your production ability per month/per year?
2000PCS each month, and 25000pcs/year
What kind of Certificate you have:
ISO9001 / CE certified/SGS;
How long you will test each engine before packing and shipment?
Half hour for testing before packaging.
The spare parts was made by yourself or purchased?
Some key parts buy from Taiwan and Japan,
all other plastic & aluminum parts (such as bottom cover, lower unit case, propeller, crankcase etc. are made by our own plant,assure our spare parts quality control and delivery time.
How about Warranty?
2.5 years warranty for leisure use & 1 year warranty for commercial use;
We supply 2% free wearing spare parts to distributor, to support their after sale service.
We are Chinese professional outboard motor manufacturer.
Philosophy
Quality First, User-oriented Management, Dedication to customer services
R & D Team
All of our key engineers came from the previous BRP outboard factory of China DG, with more than 20years' experience.
Customer visit
