2-stroke Outboard Motor Long Shaft 9.9hp 15hp

2-stroke Outboard Motor Long Shaft 9.9hp 15hp thumbnail-1
2-stroke Outboard Motor Long Shaft 9.9hp 15hp thumbnail-2
2-stroke Outboard Motor Long Shaft 9.9hp 15hp thumbnail-3
2-stroke Outboard Motor Long Shaft 9.9hp 15hp thumbnail-4
2-stroke Outboard Motor Long Shaft 9.9hp 15hp thumbnail-5
2-stroke Outboard Motor Long Shaft 9.9hp 15hp thumbnail-6
2-stroke Outboard Motor Long Shaft 9.9hp 15hp photo-1
2-stroke Outboard Motor Long Shaft 9.9hp 15hp photo-2
2-stroke Outboard Motor Long Shaft 9.9hp 15hp photo-3
2-stroke Outboard Motor Long Shaft 9.9hp 15hp photo-4
2-stroke Outboard Motor Long Shaft 9.9hp 15hp photo-5
2-stroke Outboard Motor Long Shaft 9.9hp 15hp photo-6
US$ 750 - 850 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Engine:
2 Stroke
Engine Capacity:
1 - 2L
Contact Supplier Request Quote Chat Now
Yongkang Longxiao Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 2 Stroke
Engine Capacity 1 - 2L
Fuel Type Gasoline
Cylinders 2
Engine Position Outboard
Dimensions (L x W x H) (mm) OL878*OW363*OH (S)1062,OH(L)1189

Product Description

Product:Outboard Engine For Sale

Type:2-stroke, 9.9hp

9.9HP is same series with 15HP 2 stroke,copy of Yamaha Enduro type, which is more powerful

 95% spare parts are compatable with Yamaha Spare parts, easy for maintenance



Specification



Outboard Motor Model TE9.9D
Net Weight S:38Kg ; L:40kg
Full Throttle Operating Range  4500-5500 r/m
Maximum Output 7.3kw/9.9hp
Idling Speed 1050±50r/m
Type Two Stroke
Displacement 246.0cc
Bore*Stroke 56*50mm
Ignition System CDI
Spark Plug NGK BR8HS-10
Spark Plug Gap 0.9-1.0mm
Control System Tiller Handle
Starting System  Manual
Starting Carburation System  Choke Valve
Gear Position Forward-Neutral-Reverse
Gear Ratio 2.08 (27:13)
Trim and Tilt System Manual Tilt
Recommended Fuel Unleaded Gasoline
Gear Oil 0.250L
Fuel Tank Capacity

 24L





2-stroke outboard motor long shaft 9.9hp 15hp

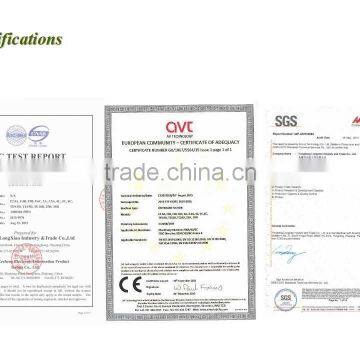

Certification

CE/SGS/ISO 9001



Advantages



1,Most die casting parts and plastic parts are made by our own factory, assure the quality control



2,We have a special surface pretreatment production line, passivated surface made the parts & engine more durable, anti corrosion;



3,Our main engineers used to work in previous BRP Chinese subsidiary plant, we learn from BRP technology, our outboards are more quiet;



4, Color of top cover are one-step moulding technology instead of painting, more flexible and more corrosion resisting;







Product Series

We have both 4 and 2 stroke series, 4 stroke propane engines

 2-stroke outboard motor long shaft 9.9hp 15hp



2-stroke outboard motor long shaft 9.9hp 15hp

2-stroke outboard motor long shaft 9.9hp 15hp



2-stroke outboard motor long shaft 9.9hp 15hp



High quality of our spare parts inside engine:

 2-stroke outboard motor long shaft 9.9hp 15hp

Cylinder Gaskets Taiwan parts:  new gasket comes with glues, no need to add glue during assembly. new gasket can be reuse for 2 or 3 times after disassemble.

Crankshaft & Intake valve:  Taiwan supplier, more qualified, Longer engine life .

Carburetor: TK Japan

Piston ring: Auto parts brand(Japan brand)

Bearing in Crankshaft :Koyo Brand Japan

Drive shaft:Taiwan brand more toughness

Bearings: NSK brand &Germany INA

Full sets of gears in lower unites: Taiwan parts

Full sets of electric parts:China top brand, same suppliers with Honda motors.

Our Services

 OEM service

2% free spare parts

Warranty:2 years



Packaging & Shipping

 Package

Standard export package, white PP form plus carton box;



Logistic

The forwarder could be choose by you, we could provide some information of forwarders if you need.







FAQ

Details

1.     production time: 20 workdays after payment and receive 30% deposit

2.     CE standard, FOB Ningbo

3.     MOQ: 2 units for sample

4.     Delivery time: sample 2-3 days, volume order 20 days

5.     Payment: T/T or L/C





Company Information

We are Chinese professional outboard motor manufacturer. All our outboards are CE approval and our factory is ISO9001 qualified.





Philosophy

Quality First, User-oriented Management, Dedication to customer services



R & D Team

OEM service available;

All of our key engineers came from the previous BRP outboard factory of China DG, with more than 15years' experience.



2-stroke outboard motor long shaft 9.9hp 15hp





Customer visit

2-stroke outboard motor long shaft 9.9hp 15hp



 African & South American&Russian customer visited Earrow outboards factory in Oct/NOV.2016

2-stroke outboard motor long shaft 9.9hp 15hp2-stroke outboard motor long shaft 9.9hp 15hp2-stroke outboard motor long shaft 9.9hp 15hp2-stroke outboard motor long shaft 9.9hp 15hp



EARROW Engine lN  Boat Shows



2-stroke outboard motor long shaft 9.9hp 15hp

 2-stroke outboard motor long shaft 9.9hp 15hp





EARROW outboards @ Sydney boat show in Aug.2016

 2-stroke outboard motor long shaft 9.9hp 15hp



For more information,please contact:



Orchid Lee

YongKang LongXiao Industry and Trade Co.,Ltd.

T/F:0086-571-85262936  M(Whatsapp):0086-13396587439

Skype:muzilan

www.jcoutboard.en.china.cn
