1.Our EARROW outboard compatible Yamaha
2.Johnson standard parts surface treatment
3. BMW car surface oil painting/PPG painting
4.ABS top cover more stable and the color in top cover made by one-step mould instead of painting.
Our Strength
1, 5 years spare parts production experience.Most die casting parts and plastic parts are made by our own factory, assure the quality control
2, Same surface treatment standard with BRP Johnson.
We have a special surface pretreatment production line, passivated surface made the parts & engine more durable, anti corrosion;
3, Main engineers used to work in previous BRP Chinese subsidiary plant, we learn from BRP technology, our outboards are more quiet;
4, Same oil paint with BMW car surface. Color of top cover are one-step moulding technology instead of painting, More flexible and more corrosion resisting;
5, 95% spare parts are compatable with Yamaha Spare parts, easy for maintenance
6, Only EARROW offer the newest powerful 9.9HP/ 2 stroke similar with Yamaha New Enduro in China now!
OEM service (Use your own brand name)
2% free wearing parts (meet the MOQ 10pcs)
Warranty: 3 years for liesure use, 1 year for commercial use.
NO NEED TO WORRY ABOUT LACK OF SPARE PARTS SUPPORT ANY MORE!
Almost spare parts made by our own factory, serious QC.
High Quality KEY PARTS purchased in famous factory who support for top brands!!

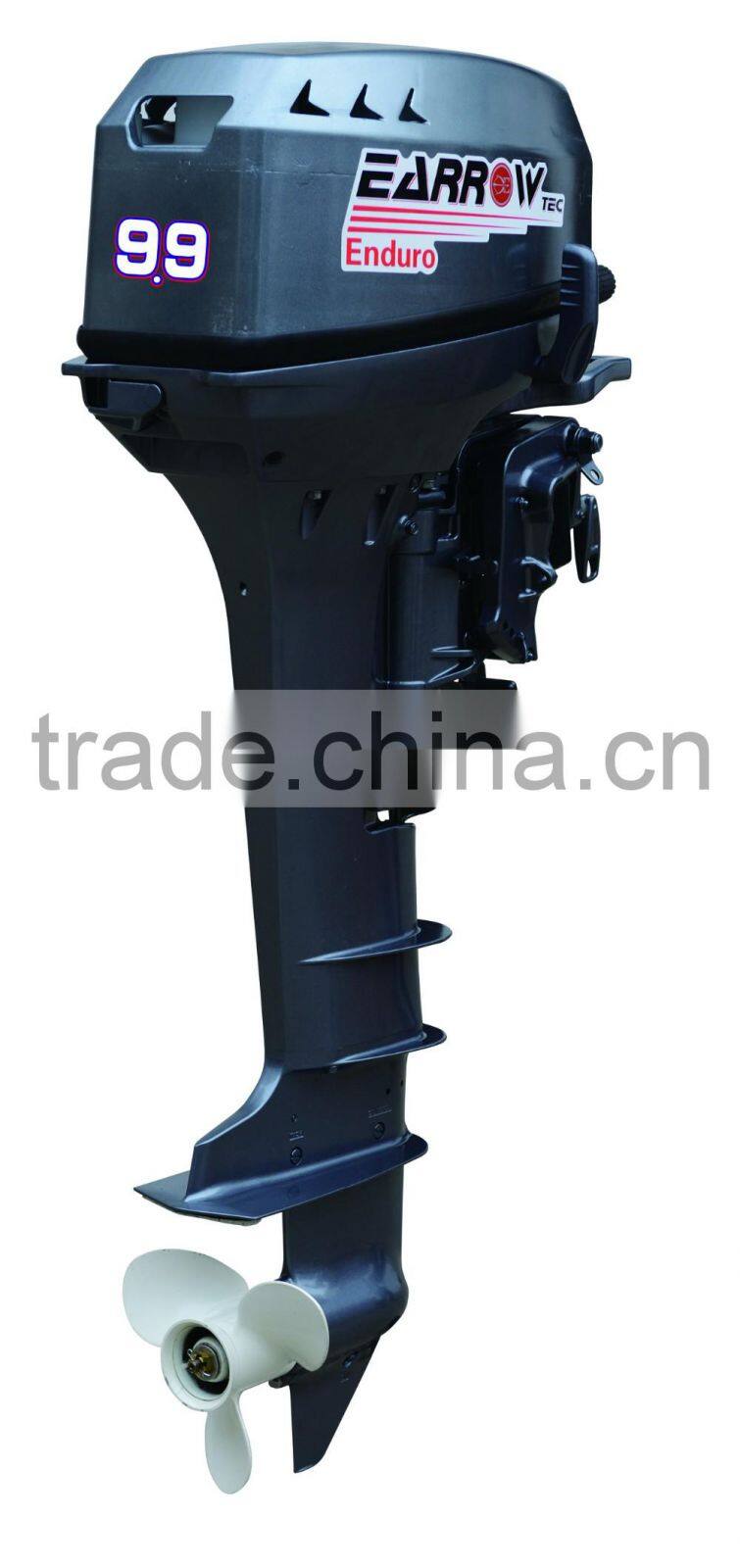

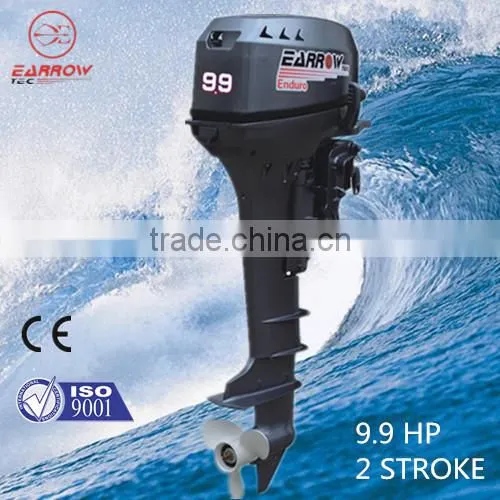

Product: Outboard Motor
Type: 2-stroke, 9.9hp
Specification
| Outboard Motor Model | TE9.9D |
| Net Weight | S:38Kg ; L:40kg |
| Full Throttle Operating Range | 4500-5500 r/m |
| Maximum Output | 7.3kw/9.9hp |
| Idling Speed | 1050±50r/m |
| Type | Two Stroke |
| Displacement | 246.0cc |
| Bore*Stroke | 56*50mm |
| Ignition System | CDI |
| Spark Plug | NGK BR8HS-10 |
| Spark Plug Gap | 0.9-1.0mm |
| Control System | Tiller Handle |
| Starting System | Manual |
| Starting Carburation System | Choke Valve |
| Gear Position | Forward-Neutral-Reverse |
| Gear Ratio | 2.08 (27:13) |
| Trim and Tilt System | Manual Tilt |
| Recommended Fuel | Unleaded Gasoline |
| Gear Oil | 0.250L |
| Fuel Tank Capacity | 24L |
Certification
CE/SGS/ISO 9001

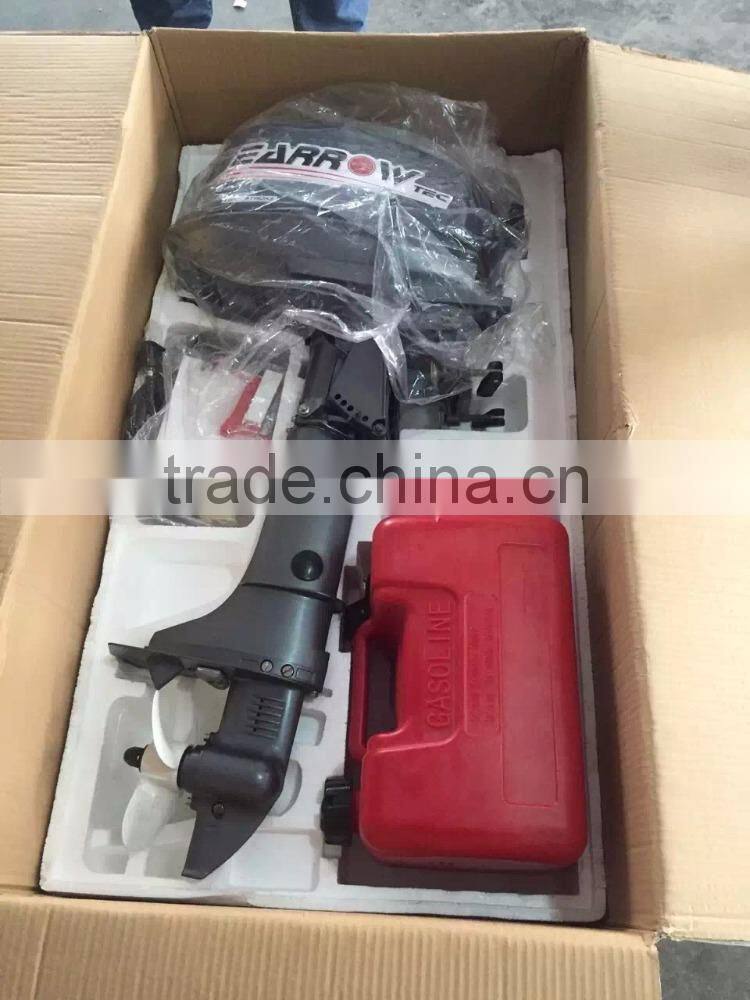

Package
Standard export package, white PP form plus carton box;
Logistic
The forwarder could be choose by you, we could provide some information of forwarders if you need.
How long is EARROW company in outboards industry?
Our Earrow outboards factory started from 2012, for past two years, we mainly focus on product R&D and product endurable testing;

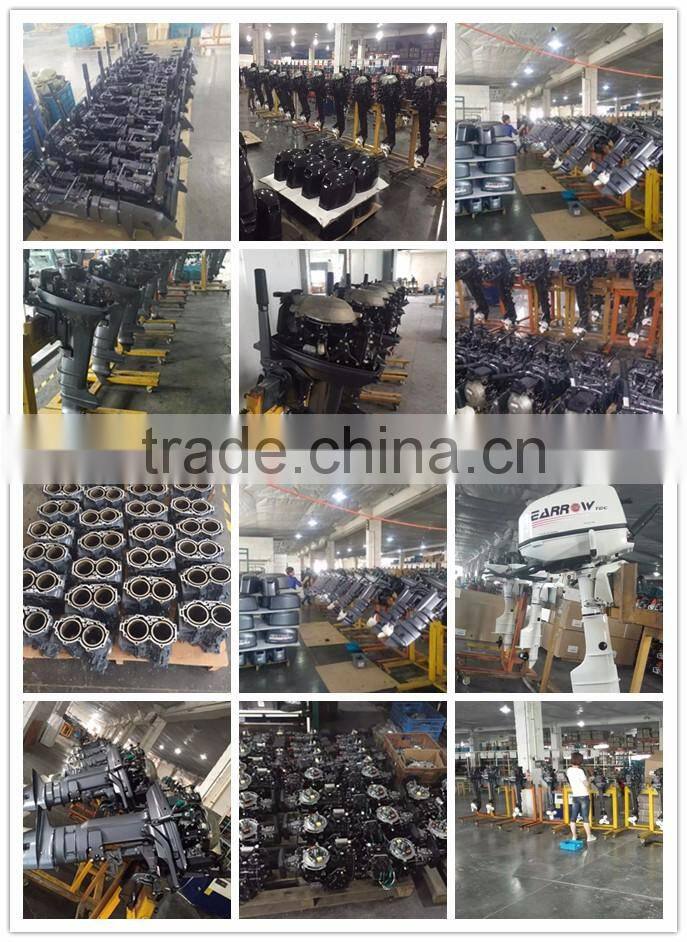

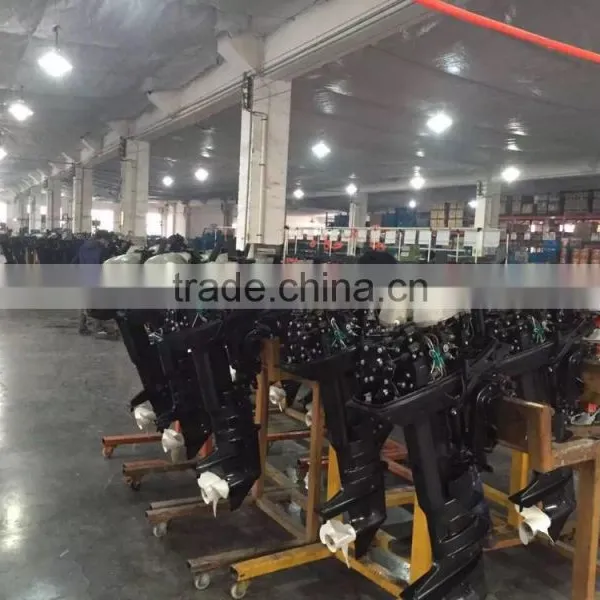

We also have separate production line for producing most die casting & plastic parts for outboards ,
Which market you have distributor till now?
Main market is some Southeast Asia& South American, Africa and Australia market;
What’s your production ability per month/per year?
2000PCS each month, and 25000pcs/ye

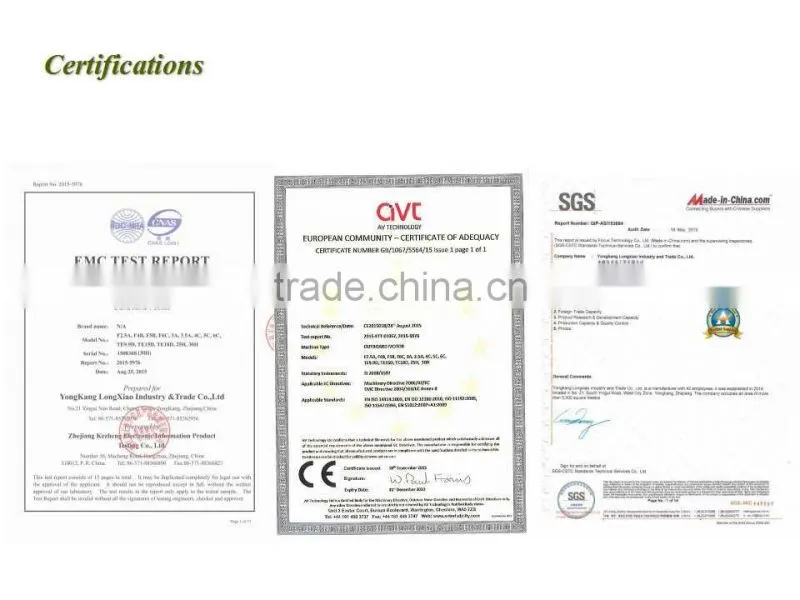

What kind of Certificate you have:
ISO9001 / CE certified/SGS;
How long you will test each engine before packing and shipment? rn
Half hour for testing before packaging.

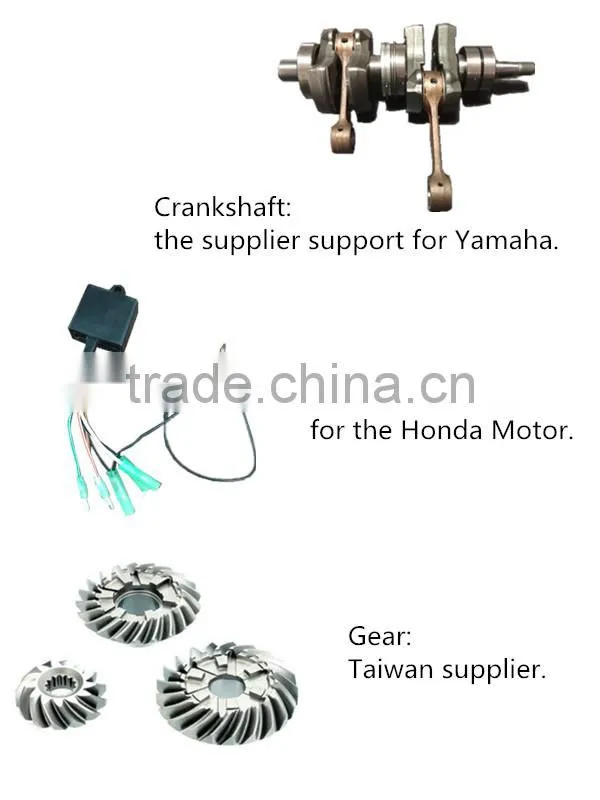

The spare parts was made by yourself or purchased?
Some key parts buy from Taiwan and Japan,
all other plastic & aluminum parts (such as bottom cover, lower unit case, propeller, crankcase etc. are made by our own plant,assure our spare parts quality control and delivery time.
How about Warranty?
2.5 years warranty for leisure use & 1 year warranty for commercial use;
We supply 2% free wearing spare parts to distributor, to support their after sale service.
Philosophy
Quality First, User-oriented Management, Dedication to customer serviceEARROW hidea 9.9hp outboard motor with sell
R & D Team
All of our key engineers came from the previous BRP outboard factory of China DG, with more than 10years' experience.
