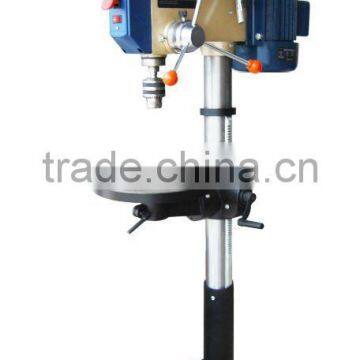

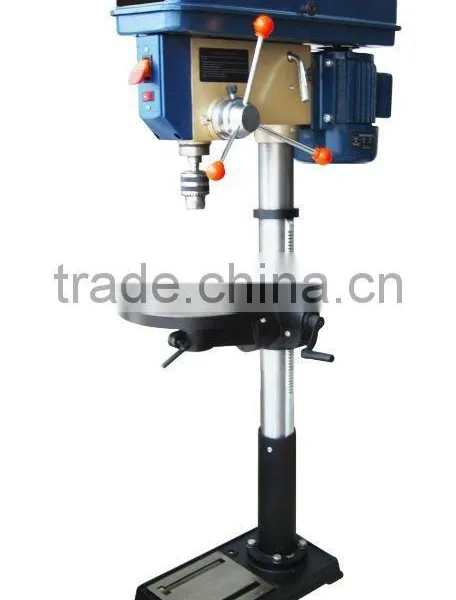

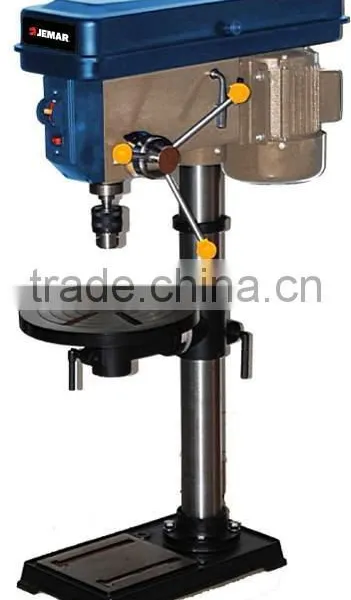

Help CenterJBD-16 Bench Drill Press
US$ 100 - 200
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
JEMAR
Model Number:
JBD16
Drill Type:
Drill Press
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JDP-16 Pedestal 16mm Drill PressUS$ 100 - 200MOQ: 100 Pieces -
JTS-1800 1800W 10" Industrial Sliding Table Saw for WoodworkingUS$ 300 - 500MOQ: 200 Pieces
-
12"/305mm Electric Disc SanderUS$ 50 - 100MOQ: 100 Pieces
-
JSC1600VL Woodworking Scroll Saw, Industrial Scroll Saw, Scroll Saw MahineUS$ 50 - 100MOQ: 100 Pieces
-
JCS356 14" ELECTRIC CUT OFF SAW, METAL CUTTING SAWUS$ 50 - 90MOQ: 200 Pieces
Brand Name
JEMAR
Model Number
JBD16
Drill Type
Drill Press
Application
wood, plastic, metal
Frequency
50Hz
Max. Drilling Diameter
16mm
No-Load Speed
215-3,130rpm
Rated Input Power
550W
Rated Voltage
230V
Weight
46kg
FEATURE:
• Powerful 550W induction motor with cast iron housing for long-lasting, smooth performance
• 16 speeds for optimum drilling performance in a variety of materials
• Adjustable locking depth stop for accurate depth measurement and repetitive drilling
• Built-in light for better visibility of work area
• Pivoting motor mount maintains correct belt tension and facilitates speed change
• Easy reach front positioned on/off switch including safety key
• 16mm drilling capacity for all large drilling applications
• Fully adjustable round table with angle indicator
• Cast iron base for added stability
• 16 speeds for optimum drilling performance in a variety of materials
• Adjustable locking depth stop for accurate depth measurement and repetitive drilling
• Built-in light for better visibility of work area
• Pivoting motor mount maintains correct belt tension and facilitates speed change
• Easy reach front positioned on/off switch including safety key
• 16mm drilling capacity for all large drilling applications
• Fully adjustable round table with angle indicator
• Cast iron base for added stability
SPECIFICATIONS:
| JBD-16 | JDP-16 | |
| Voltage: | 230V 50Hz | 230V 50Hz |
| Power input: | 550W | 550W |
| Max. drilling capacity: | 16mm | 16mm |
| Chuck capacity: | 3-16mm | 3-16mm |
| Spindle taper: | MT2 | MT2 |
| Speeds: | 215-3,130MIN-1 | 215-3,130MIN-1 |
| Swing: | 169mm | 169mm |
| Spindle travel: | 80mm | 80mm |
| Height: | 995mm | 1580mm |
| Distance-spindle to base: | 640mm | 1210mm |
| Max. distance-spindle to table: | 450mm | 775mm |
| Diameter of table: | 290mm | 290mm |
| Net weight: | 46.00kgs | 51.50kgs |
