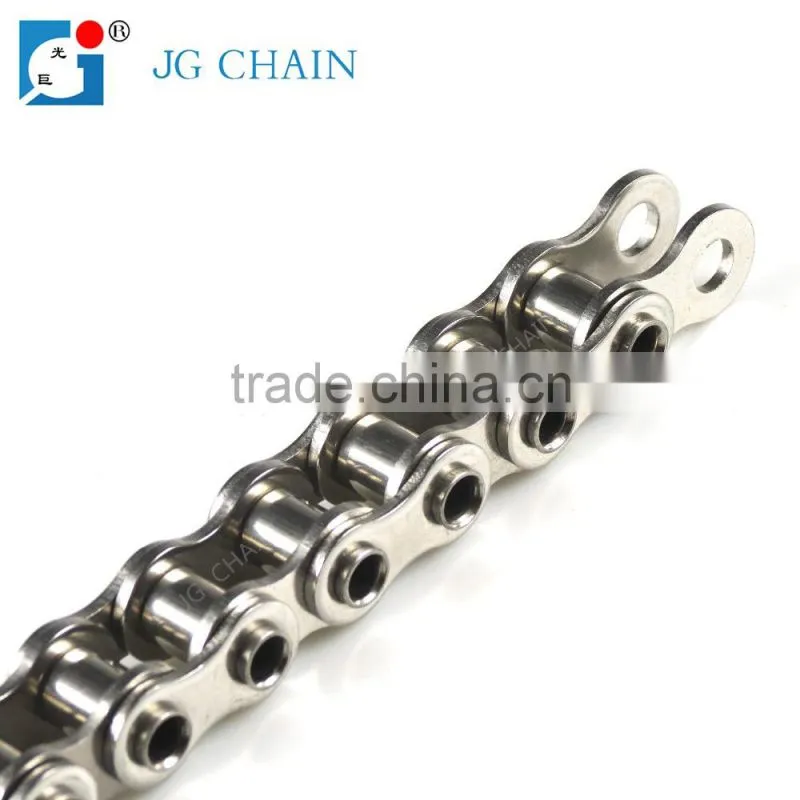

Stainless steel 304 conveyor roller hollow pin chain 40hp
Stainless steel 304 conveyor roller hollow pin chain 40hp
|
JG Chain N0. |
Pitch |
Bush diameter |
Width between inner plates |
Pin diameter
|
Pin length
|
Inner plate depth |
Plate thick ness |
Ultimate tensile strength |
Average tensile strength |

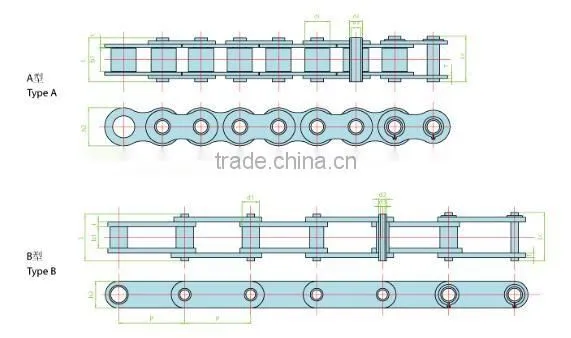

Type form |
||
| p | d1 | b1 | d2 | d3 | L | Lc | h2 | t/T | Q | Qo | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | ||
| 08BHPF | 12.7 | 8.51 | 7.75 | 6.55 | 4.50 | 16.4 | 17.6 | 11.8 | 1.6/1.3 | 6.66 | 7.26 | A |
| 40HP | 12.7 | 7.95 | 7.85 | 5.63 | 4.00 | 16.5 | 17.6 | 12.0 | 1.50 | 6.60 | 7.32 | A |
| 50HP | 15.875 | 10.16 | 9.40 | 7.03 | 5.13 | 20.7 | 21.9 | 15.09 | 2.03 | 12.0 | 13.56 | A |
| 60HP | 19.05 | 11.91 | 12.7 | 8.31 | 6.0 | 25.8 | 26.8 | 18.0 | 2.42 | 14.4 | 16.14 | A |
| 60HPF1 | 19.05 | 11.91 | 12.7 | 8.31 | 5.01 | 25.5 | 26.8 | 18.0 | 2.42 | 16.8 | 18.54 | A |
| 80HP | 25.4 | 15.88 | 15.75 | 11.40 | 8.05 | 32.5 | 33.8 | 24.0 | 3.25 | 30.0 | 34.98 | A |
| C2040HP | 25.4 | 7.95 | 7.85 | 5.63 | 4.0 | 16.5 | 17.6 | 12.0 | 1.5 | 6.60 | 7.56 | B |
| C2050HP | 31.75 | 10.16 | 9.4 | 7.22 | 5.12 | 20.5 | 21.8 | 15.0 | 2.03 | 12.24 | 13.68 | B |
| C2060HP | 38.1 | 11.91 | 12.7 | 8.31 | 6.0 | 25.8 | 26.8 | 17.0 | 2.42 | 14.4 | 16.26 | B |
| HP50F1 | 50.0 | 26.0 | 14.5 | 20.0 | 14.7 | 35.3 | 36.2 | 40.0 | 3.10 | 18.0 | 20.16 | B |
| C2080HP | 50.8 | 50.8 | 15.75 | 11.4 | 8.05 | 32.5 | 33.8 | 24.0 | 3.25 | 30.0 | 33.12 | B |
Stainless steel 304 conveyor roller hollow pin chain 40hp
Stainless steel 304 conveyor roller hollow pin chain 40hp
Stainless steel 304 conveyor roller hollow pin chain 40hp
Introduction of company
Business Type: Manufacture
Location: Zhuji, China mainland
Year Established: 1995
Company Certification: ISO 9001
Main Products: Leaf Chain, Automobile Chain, Silent Chain, Driving Chain, Conveyor Chain, Special Chain...
After sales service
1. We will be glad to supply you 24 hours service a day.
2. One year quality guarantee period under common environment for use, and defective item free of charge in one year.
3. Any response from our customers will be highly appreciated.
Certification
Q: How to establish the trust and know our quality?
A: Sample can be sent to clients for quality checking first.
A: Yes,we can do custom logos by molding. Need your Authorization Letter.
Q: What is your sample charge?
A: Length shorter than 20cm is free, express charge collected.
Q: How to visit factory?
A: Leave us a message, and we will pick you up by car for free.
Q: What is your mass products delivery time?
A: 15 days for 250,000 meters. Exact time should be according to the QTY.
