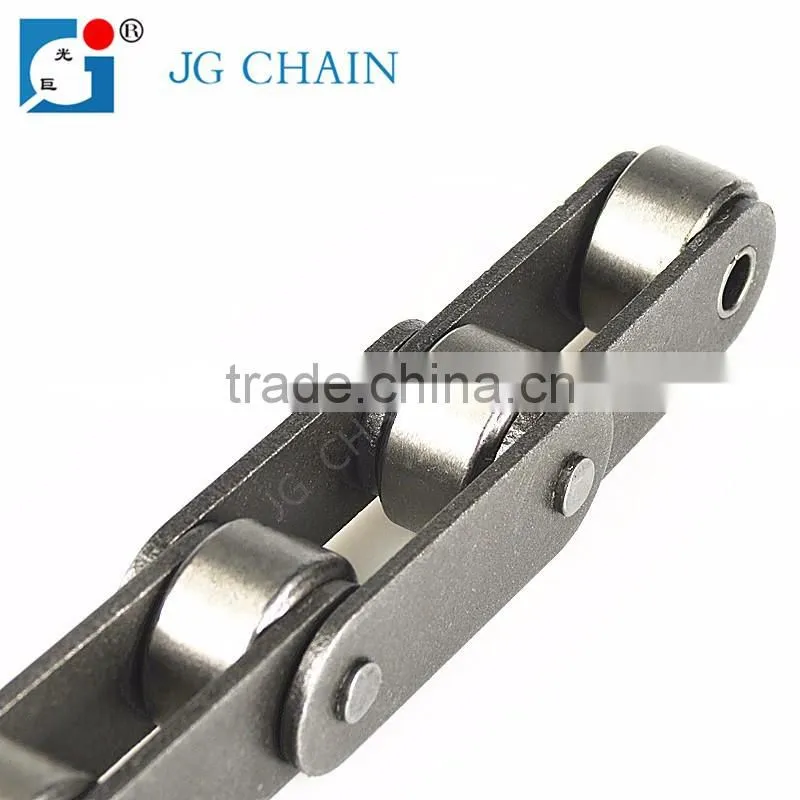

Large pitch stainless steel conveyor c2042ss chain
Large pitch stainless steel conveyor c2042ss chain
|
JG Chain N0.
|
Pitch |
Roller Diameter |
Width between inner plates |
Pin Diameter |
Pin length
|
Inner plate depth |
Plate thickness |
Ultimate tensile strength |
Average tensile strength |
||
| p | d1 | b1 | d2 | L | Lc | h2 | T | Q | Qo | ||
| mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | ||
|
C208A C208AL |
C2040 C2042 |
25.40 |
7.95 15.88 |
7.85 | 3.96 | 16.6 | 17.8 | 12.0 | 1.50 | 8.46 | 10.02 |
| C208AH | C2040H | 25.40 | 7.95 | 7.85 | 3.96 | 18.8 | 19.9 | 12.0 | 2.03 | 8.46 | 10.32 |
|
C208B C208BL |
25.40 |
8.51 15.88 |
7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.60 | 10.80 | 11.64 | |
|
C210A C210AL |
C2050 C2052 |
31.75 |
10.16 19.05 |
9.40 | 5.08 | 20.7 | 22.2 | 15.0 | 2.03 | 13.32 | 16.86 |
|
C212A C212AL |
C2060 C2062 |
38.10 |
11.91 22.23 |
12.57 | 5.94 | 25.9 | 27.7 | 18.0 | 2.42 | 19.08 | 22.08 |
|
C212AH C212AHL |
C2060H C2062H |
38.10 |
11.91 22.23 |
12.57 | 5.94 | 29.2 | 31.6 | 18.0 | 3.25 | 19.08 | 24.96 |
|
C216A C216AL |
C2080 C2082 |
50.80 |
15.88 28.58 |
15.75 | 7.92 | 32.7 | 36.5 | 24.0 | 3.25 | 34.02 | 39.42 |
|
C216AH C216AHL |
C2080H C2082H |
50.80 |
15.88 28.58 |
15.75 | 7.92 | 36.2 | 39.4 | 24.4 | 4.00 | 34.02 | 42.00 |
|
C220A C220AL |
C2100 C2102 |
63.50 |
19.05 39.67 |
18.90 | 9.53 | 40.4 | 44.7 | 30.0 | 4.00 | 53.10 | 61.56 |
|
C220AH C220AHL |
C2100H C2102H |
63.50 |
19.05 39.67 |
18.90 | 9.53 | 43.6 | 46.9 | 30.0 | 4.80 | 53.10 | 67.44 |
|
C224A C224AL |
C2120 C2122 |
76.20 |
22.23 44.45 |
25.22 | 11.10 | 50.3 | 54.3 | 35.7 | 4.80 | 76.20 | 88.38 |
|
C224AH C224AHL |
C2120H C2122H |
76.20 |
22.23 44.45 |
25.22 | 11.10 | 53.5 | 57.5 | 35.7 | 5.60 | 76.20 | 96.54 |
|
C232A C232AL |
C2160 C2162 |
101.60 |
28.58 57.15 |
31.75 | 14.27 | 64.8 | 69.6 | 47.8 | 6.40 | 136.08 | 167.34 |
|
C232AH C232AHL |
C2160H C2162H |
101.60 |
28.58 57.15 |
31.75 | 14.27 | 68.2 | 73.0 | 47.8 | 7.20 | 136.08 | 171.48 |
Large pitch stainless steel conveyor c2042ss chain
Large pitch stainless steel conveyor c2042ss chain
Introduction of company
Business Type: Manufacture
Location: Zhuji, China mainland
Year Established: 1995
Company Certification: ISO 9001
Main Products: Leaf Chain, Automobile Chain, Silent Chain, Driving Chain, Conveyor Chain, Special Chain...
After sales service
1. We will be glad to supply you 24 hours service a day.
2. One year quality guarantee period under common environment for use, and defective item free of charge in one year.
3. Any response from our customers will be highly appreciated.
Certification
Q: How to establish the trust and know our quality?
A: Sample can be sent to clients for quality checking first.
Q: What is your sample charge?
A: Length shorter than 20cm is free, express charge collected.
Q: How to visit factory?
A: Leave us a message, and we will pick you up by car for free.
Q: What is your mass products delivery time?
A: 15 days for 250,000 meters. Exact time should be according to the QTY.
