| Item name: | Durable Quality Double Pitch Hollow Pin Roller Chain Conveyors c2062 hp chain |
| Standard: | ANSI B29.1 M-2002 (DIN 3183) and ISO 606. |
| Material: | 304 Grade stainless steel |
| Chain Type: | Durable Quality Double Pitch Hollow Pin Roller Chain Conveyors c2062 hp chain |
| MOQ: | Small order can be accepted |
| Delivery Time: | Sample: Within 2-3days Production:15-20 days |
| Port of delivery: | Shanghai/Ningbo |
| Payment Terms: | T/T,L/C, Paypal ,Western Union, |
| Shipment: | A. Send by Express – Swift delivery ( 4-7 working days) and we can get you a special price Shippment:UPS,TNT ,DHL,Chian post,EMS,FedEx ,etc. |
| B. Send by Air: Arrive at destination Airport. | |
C. Ship by Sea: Low shipping cost and slow delivery (15-30 days depends). Suitable for large quantity and non-urgent delivery. | |
| Packing | Carton or wooden case, as your requirement |
| Supply Ability | 200,000 pcs per month |

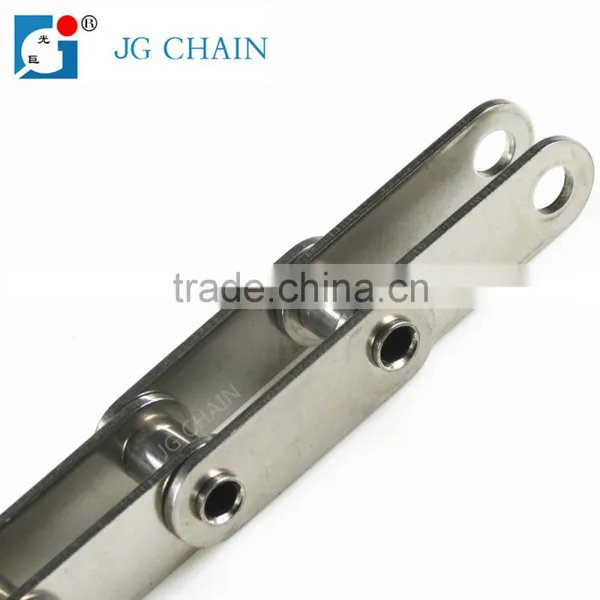

Product pictures :
Company orientation
Quality orientation: Above the average, mainly exported to USA, Europe, Asia etc.
Strictly according: ISO/ANSI/DIN standard.
Price orientation: Price-performance ratio is very high.
Why choose us?
1. We are manufacturer.
2. We have 21 years history in chain, sprocket, coupling field, and just focus on it, do about 8 years of export trading.
3. Its the scientific and technological small and medium enterprises of Zhejiang province.
4. Strong technology team and advanced equipment. (our manager was technical chief of chain general factory, at begin, there are only two factories in China before).
5. Short delivery time, equipment is advanced.
6. Price is just above the average in China, quality is strictly according to ISO/ANSI/DIN standard, so price-performance ratio is very high. Mainly exported to middle-high market.
7. Traffic is very easy, about 5 minutes drive distance from railway station and the exit of freeway.
8. We've got USD 55,000 trade assurance from , is the first batch of its members.
9. We accept T/T, D/P, D/A, O/A, L/C payment terms, for small order, paypal, western union are both ok.
10. OEM/ODM are both available.
| Chain No. | Pitch | Bush diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | ||
| P | d1 max | b1 min | d2 max | d3 max | L max | Lc max | h2 max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/LB | kN | kg/m | |
| 08BHPF | 12.700 | 8.51 | 7.75 | 6.55 | 4.50 | 16.40 | 17.60 | 11.80 | 1.6/1.3 | 11.1/2523 | 12.10 | 0.56 |
| 08BHPF5 | 12.700 | 8.51 | 7.75 | 6.30 | 4.50 | 16.80 | 18.00 | 12.00 | 1.60 | 9.6/2182 | 10.60 | 0.62 |
| 10BHPF3 | 15.875 | 10.16 | 9.65 | 7.02 | 5.13 | 19.50 | 20.50 | 14.70 | 1.70 | 10.0/2272 | 11.50 | 0.86 |
| 10BHPF4 | 15.875 | 10.16 | 9.50 | 7.20 | 5.00 | 19.80 | 21.30 | 14.00 | 2.03/1.6 | 12.5/2840 | 14.00 | 0.82 |
| 12BHPF2 | 19.050 | 12.07 | 11.68 | 8.09 | 6.00 | 22.70 | 23.90 | 16.10 | 1.85 | 14.0/3180 | 16.00 | 0.82 |
| 12BHPF3 | 19.050 | 12.07 | 11.70 | 8.22 | 5.75 | 23.60 | 24.90 | 16.20 | 2.42/1.85 | 16.0/3636 | 18.00 | 1.14 |
| 40HP | 12.700 | 7.95 | 7.85 | 5.63 | 4.00 | 16.50 | 17.60 | 12.00 | 1.50 | 11.0/2500 | 12.20 | 0.54 |
| 50HP | 15.875 | 10.16 | 9.40 | 7.03 | 5.13 | 20.70 | 21.90 | 15.09 | 2.03 | 20.0/4545 | 22.60 | 0.91 |
| 60HP | 19.050 | 11.91 | 12.70 | 8.31 | 6.00 | 25.80 | 26.80 | 18.00 | 2.42 | 24.0/5455 | 26.90 | 1.29 |
| 60HPF1 | 19.050 | 11.91 | 12.70 | 8.31 | 5.01 | 25.50 | 26.80 | 18.00 | 2.42 | 28.0/6364 | 30.90 | 1.37 |
| 80HP | 25.400 | 15.88 | 15.75 | 11.40 | 8.05 | 32.50 | 33.80 | 24.00 | 3.25 | 50.0/11364 | 52.00 | 2.26 |
| 80HPF2 | 25.400 | 15.88 | 15.75 | 11.40 | 8.40 | 32.50 | 33.80 | 24.00 | 3.25 | 45.0/10227 | 48.00 | 2.23 |
Introduction of company:
Business Type: Manufacture
Location: Zhuji, China mainland
Year Established: 1995
Company Certification: ISO 9001
Main Products: Roller Chain, Leaf Chain, Automobile Chain, Timing Chain, Driving Chain, Conveyor Chain, Chainsaw Chain, Guide Bar, Special Chain...
After sales service
1. We will be glad to supply you 24 hours service a day.
2. One year quality guarantee period under common environment for use, and defective item free of charge in one year. Durable Quality Double Pitch Hollow Pin Roller Chain Conveyors c2062 hp chain
3. Any response from our customers will be highly appreciated.
Certification:
Q:How to order with us ?
A:Pls. see buying guides below.
Q:Can you do custom logo on the chain?
A:Yes,we can do custom logos by molding. Need your Authorization Letter.
Q:What is your saw chain sample fee?
A:Free sample , clients pay the shipping fees.
Q:How to visit factory?
A:Leave us a message,and we will pick you up by car for free.
Q:What is your mass products delivery time?
A:30days for 200,000pcs.Exact time should be according to the QTY.
Please send your inquiry if you need our products,Thanks!
Durable Quality Double Pitch Hollow Pin Roller Chain Conveyors c2062 hp chain
