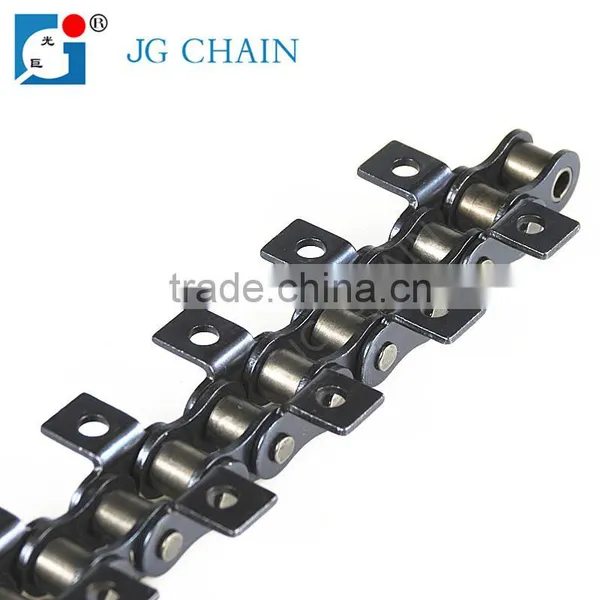

Help Center08B China Machine Chain Heat Treatment Conveyor Roller Chain With k1 Attachments
Related Products
-
C2062 Large Roller Type Double Pitch Replace Rexnord Conveyor ChainUS$ 3.06 - 3.69MOQ: 10 Meters -
Durable Quality M Series Long Pitch P125.4 Conveyor ChainUS$ 5.21 - 6.52MOQ: 10 Meters
-
High Quality Carbon Steel 08B China Oem Manufacturer Extended Pin Conveyor ChainUS$ 2 - 3MOQ: 1 Meter
-
Precision Industry Chain 08b-1 With Extended Pin Chain ConveyorUS$ 2 - 3MOQ: 1 Meter
-
P63.5 Carbon Steel Chain Industrial Chain Conveyor Chain for Tobacco IndustryUS$ 20 - 30MOQ: 1 Meter
Company orientation
Quality orientation: Above the average, mainly exported to USA, Europe, Asia etc.
Strictly according: ISO/ANSI/DIN standard.
Price orientation: Price-performance ratio is very high.
Why choose us?
1. We are manufacturer. 08B-1-K1 trolley conveyor chain
2. We have 21 years history in chain, sprocket, coupling field, and just focus on it, do about 8 years of export trading.
gained the certificate of TUV GERMANY.
3. Its the scientific and technological small and medium enterprises of Zhejiang province.
4. Strong technology team and advanced equipment. (our manager was technical chief of chain general factory, at begin, there are only two factories in China before).
5. Short delivery time, equipment is advanced. 08B-1-K1 trolley conveyor chain
6. Price is just above the average in China, quality is strictly according to ISO/ANSI/DIN standard, so price-performance ratio is very high. Mainly exported to middle-high market.
7. Traffic is very easy, about 5 minutes drive distance from railway station and the exit of freeway.
8. We've got USD 55,000 trade assurance from , is the first batch of its members.
9. We accept T/T, D/P, D/A, O/A, L/C payment terms, for small order, paypal, western union are both ok.
10. OEM/ODM are both available. heat treatme
nt conveyor roller chain with k1 attachments
DIN/ISO Chain NO. | Pitch | Roller diameter | Width Between Innerplates | Pin diameter | Pin length | Inner Plate depth | Plate Thick-ness | Ultimate Tensile strength | |
| P
| d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/LB |
04B-1 | 6.000 | 4.00 | 2.80 | 1.85 | 6.80 | 7.8 | 5.0 | 0.60 | 3.0/682 |
05B-1 | 8.000 | 5.00 | 3.00 | 2.31 | 8.20 | 8.9 | 7.10 | 0.80 | 5.0/1136 |
06B-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.1 | 8.20 | 1.30 | 9.0/2045 |
08B-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.2 | 11.80 | 1.60 | 18.0/4091 |
10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.50 | 20.9 | 14.70 | 1.70 | 22.4/5091 |
12B-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.50 | 24.2 | 16.00 | 1.85 | 29.0/6591 |
16B-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.10 | 37.4 | 21.00 | 4.15/3.1 | 60.0/13636 |
20B-1 | 31.750 | 19.05 | 19.56 | 10.19 | 41.30 | 45,0 | 26.40 | 4.5/3.5 | 95.0/21591 |
24B-1 | 38.100 | 25.40 | 25.40 | 14.63 | 53.40 | 57.8 | 33.20 | 6.0/4.8 | 160.0/36364 |
28B-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.10 | 69.5 | 36.70 | 7.5/6.0 | 200.0/45455 |
32B-1 | 50.800 | 29.21 | 30.99 | 17.81 | 66.00 | 71.0 | 42.00 | 7.0/6.0 | 250.0/56818 |
40B-1 | 63.500 | 39.37 | 38.10 | 22.89 | 82.20 | 89.2 | 52.96 | 8.5/8.0 | 355.0/80682 |
48B-1 | 76.200 | 48.26 | 45.72 | 29.24 | 99.10 | 107.0 | 63.80 | 12.0/10.0 | 560.0/127272 |
56B-1 | 88.900 | 53.98 | 53.34 | 34.32 | 114.6 | 123.0 | 77.80 | 13.5/12.0 | 850.0/193180 |
64B-1 | 101.60 | 63.50 | 60.96 | 39.40 | 130.0 | 138.5 | 90.17 | 15.0/13.0 | 112.0/254544 |
72B-1 | 114.30 | 72.39 | 68.58 | 44.48 | 147.4 | 156.4 | 103.60 | 17.0/15.0 | 1400.0/318180 |
heat treatment conveyor roller chain with k1 attachments
heat treatment conveyor roller chain with k1 attachments
Introduction of company:
Business Type: Manufacture
Location: Zhuji, China mainland
Year Established: 1995
Company Certification: ISO 9001 China Roller Chain with K1Attachment Trolley Conveyor Chain
Main Products: Roller Chain, Leaf Chain, Automobile Chain, Timing Chain, Driving Chain, Conveyor Chain, Chainsaw Chain, Guide Bar, Special Chain...
After sales service
1. We will be glad to supply you 24 hours service a day.
2. One year quality guarantee period under common environment for use, and defective item free of charge in one year. 08B-1-K1 trolley conveyor chain
3. Any response from our customers will be highly appreciated.
Certification:
Q:How to order with us ?
A:Pls. see buying guides below.
Q:Can you do custom logo on the chain?
A:Yes,we can do custom logos by molding. Need your Authorization Letter.
Q:What is your saw chain sample fee?
A:Free sample , clients pay the shipping fees.
Q:How to visit factory?
A:Leave us a message,and we will pick you up by car for free.
Q:What is your mass products delivery time?
A:30days for 200,000pcs.Exact time should be according to the QTY.
Please send your inquiry if you need our products,Thanks!
China Roller Chain with K1Attachment Trolley Conveyor Chain
