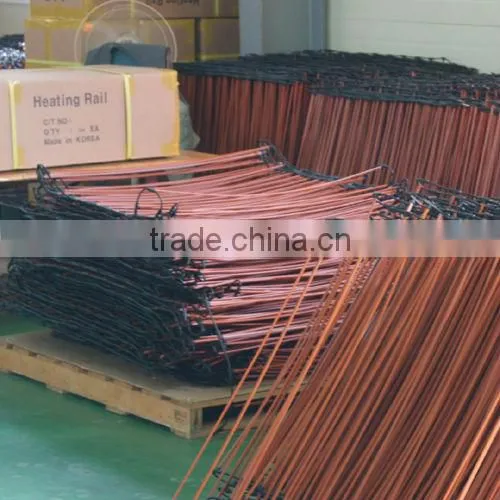

Far Infrared Ray High Efficiency Floor Heating (Energy Saving, PTC) Heating Rail(Ladder Shape Heating Cable)

General Information

"Heating Rail" is the unique brand which is registered by G Touch Co., Ltd.

So, all rights of trademark "Heating Rail" are reserved by G Touch Co., Ltd.

The Introduction of Manufacturer

G Touch Co., Ltd. is the Korean electric under-floor heating material manufacturer. They developed very

unique heating rail withtheir outstanding technologies through over 7 consecutive years of researches.

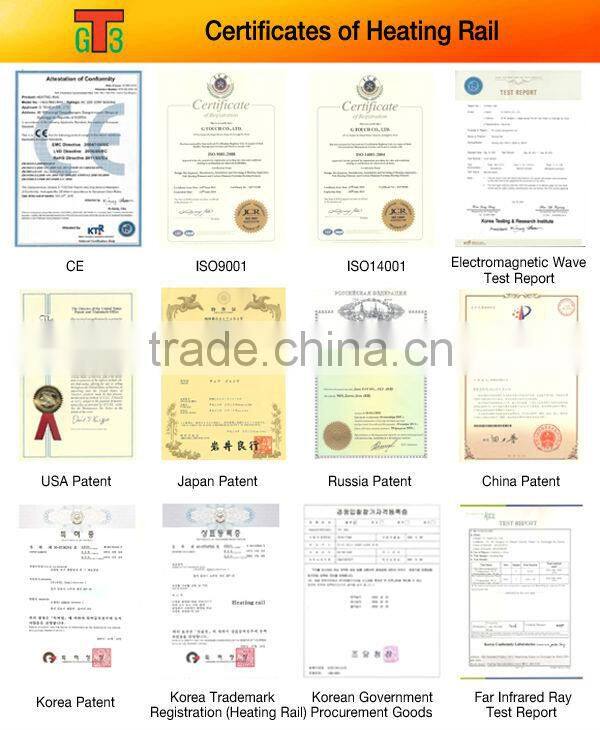

Heating rail not only acquired various patents in USA, Japan, Russia, China and Korea but also was selected as superior Korean government procurement goods. So, they have been providing heating rail to Korean government and Korea military organizations since 2009.

Heating rail applied advanced nanotechnology ‘PTC’, which shows high energy efficiency and safety.

Moreover, heating rail uses double insulation electric wire therefore it gives good solution about waterproof – which is the main problem of previous under-floor heating materials.

Heating rail is easy to install and emits far infrared ray. Furthermore it doesn’tnearly cause electromagnetic wave because it uses carbon compound.

Heating rail certainly contributes more economical, safer, healthier and better heating environment to consumers.

Electric Heating and Export Specialist e-PRO Trade Co.,

First of all, I am very pleased to have the chance to introduce our company e-PRO Trade Co., - Korean specialist of electric heating materials and export.

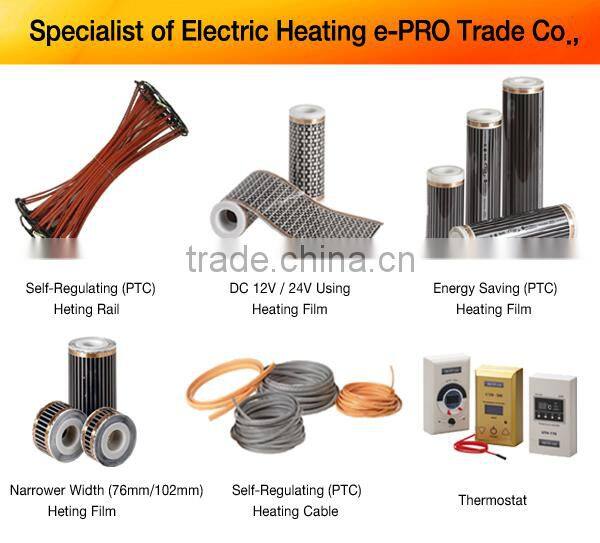

There are many companies that make and export their electric heating materials such as; heating film, PTC heating cables, PTC heating rail in the world. They insist that their products have the best quality and excellent heating efficiency. But, electric heating materials are not so easy materials to make, because if there is a problem in electric heating materials, it is possible to cause fire or electric leakage.
Our e-PRO trade Co., has been exporting to 20 countries around the world since its establishment such as USA, Japan, France, Canada, Italy, Sweden, Finland, Russia, Romania, Slovakia, Turkey, Finland, etc.

In addition, our company developed DC 12V, 24V products based on the accumulated technologies and energy-saving (PTC) heating film in 2010.  Moreover, we have been fabricating and exporting the narrowest 76mm, 102mm, 152m heating film in accordance with the U.S. specifications since 2012.

Nowadays, e-PRO trade co., is collaborating with Self-regulating heating cable manufacturer –E&S tech Co., Ltd and self-regulating heating manufacturer – G Touch Co., Ltd. Their products were recognized for excellence in quality and technology through being designated as Korean best procurement products.

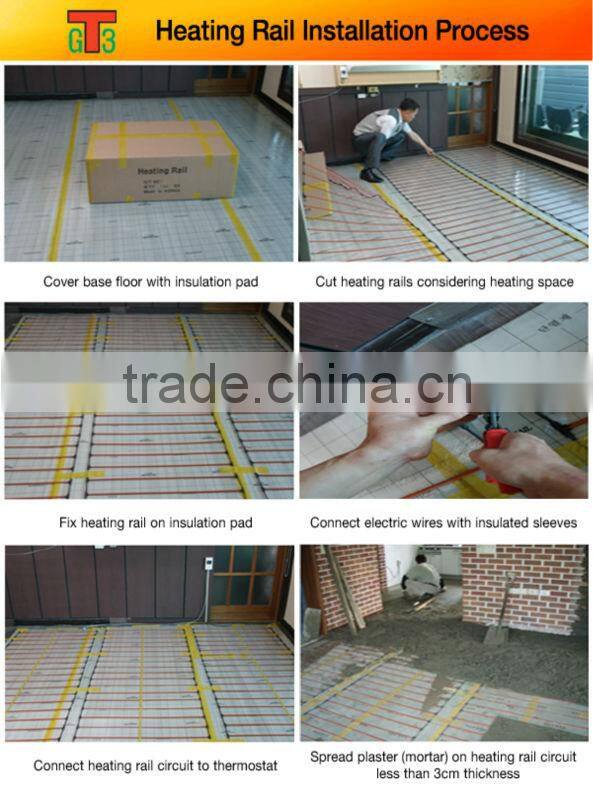

Our company is installing our handling electric heating materials in various construction sites directly.

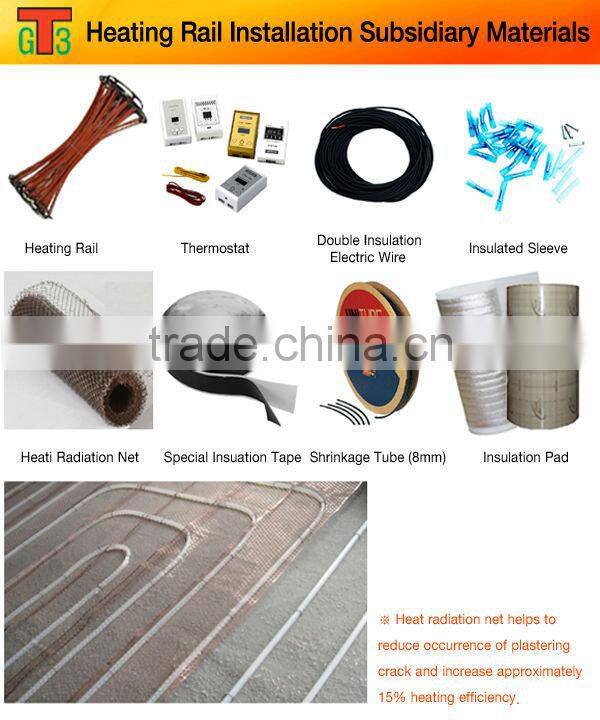

So, we are able to recommend you suitable installing methods and installation subsidiary materials on the basis of the knowledge gained from the construction.

Are you interested in the business of electric heating materials?

Then, Please consult with our e-PRO trade Co.,
We will strive hard to make your business succeed.

What is PTC(Positive Temperature Coefficient)?

PTC(Positive Temperature Coefficient) characteristic was discovered by American doctor Herman in 1950’s. It is the phenomenon that the calorific power decreases by a certain proportion mechanically despite the increasing ambient temperature.

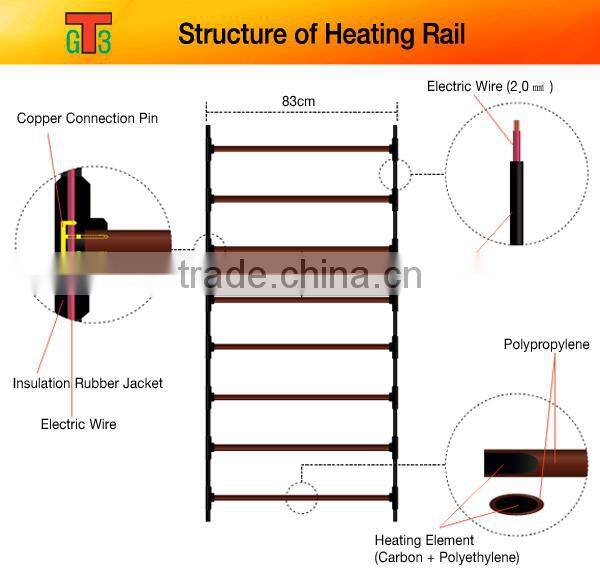

PTC heating rail does not use any metallic heating elements like Nickel-Chrome line, But it is made of nano-compound which is made of mixture of carbon - conductive materials and polyethylene resins have a characteristic that is easily inflated and shrunken by heat.

So, when the temperature increases in one area of heating rail, the polyethylene resins inflate. It causes increase of electric resistance of heating rail, so electricity consumption decreases.
In addition to that, it is very effective to prevent partial overheating. In case of heating rail, it can’t generate over 70 Celsius degree.

Heating rail generates more heat when the temperature is low, whereas, it produces less heat in hot temperature. Therefore, it is not only safe and but also consumes less electricity (energy saving effect).

The temperatures of a room can be various depending onits circumstance due to differences of lightening, humidity and insulation. But, the PTC effect of heating rail means that every section of heating rail acts as its own thermostat. So every part of the floor is always maintained at the even temperature with the minimum use of energy. Such an intelligent function makes heating rail the most efficient electrical heating system.

Specifications of Heating Rail

Superiority of Heating Rail Heating System

Maintenance Cost-Saving Heating System

It is perfect for areas with children, senior citizens or patients.
