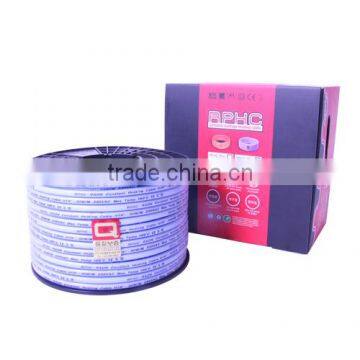

[Raon] Spydereco electric heating element pipe freezing protection (heat tracing) heating cable RPHC-15W(Possible to Cut)
- 50000 Meter / Meters per Month
- Busan Port or Incheon Airport
- T/T Credit Card PayPal
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
- XTW CXWT 300V UL62 PVC FIexible Cord
- Enameled Copper wire
- 3x185mm2 Overhead Insulated Cable
- Service Drop Cable XLPE/PVC/PE Insulated
Product Details
Place of Origin: | Gyeonggi-do, South Korea | Brand Name: | RAON Spydereco | Model Number: | RPHC-30W |
Type: | Insulated | Application: | Other, Pipe Heating | Conductor Material: | Copper Clad Steel |
Conductor Type: | Stranded | Insulation Material: | Fiberglass |
Product Description
General Information
HS Code | 8516.80.0000 |
Order Unit | 1 roll |
Minimum Order Quantity | 30~50rolls (Heat Tracing & Snow Melting Heating Cable / Mat : 10rolls) |
Daily Producing Capacity | 500rolls |
Certificates | CE, Russian CU(EAC), KC, Q Mark |
Warranty Period | 10 Years After Purchasing |
Payment Methods | T/T, Irrevocable L/C, Western Union, Moneygram, Paypal |
Basic Price Terms | F.O.B. Busan Port / Incheon Airport, Korea |
Shipment Period | Shipment will be completed within 10 days After Balance Payment |
Departing Port | Busan Port or Incheon Port (Ocean Freight ) Incheon Airport (Air Freight) |
Introdution of Raon System Corporation
No.1 Electric Heating System Manufacturer
The No.1 Manufacturer of highly efficient heating system!
Raon System Corporation!
Our company - Raon System Corporation - was established in 1998 as a specialized manufacturer of electric heating products.
Our company - Raon System Corporation – is the leading company which has the best technique based on the accumulated long production experience and continuous R & D.
In addition, we developed the cutting-edge production facilities. On the basis of such the latest facilities, we are manufacturing almost full range of electric heating cables, such as ; floor heating cable, floor heating mat, snow-melting cable and mat, deicing cable, pipe tracing cable, green house cables, etc
We registered 7 patents and 4 utility models. As well as we acquired various international certificates like ISO9001, CE, Russian U, Korea Electric Safety KC and Q mark(quality certificat
Our heating cable is easy and quick to install. As well as it realizes rapid and even heating effect and is the eco-friendly product without electromagnetic waves. Moreover, we always uses highest quality raw materials for production, so it has long product span and safe.
Furthermore, we developed constant-temperature heating cable “Spydereco” which is possible to compose the circuit through cutting following the installation space shape for the first in the world. It overcomes the weakness of usual constant-temperature heating cable which is not possible to cut.
Actually, our heating cables are exporting to more than 20 countries including China, Japan, UK, Canada, Switzerland, Mexico, Russia, Uzbekistan and Kazakhstan etc…
Raon means “fun” in pure Korean word, which expresses our desire to make the world where everyone lives a pleasant life.
We will continuously strive to lead the development of safer and more convenient products with differentiated technology.
Are you interested in electric heating cables?
Please consult with our Raon System Corporation.
Raon System Corporation will become the most stable and reliable business partner to you.
Specifications of Raon System Corporation Heating Cables
Usage | Floor Heating | Snow-Melting | Freezing Protection for Pipe | ||||||
Model No. | RPHC-30W | RFHC-18W | RFHM-D3.5-15W | RFHC-SP-25W / RFHC-SP-C25W | RSMC-C | RSMC-A | RPHC-15W | RPHC-30W | RPHC-50W |
Conductors Design | Double Conductors | Triple twisted Conductors | Triple twisted Conductors | Copper Bus Wire : 1.25mm2 x 2 | Single Multi Conductor | ||||
Using Voltage | 220V (Vmax: 240V) | 380V or 220V | 220V (Vmax: 240V) | ||||||
Normal Power Output | 30W/m (at 10℃ in Air) | 18W/m (at 10℃ in Air) | 15W/m (at 10℃ in Air) | 25W/m (at 10℃ in Air) | 35W/m (at 10℃ in Air) | 15W/m (at 10℃ in Air) | 30W/m (at 10℃ in Air) | 50W/m (at 10℃ in Air) | |
Max. Maintenance Temperature | 95℃ (at 20℃ in Air) | 65℃ (at 20℃ in Air) | 65℃ (at 20℃ in Air) | 60~70℃ (at 20℃ in Air) | 95℃ (at 20℃ in Air) | 50℃ (at 20℃ in Air) | 85℃ (at 20℃ in Air) | 120℃ (at 20℃ in Air) | |
Max. Exposure Temperature | 125℃ | 120℃ | 105℃ | 120℃ | 150℃ | 150℃ | 150℃ | ||
Diameter | 7mm | 6mm | 3.5mm | 8.5mm x 6.5mm | 7mm | 4mm x 7mm | 5mm x 9mm | 7mm x 13mm | |
Applicable Standards | IEC 800-30 | ||||||||
Certificates | CE, Q, CU(EAC), KC | ||||||||
Cable Using Length | Min: 3M / Max: 100M |
OEM product Manufacturing
We are able to produce OEM products and its minimum order quantity is 5,000 meters per order.
Possible to print the Buyers Brand.
Possible to adjust electricity consumption following the usage
Possible to make heating cable for special electric voltage (AC 380voltage ~ 450voltage) and for D.C. (12 voltage, 24voltage and 48voltage), etc.
Features of Raon System Corporation Heating Cable
Heating System which is free of electromagnetic waves
Heating Cables of Raon Sysem Corporation are an eco-friendly products which are harmless to human body through devising electromagnetic wave shielding structure.
Long Life Span( More Than 30 Years)
Heating Cables of Raon Sysem Corporation use insulation jacket of superior materials like PTFE fluorine resin and have been drastically enforced insulation and physical strength of products through using 2~3 outer jackets.
Heating Cables of Raon Sysem Corporation enlarge the life span by increasing the length of heating element per meter to 2 ~ 3 times and minimizing the overheating stress.
High Efficiency Heating System
Heating Cables of Raon Sysem Corporation are possible to heat up quickly by electric energy. Heating Cables of Raon Sysem Corporation are high efficiency energy products which are possible to preserve heat in mortar layer
Radiant Heating System
Heating system which is possible to heat up the indoor air when floor is sufficiently heated
Healthy Heating System
Heating Cables of Raon Sysem Corporation materialize the healthy heating system without noise, combustion fragrance or dust.
Supplying of Safety (Snow-Melting)
Snow-Melting Heating Cables of Raon Sysem Corporation help safe driving and walking in winter.
Moreover it doesn’t cause damage of buildings by chemicals of snow removal.
Flexible System (Snow-Melting)
Snow-Melting Heating Cables of Raon Sysem Corporation are suitable for installation without any restrictions following surface covering materials.
Simple Installation (Spydereco)
Spydereco Heating Cables of Raon Sysem Corporation are simple to install and is possible to cut in accordance with installation area because of its parallel circuit structure.
