HASL Lead Free Custom Fr-4 PCB Board by Professional PCB Manufacturer
1. PCB, PCBA, PCB design
2. UL, RoHS
3. Fast delivery with quality assured
4. ISO9001 certificate
5. SMT Pick And Place PCB Assembly
6. Professional electronic components sourcing team, global sourcing network,warehouse service for customer supplied components.
7.final function testing
8.Copy PCB board,decoding.
Needed:
1. PCB gerber file.
2. BOM LIST FOR PCB ASSEMBLY.
3. Provide us your sample PCB board or PCBA.

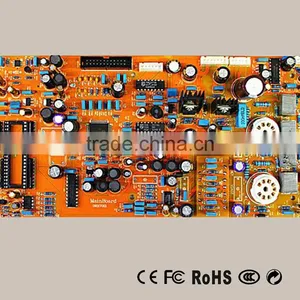

PCBA sample
Finished boads ready to pack.
PCBA manufacturer

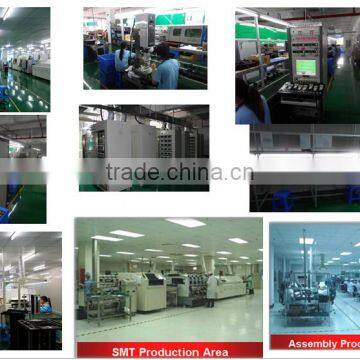

Production Line review
Workshop
| Files | Gerber, Protel, Powerpcb, Autocad, Orcad, etc |
| Material | FR-4, Hi-Tg FR-4, Lead free Materials (RoHS Compliant) , FR1, CEM-3, CEM-1, Aluminium, High frequency Material (Rogers, Teflon, Taconic), Polymide. |
| Layer No. | 1 - 16 Layers |
| Board thickness | 0.0075"(0.2mm)-0.200"(5.0mm) |
| Board Thickness Tolerance | ±10% |
| Copper thickness | 0.3OZ - 6OZ |
| Impedance Control | ±10% |
| Warp and Twist | ≤0.075% |
| Peel Strength | ≥61B/in(≥107g/mm) |
| Min Trace Width (a) | 3mil |
| Min Space Width (b) | 3mil |
| Min Annular Ring | 0.004"(0.1mm) |
| SMD Pitch (a) | 0.012"(0.3mm) |
| pcb with green solder mask and LF-FREE surface finishing BGA Pitch (b) | 0.027"(0.675mm) |
| Register tolerance | 0.05mm |
| Min Solder Mask Dam (a) | 0.005"(0.125mm) |
| Solder mask Clearance (b) | 0.005"(0.125mm) |
| Min SMT Pad spacing (c) | 0.004"(0.1mm) |
| Solder Mask Thickness | 0.0007"(0.018mm) |
| Hole size | 0.008"(0.20mm)-- 0.257"(6.5mm) |
| Hole Size Tol (+/-) | ±0.003"(±0.0762mm) |
| Max PTH Aspect Ratio | 10:1 |
| Hole Registration | 0.003"(0.075mm) |
| HASL | 2.5um |
| Lead free HASL | 2.5um |
| Immersion Gold | Nickel 3-7um Au:1-3u'' |
| OSP | 0.2-0.5um |
| Panel Outline Tol (+/-) | ±0.004''(±0.1mm) |
| Beveling | 30°45° |
| V-cut | 15° 30° 45° 60° |
| Surface finish | HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink, |
| Certificate | ROHS ISO9001 TS16949 SGS UL |
| Special requirements | Buried&blind vias, Impedance control, via plug, BGA soldering and gold finger |
Suzhou Hulsin Electronics Limited was established in 2002, is a professional passive components manufacturer and agent,SMD/ SMT processing, assembly and testing of a one-stop service provider. Hulsin has SMD/SMT production workshop, production lines, and a variety of professional testing equipments.
Production Equipment
Workshop View
Quality
Our UL/Rohs standards for quality assemblies from start to finish by a team of experienced management directors and efficient production workers, with its sustainable development, career planning, advanced training-system and satisfactory welfare for all staff. On the other hand, Hulsin strives to improve quality and lead time through management and technology innovation.
Competitive price
Our experienced management team keep the management and production cost under controlled. These advantages provide enough profits to Hulsin, as well as greatly reduce customer's purchase cost.
Fast lead time
A good managerment team helps us arrange an well orgnized work, so that Hulsin can work out the samples, bulk order efficient.
Quick response, Sunthone will reply Customer's any enquiry within 2 hours;
More than 180 type of PCB can be worked out Every day;
24 hours technique Support;
24 hours Engineering Gerber files treatment.
24 hours English Engineering Questions Confirmation by E-mail.
Experienced Impedance Designer.
Supply the best project fit for production customized
Ready to pack
Production line
