Specifications
1. High Saturation materal, low cost &high efficiency
2. Wide inductance range, high current capability low magnetic leakage
3. Low DC resistance, good control on noise due to the toriodal constructure
4. Characteristics: Small volume, Big current output, Excellent current choking performance.
5. Various material availiable to meet different frequency requirements
Applications: Switching regulators. Automotive systems, Power Amplofiers, Power supplies SCR and Triac Controls, Speaker Crossover Networks, EM/RFI Suppression
General conditions: Operating temperatre: -55~+55, storage temperature: -40~+40 Inductance range: 1uH, Current rating based on current density about 8A/mm Iron Power core material 26: 50Hz~100kHz, Iron Power Core Material 52: 10kHz~500kHz
FEATURES
| 1. As high magnetic saturation ferrite is used, the products can handle large transient current |
| 2. Excellent Frequency Characteristics |
| 3. Low Magnetic Flux Leakage |
| 4. Temperature Rise: 45℃ Max |
| 5. Rated Voltage: 270V AC, 50/60Hz |
| 6. Operating Temp. Range: -25℃--+105℃ |
| 7. Storage Temperature: -40℃--+100℃ |
| 8. Withstanding voltage: 2000AC for ONE Minute |
| 9. Insulation Resistance: 500VDC 100MΩ min. |

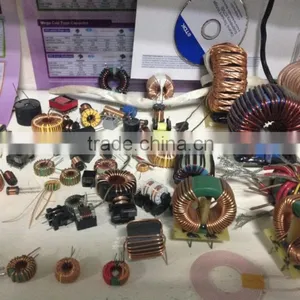

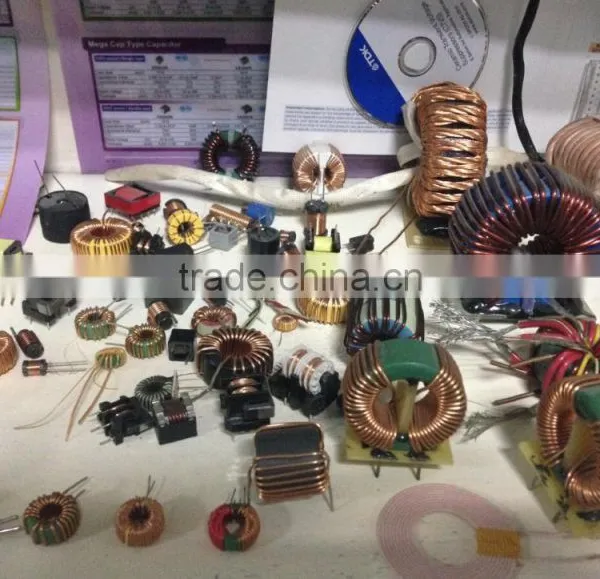

Toroidal Inductors
| CORE TYPE | CORE TYPE | CORE TYPE | CORE TYPE | CORE TYPE | CORE TYPE |
| ET 20 | ET 25A | ET 30 | FT 17.2 | FT 20.6 | FT 32 |
| ET 23 | ET 26 | ET 31 | FT 17.5 | FT21.5 | |
| ET 24 | ET 28 | ET 35 | FT 19 | FT 23 | |
| ET 25 | ET 29 | FT 19 | FT 27.9 | |
1000pcs per carton, protected with foam.
Ship by express or by air, like DHL, Fedex, UPS etc.
1. Hulsin team act professional and high efficient, we'll reply all clients within 1 hour in working time.
2. Our professional team serve not only inductor, but also other electronic products, all your items settled in one stop.
3. Free samples available for some of our products.
4. Quality guarenteed , 2 years warranty.
1. What is your MOQ?
A: Usually our plastic hanger MOQ is 1000pcs, but for some common use items, we also sell in small quantity. Please contact our sales Cindy to comfirm.
2. How long can I get samlpes?
A: For widely used products, we can offer samples immediately, but for special products, will take 7 days to make out samples.
3. Can I can customize?
A: Yes, we welcome customized inductor, just show us your photo, sizes, specifications. Or send us a sample, we can make out same one.
4. How to contact salesman?
A: Below is sales contact.
Royle Luo
Mobile No./what's app:0086 18860925779
Skype: royle.luo
