Varable inductor coils 10uh
Specification
1.Variable Inductor
petitive price
3.customer's spec are welcome.
4.high quality
5.Quality assured: RoHs

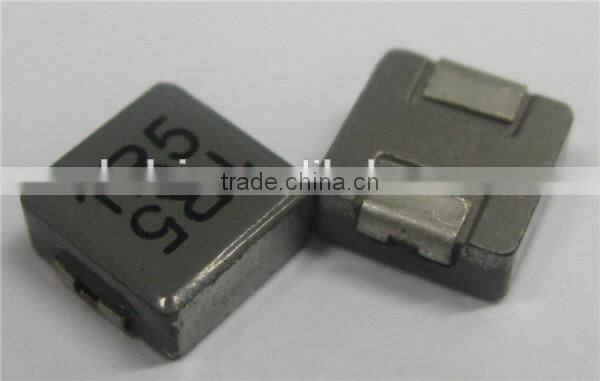

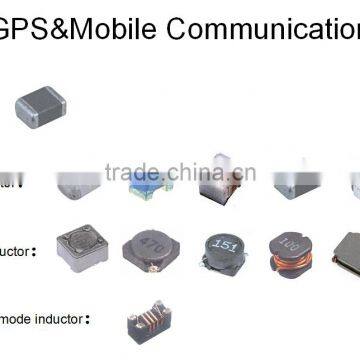

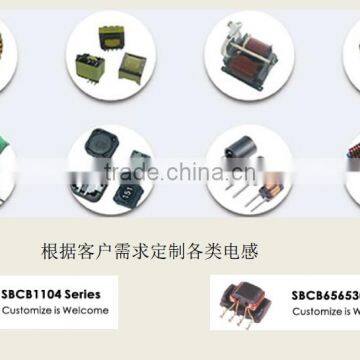

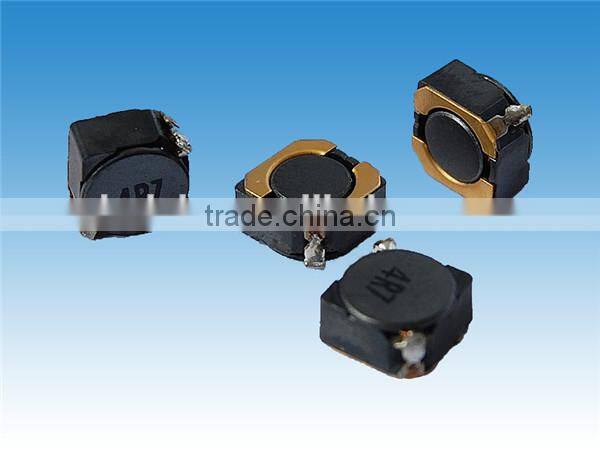

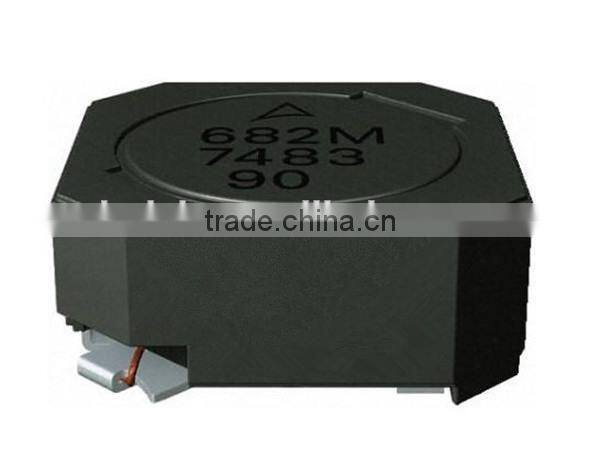

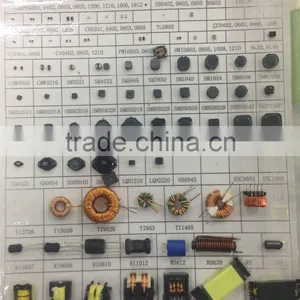

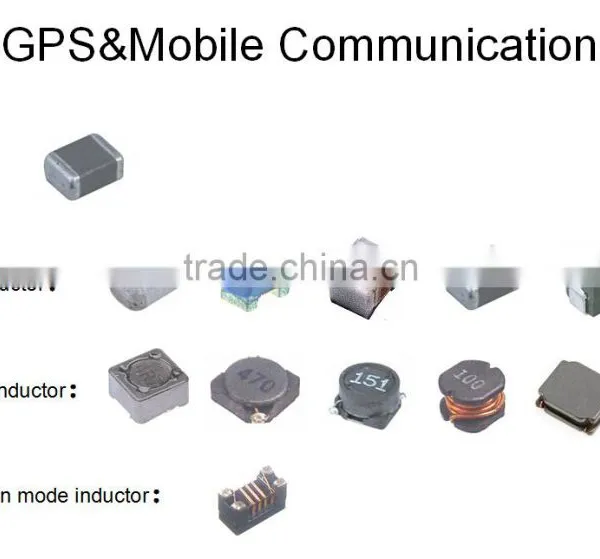

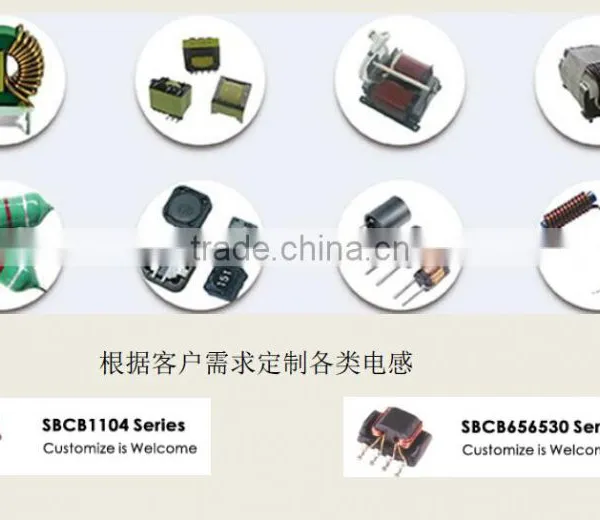

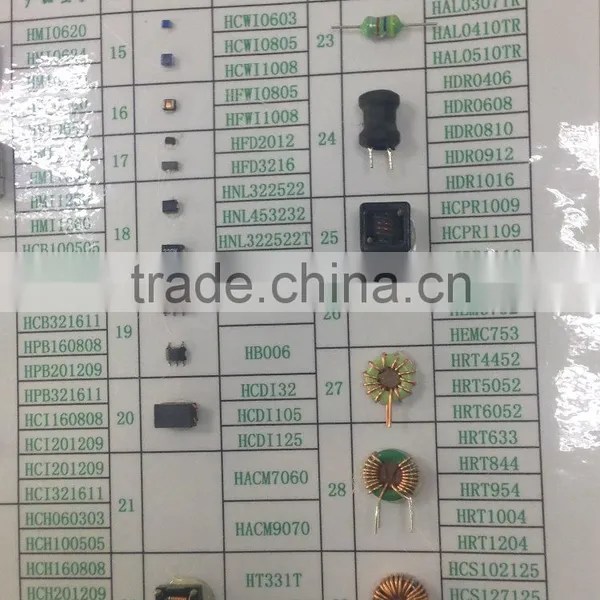

Product Photos

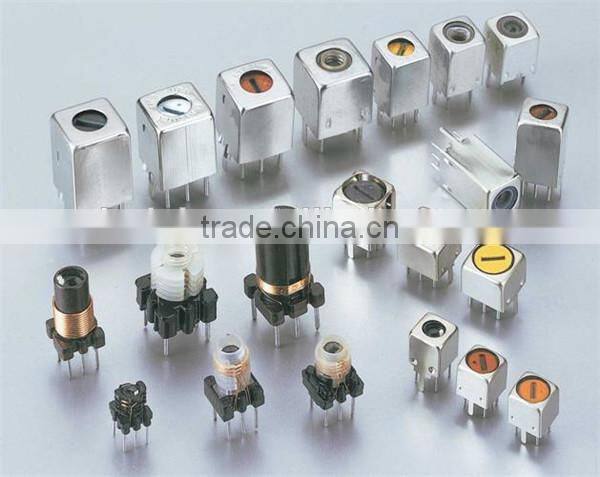

Variable Inductor
| 1. ORDERING INFORMATION |
| (CUSTOMER'S SPECIFICATION ARE WELCOME.) |
| (1) TYPE (MD: INSERT MOLDED COILS; |
| MDS: SMD MOLDED COILS); |
| (2)STYLE (07=SIZE,08=HEIGHT); |
| (3) U: UNSHIELDED STYLES; |
| S: WITH SHIELD CAN STYLES; |
| (4) NUMBER OF TURNS; |
| (5) S: SPACEWOUND C: CLOSEWOUND; |
| (6) CORE MATERIAL: C: COPPER CORE. |
2. INDEX
| PART NO. | NUMBER OF | INDUCTANCE | Q |
| TURNS RANGE | RANGE(nH) | RANGE | |
| MD-0605U-XXT-C-C | 1.5T-4.5T | 9.8~47.0 | 30-80 |
| MD-0605S-XXT-C-C | 8.9~37.8 | 25-60 | |
| MD-0508U-XXT-S-C | 1.5T-6.5T | 13~86 | 50 |
| MD-0508S-XXT-S-C | 11~60 | 50 | |
| MD-0708U-XXT-C-C | 1.5T-8.5T | 17~209 | 50 |
| MD-0708S-XXT-C-C | 15~151 | 50-60 | |
| MD-0711U-XXT-S-C | 1.5T-8.5T | 16~152 | 50-60 |
| MD-0711S-XXT-S-C | 14~115 | 50-60 | |
| MD-0711U-XXT-C-C | 1.5T-10.5T | 15~190 | 30-60 |
| MD-0711S-XXT-C-C | 15~185 | 30-60 | |
| MD-0913U-XXT-S-C | 1.5T-5.5T | 15~86 | 50 |
| MD-1014U-XXT-C-C | 1.5T-13.5T | 23~540 | 40~80 |
| MD-1014S-XXT-C-C | 20~410 | 35~70 |
| Specification | ||||
| 1. Using TH2.6x2.5 core | ||||
| PART NO. | L MIN | L MAX | L NOM | Q MIN |
| nH | nH | nH | @L NOM | |
| MD-0605U-1.5T-C-C | 10.45 | 11.55 | 11.0+5% | 80@100MHZ |
| MD-0605U-2.5T-C-C | 20.14 | 22.26 | 21.2+5% | 80@100MHZ |
| MD-0605U-3.5T-C-C | 29.45 | 32.55 | 31.0+5% | 60@100MHZ |
| MD-0605U-4.5T-C-C | 42.28 | 46.73 | 44.5+5% | 50@100MHZ |
FEATURES
1:Small size ,light weight
2:High Q value , Large range of inductance
3:Heat-shrinkable sleeve to protect
4.UL CE RoHS
Advantage
1)Professional engineer
2)Qualified material competative price
3)Good after-sale service/quality assured
4)short delivery
5)small volume orders supported.
1000pcs per carton, protected with foam.
Ship by express or by air, like DHL, Fedex, UPS etc.
1. Hulsin team act professional and high efficient, we'll reply all clients within 1 hour in working time.
2. Our professional team serve not only inductor, but also other electronic products, all your items settled in one stop.
3. Free samples available for some of our products.
4. Quality guarenteed , 2 years warranty.
1. What is your MOQ?
A: Usually our plastic hanger MOQ is 1000pcs, but for some common use items, we also sell in small quantity. Please contact our sales Cindy to comfirm.
2. How long can I get samlpes?
A: For widely used products, we can offer samples immediately, but for special products, will take 7 days to make out samples.
3. Can I can customize?
A: Yes, we welcome customized inductor, just show us your photo, sizes, specifications. Or send us a sample, we can make out same one.
4. How to contact salesman?
A: Below is sales contact.
Skype: royle.luo
Mobile/what's app: +86 18761951906
