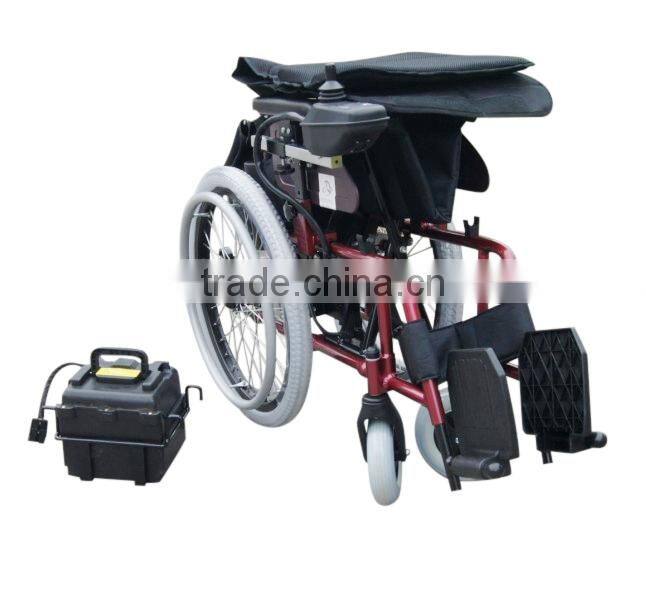

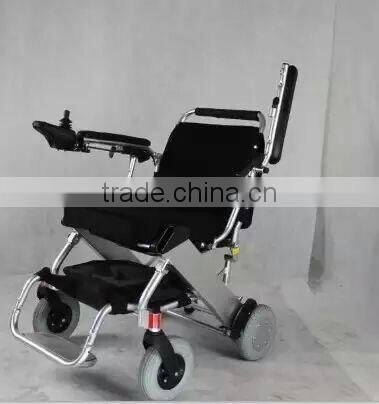

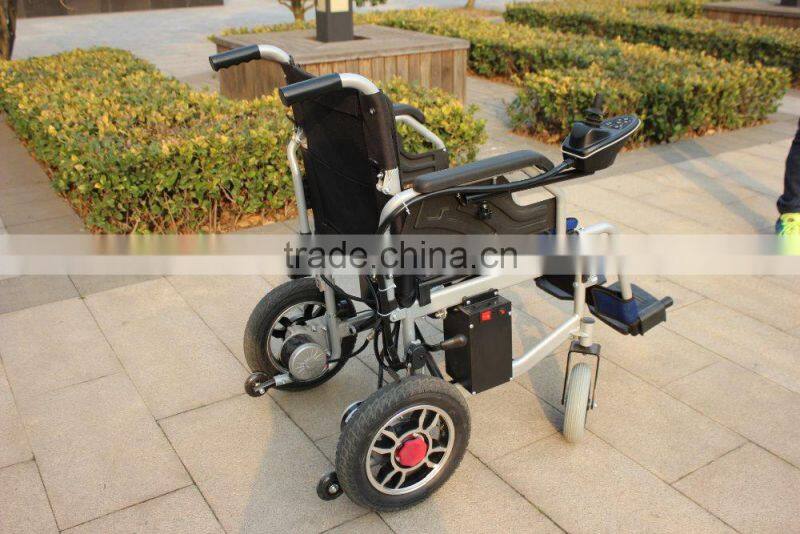

Reeducation Fournitures Surdimensionnees Li-ion Batterie en Fauteuil Roulant

Parameter

Motor:200WX2 Li-ion Battery:24V 10AH
Charge time:5-6 hour Range:18km
Max speed:7.5km/h(1.5-7.5 adjustable)                                                                 Expand Size:L:918mm;W:603mm;H:892mm;
Folding size:L,603mm;H:668mm;W:324mm;
Packing:L,720mm;H:750mm;W:400mm;
N.G:25kg;                                                                                                                       Loading :180kg;
Seat size:450mm*480mm*420mm; Back:440mm*470mm

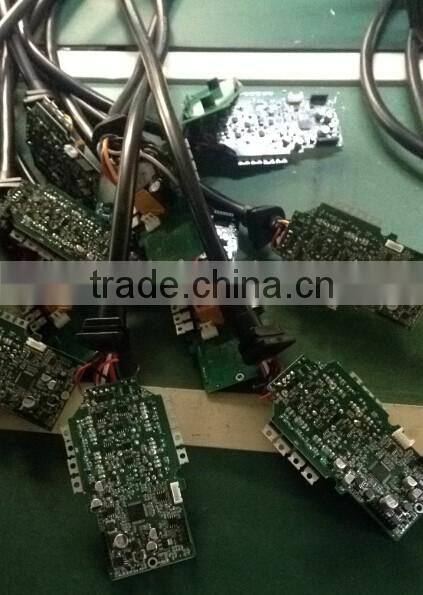

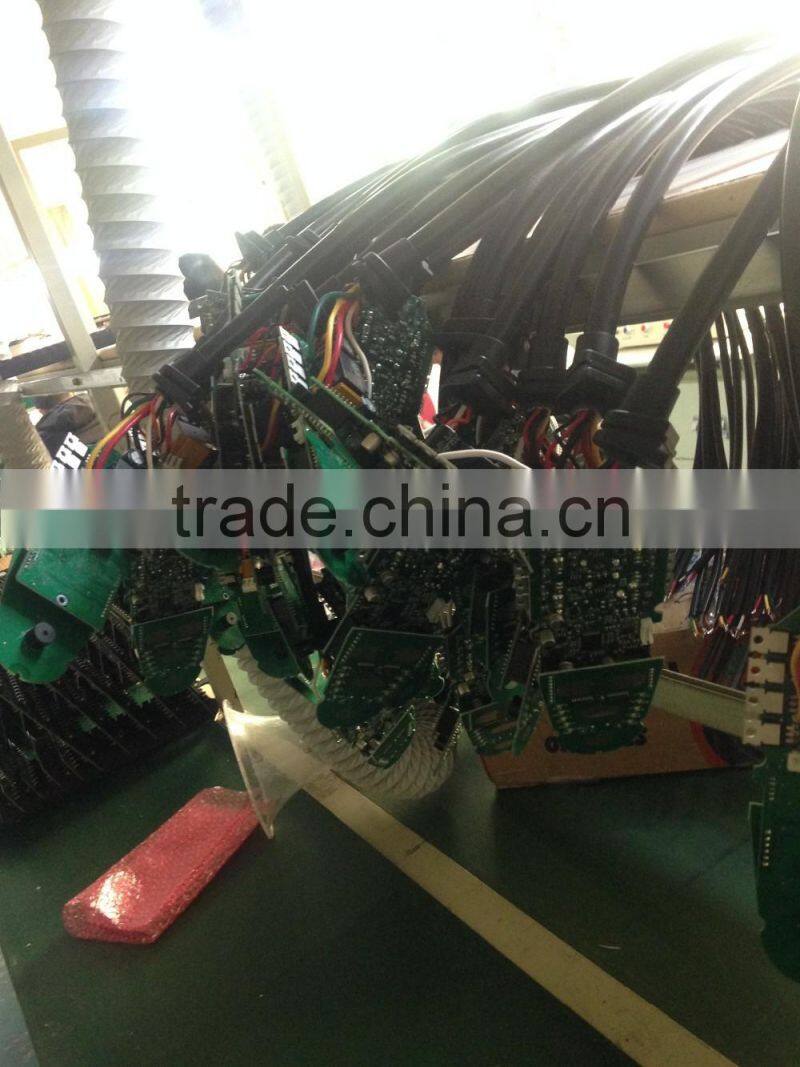

Controller Spec

Power Voltage:24V DC

Working Voltage:20V – 30V DC

Output Current :0 – 60A

Charging Current :6A max

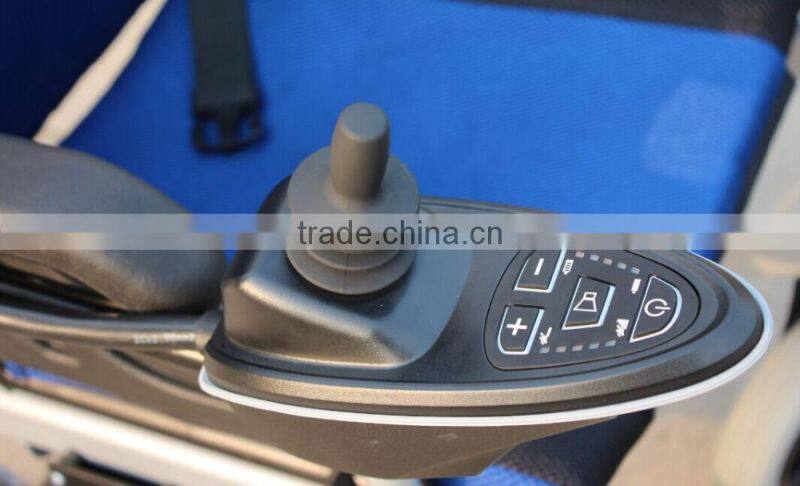

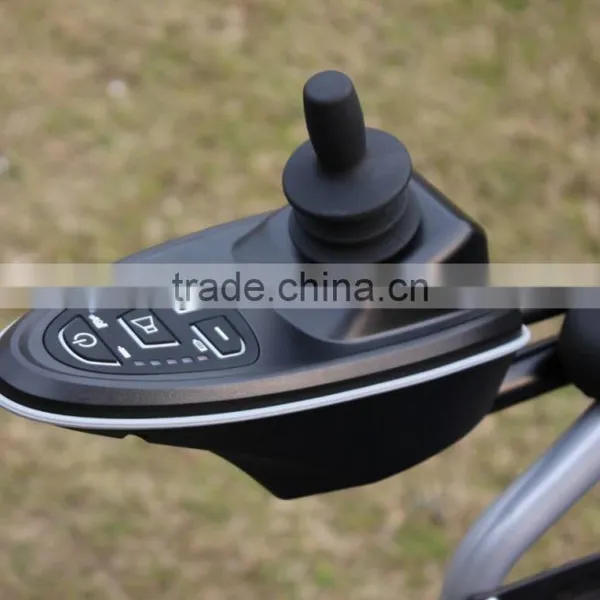

Control Way:Hall rocker comprehensive

Braking way :Electronic braking and

electromagnetic brake

 Display Mode :LED

 Waterproofing Grade :IPX5electronic equipment

 Operating Temperature :-25℃ - 65℃

 Storage Temperature :-40℃ - 80℃

 Protection function: over current, low-voltage protection ,

 high temperature, locked-rotor ,charging protection

Electronic differential, advanced driving algorithm and intelligent control, flexible operation, strong maneuverability.In the process of the electronic energy consumption brake, brake current closed loop. Short braking distance makes power even.Intelligent charging protection, prevents charger reverse connection,
