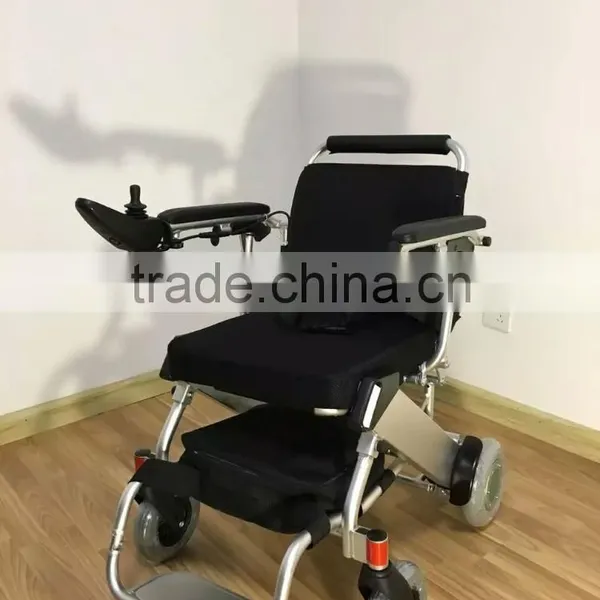

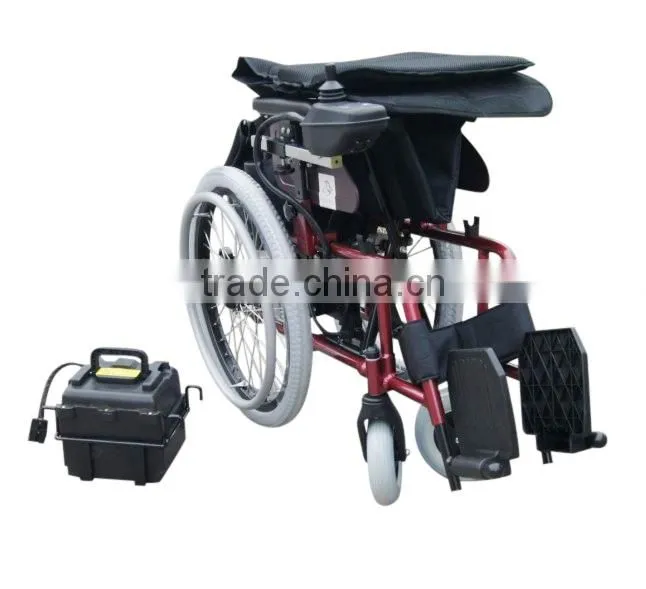

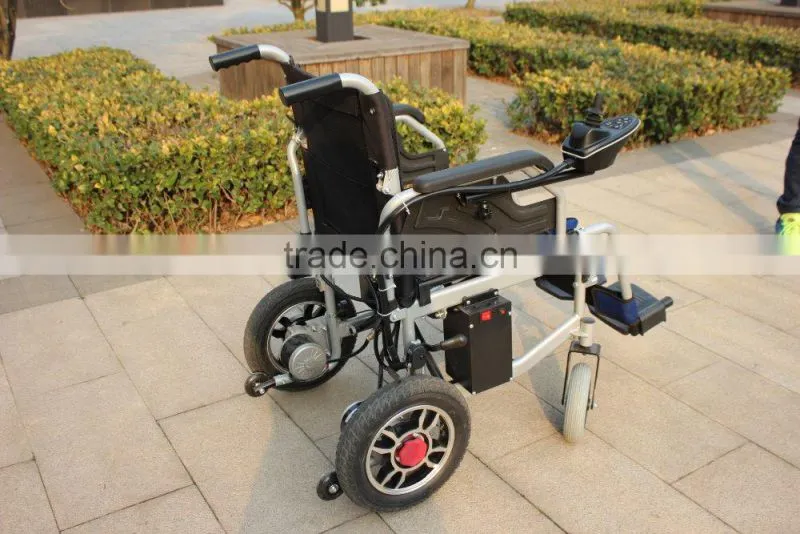

Leger Avec Batterie au Lithium Fauteuil Roulant Electrique

Parameter

Motor:150W*2                                                                                                   Battery:24V8AH
Charge time:5-6Hour                                                                                            Range:15km
Max speed :6km/h                                                                                                    Max Climb Capability:9°
Loading weight:120kg

Net weight of power wheelchair:20kg
Expand Size:795×570×840mm

Folding size:570×290×690mm
Packing size:600×320×740mm

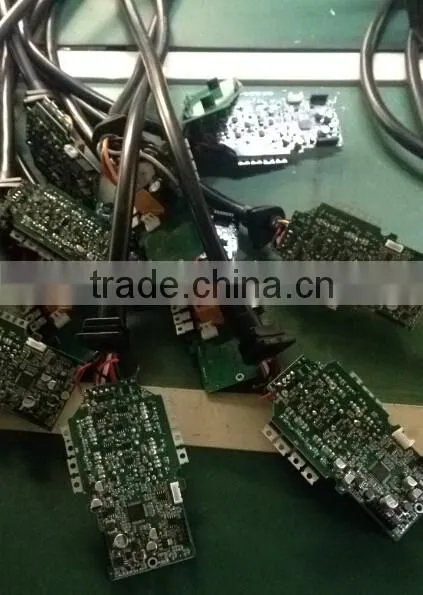

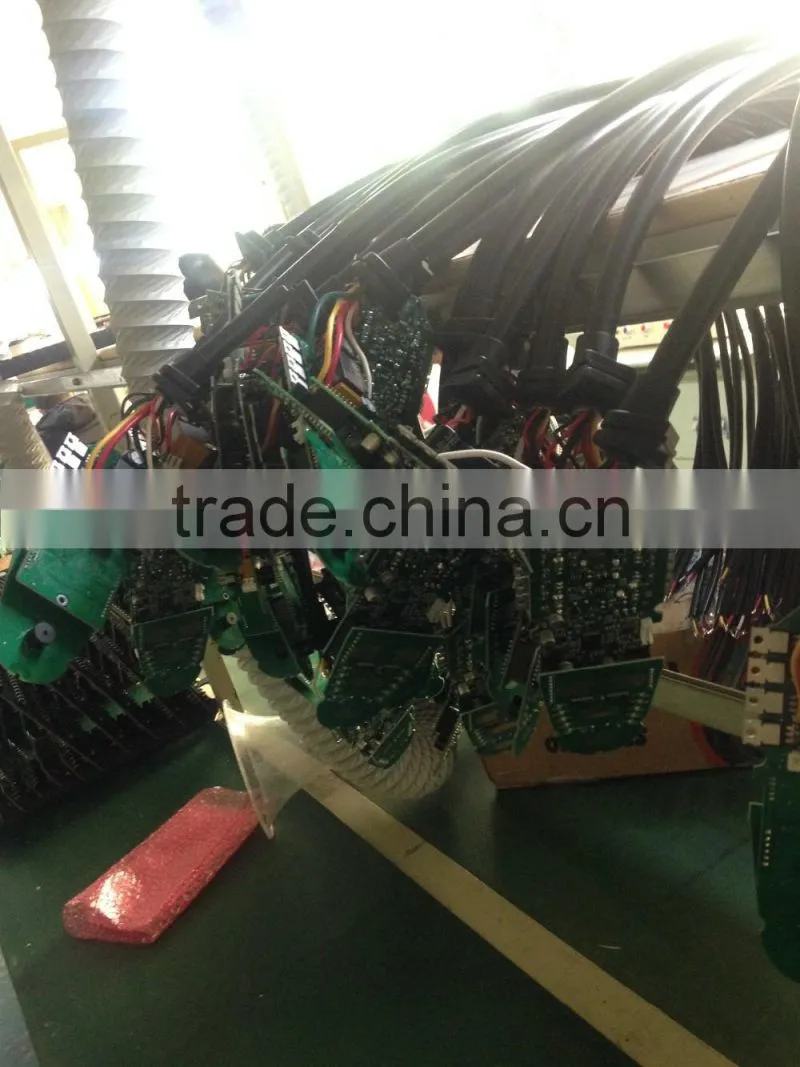

Controller Spec

Power Voltage:24V DC

Working Voltage:20V – 30V DC

Output Current :0 – 60A

Charging Current :6A max

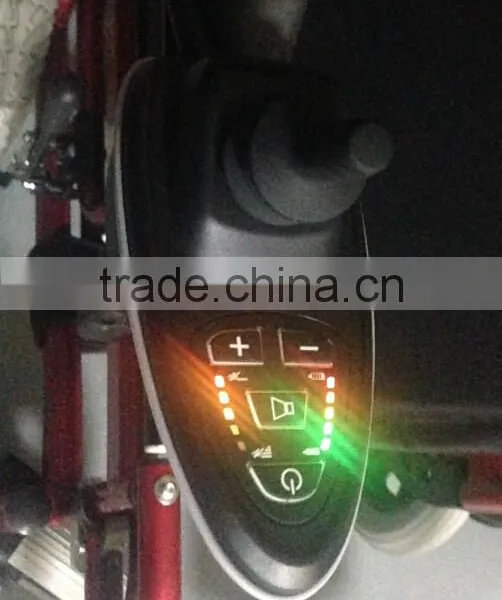

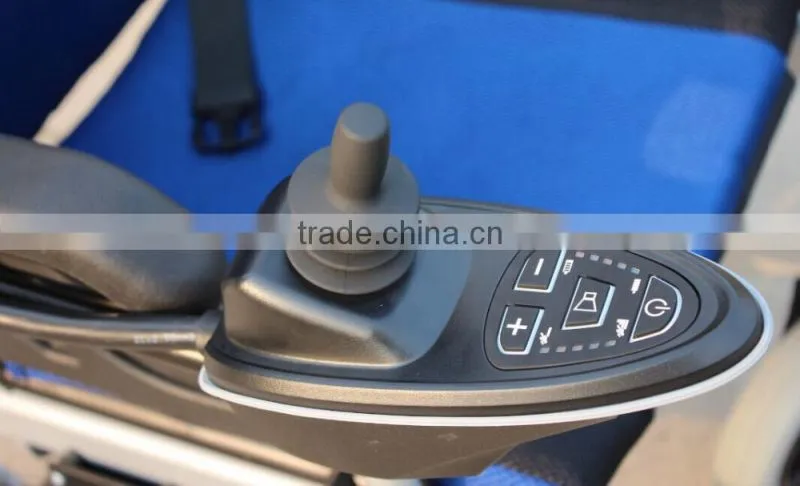

Control Way:Hall rocker comprehensive

Braking way :Electronic braking and

electromagnetic brake

 Display Mode :LED

 Waterproofing Grade :IPX5electronic equipment

 Operating Temperature :-25℃ - 65℃

 Storage Temperature :-40℃ - 80℃

 Protection function: over current, low-voltage protection ,

 high temperature, locked-rotor ,charging protection

Electronic differential, advanced driving algorithm and intelligent control, flexible operation, strong maneuverability.In the process of the electronic energy consumption brake, brake current closed loop. Short braking distance makes power even.Intelligent charging protection, prevents charger reverse connection,
