Stainless Steel Single U Channel Pipe Tube Welding

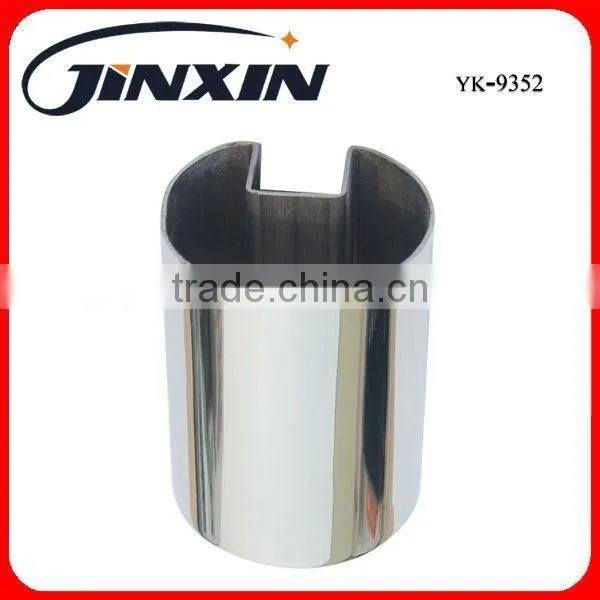

Stainless steel single U channel pipe tube welding

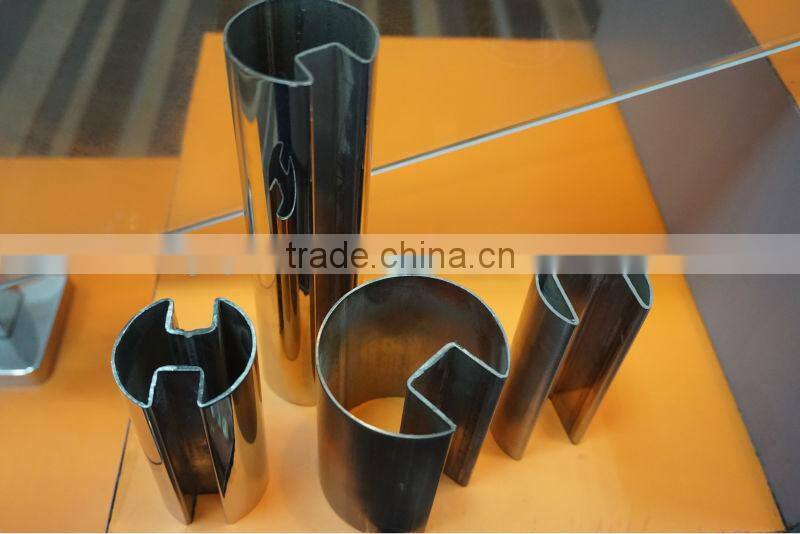

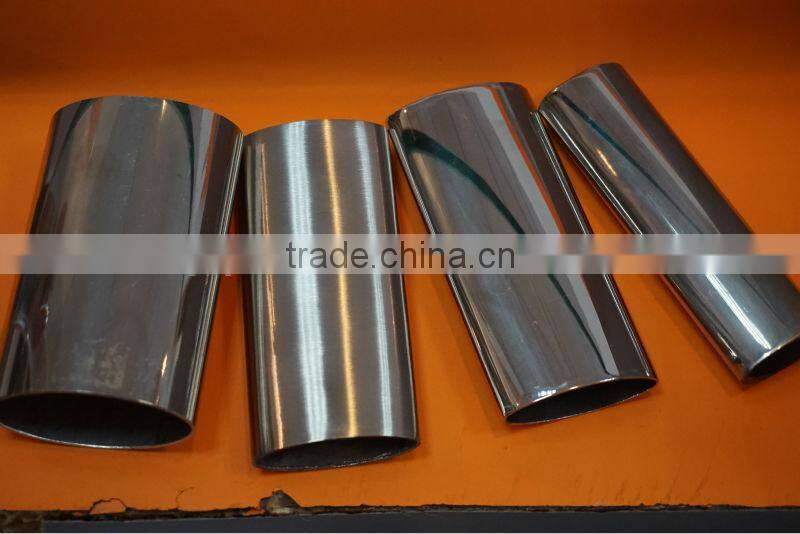

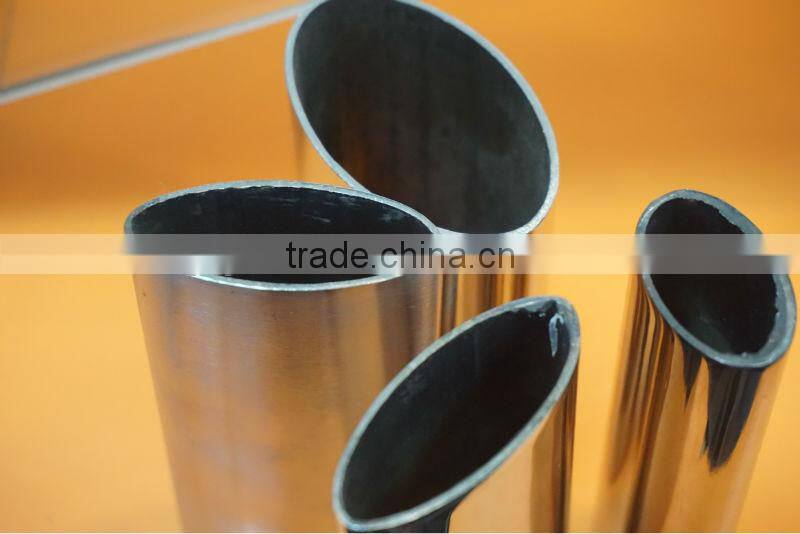

U channel pipe

1)material:Stainless Steel AISI304/316,SUS304/316

2)Surface:Stain or mirror polished

3)Size:Diameter:42.4mm, 48.3mm, 50.8mm, 63.5mm, 76.2mm, 101.6mm

      Thickness:1.0mm, 1.2mm, 1.5mm, 2.0mm

      L:15*H:15mm; L:24*H:24mm; L:27*H:30mm

3)Function:Clamp the tempered glass panel with 8~12mm thickness and hold the handrail.

4)Application:Glass fencing of apartment, balcony or deck and so on.

5)Delivery Time:15~45 days after receipt of advance payment.

6)Payment Term:30%~50% in advance as deposit.

Other balance is paid before delivery and shipment.

7) Accessories such as screw and nut are available; all the fittings are solid.

8) OEM&ODM are acceptable.

 (HOT)Channel Pipe

(HOT)Channel Pipe(YK-9351)

(HOT)Channel pipe

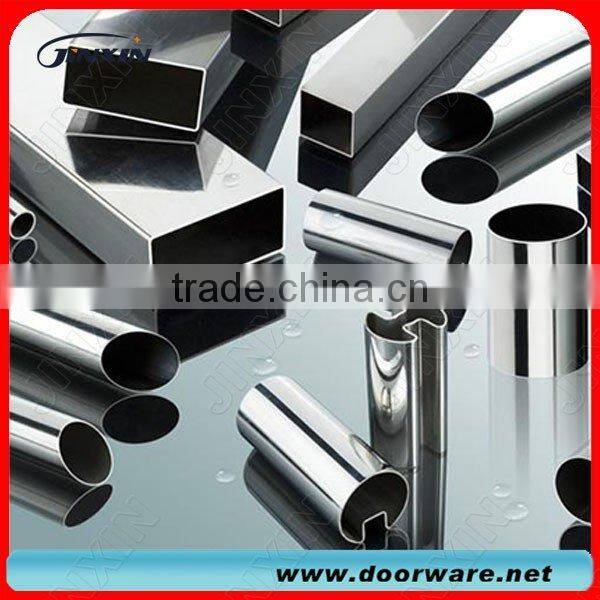

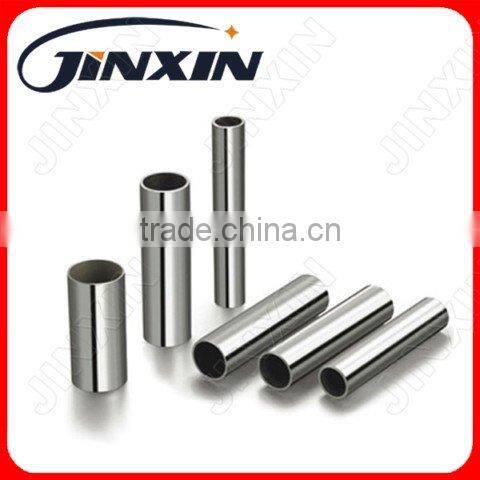

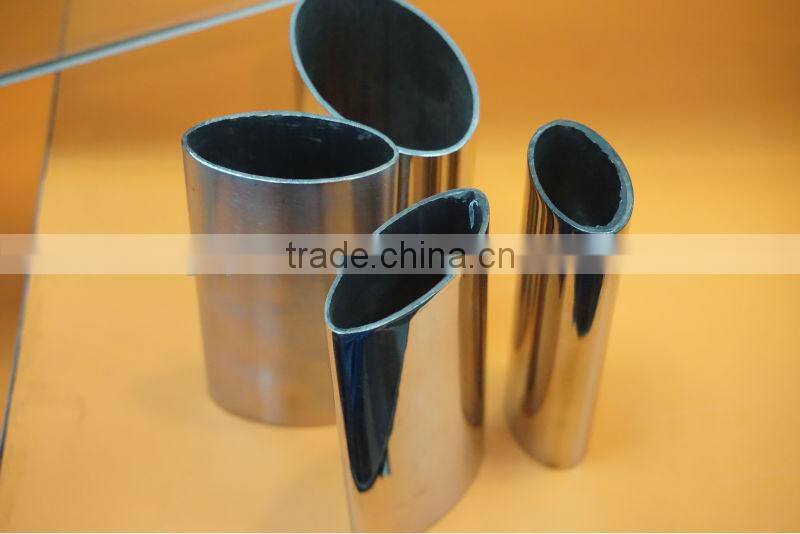

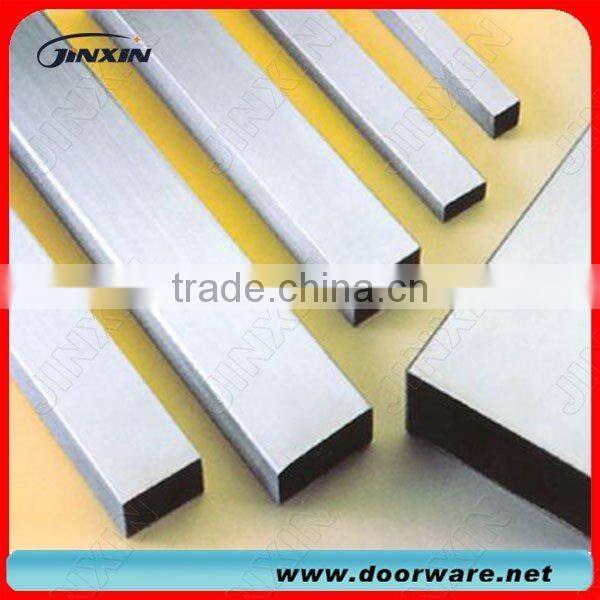

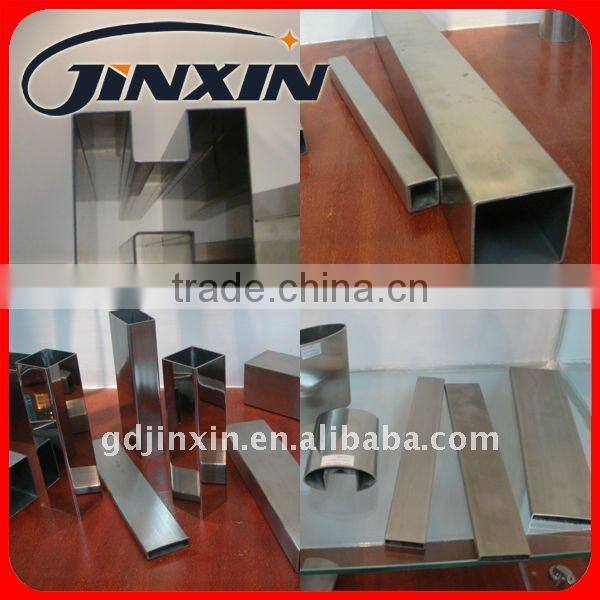

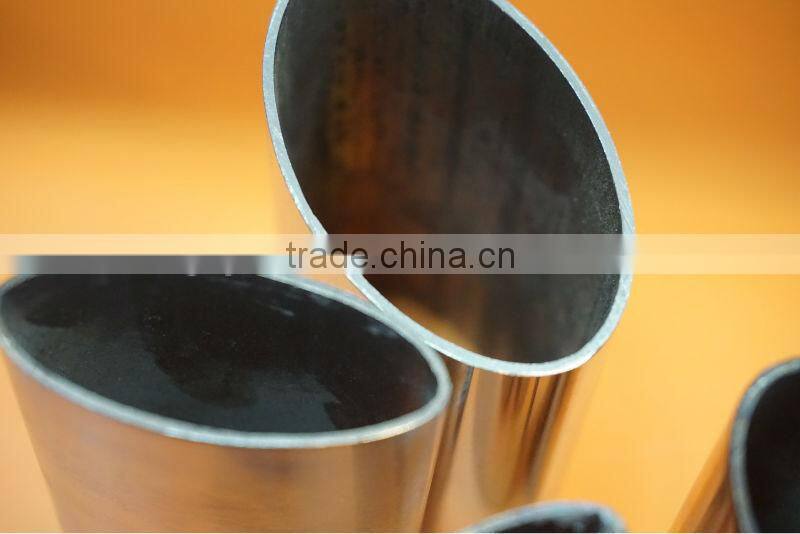

High Quality Material Of All Kinds:

Jinxin Workshop:

Jinxin Hardware Series :

Jinxin In Exposition :

Our advantages:
1. Competitive price with more discount(Real Manufactory).
2. Germany advanced machinery and technology.
3. Our R&D department can offer 3D, Auto CAD demo or drawings.
4. Excellent quality control(100% check one by one)
5.100% real material of 304/316/316L stainless steel.
6. Wide range of specification, Some products stock in hand, DIY installation.
7. Good service before and after sales.
8. OEM, ODM is acceptable.

Production Process:
1. Material 2.Cutting 3.Drilling 4.Milling 5.Welding 6.Polishing 7.Checking 8.Fixing 9.Packing 10.Loading

Customized Process:
1st Step: Customer has showed his special requirements.
2st Step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3st Step: Making the conceptive CAD drawing based on communication and understanding.
4st Step: Making the detail and 3D drawing after fixed the design and other details.
5st Step: Offer the quotation after confirm the design,material and surface treatment.
6st Step: Made the sample for approval.
7st Step: Test installation after demo mock up.

Contact us:
JINXIN Decorative Hardware Products Manufactory
TEL:4008-365-688/86-20-89681577
FAX:86-20-86852230

We-chat:13570435329

Skype:wilson.zizi
WEB:/
ADDRESS:Dayun Industrial Area, Pingbu Road, Shiling Town, Huadu District, Guangzhou, China

If any inquiry or question,please feel free to contact us.Thank you.
