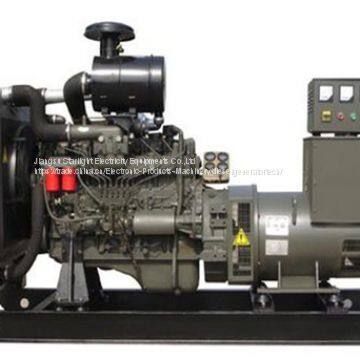

LICARDO Diesel Generator Set 24GF

Diesel Generator Set Dat

Standby Power:24KW/30KVA

Prime Power:22KW/27KVA

Rated Current:39(A)

Rated Frequency:50（Hz）

Start-up time:5～6（s）

Power Factor:0.8（Lag）

Rated Voltage:400/230（V）

Standard Features

Engine:LICARDO  K4100D

Radiator 50℃ max

Fans are driven by belt, with safety guard

24V charge alternator

Dry type air filter, fuel filter, oil filter

Alternator: single bearing alternator

IP22, insulation class H/H

Main line circuit breaker

Standard control panel

Absorber

Muffler

User manual



Diesel Engine Data

Manufacturer:LICARDO Engine Co

Model:K4100D

Prime /Standby Power:0KW/33KW

Rated Speed:1500（r/min）

Cycle:4 stroke

Cylinder Arrangement:4 in line

Displacement:3.61L

Bore and Stroke:100*115（mm）

Compression Ratio:19:1

Governor Type:Mechanical

Start battery voltage:24V DC

Air Intake System

Air Intake System:Naturally aspirated

Max Intake Restriction:6.1kPa

Burning Capacity:6.2m3/min

Air Flow:168m3/min

Exhaust System

Exhaust Gas Flow:12.2m3/min

Exhaust Temperature:≤470℃

Max Back Pressure:3kpa

Fuel System

Fuel System:Direct Injection

100%( Prime Power) Load:258.4g/kwh

Oil System

Total Oil Capacity:12.5L

Oil Consumption:≤2.04g/kwh

Oil Pressure at Rated RPM:0.30-0.50MPa

Cooling System

Cooling Way:Water-cooled

Total Coolant Capacity:28L

Max Water Temperature:95℃

Alternator Data

Manufacturer:STARLIGHT/STAMFORD /SIEMENS / MARATHON /ENGGA/KEPU

Excitation Mode:Brushless self-excitation

Number of phase and Access Act:3-phase 4-wire

Connecting Type:“Y” type connecting

Alternator Capacity:30KVA

Alternator Efficiencies:95％

Overload:（PRP）110% load can run 1h

Protection Level:IP22-IP23

Insulation Class, Temperature Rise:H/H

Telephone Influence Factor (TIF):＜50

THF:＜2%

Voltage Regulation, Steady State:≤±1%

Altitude:≤1000m



Genset Electrical Performance

Voltage Regulation:≥±5%

Voltage Regulation, Stead State:≤±1%

Sudden Voltage Warp (100% Sudden Reduce):≤+25%

Sudden Voltage Warp (Sudden Increase):≤-20%

Voltage Stable Time (100% Sudden Reduce):≤6S

Voltage Stable Time (Sudden Increase):≤6S

Frequency Regulation, Stead State:≤5%

Frequency Waving:≤1.5%

Sudden Frequency Warp (100% SuddenReduce):≤+12%

Sudden Frequency Warp (Sudden Increase):≤-10%

FrequencyRecoveryTime(100%SuddenReduce):≤5S

FrequencyRecoveryTime(Sudden Increase):≤5S



Open Type

Overall Size                                  Weight

1600(mm)*590(mm)*1300(mm)  750(kg)

Soundproof Type

Overall Size                                    Weight

2800(mm)*1200(mm)*1640(mm)  1250(kg)
