High Quality DOT 4BW 48kg Steel Lpg Gas Tank

High quality DOT 4BW 48kg steel lpg gas tank

Standard: DOT-4BW240

Lpg gas cylinder model No.: DOT-L108-0

Out diameter: 375±3mm,

minimum wall thickness: 2.44mm,

Length: 1255±10mm

 Water capacity: 108L

Max filling weight: 45kgs

Working pressure: 1.6Mpa/240psi

Material: HP325

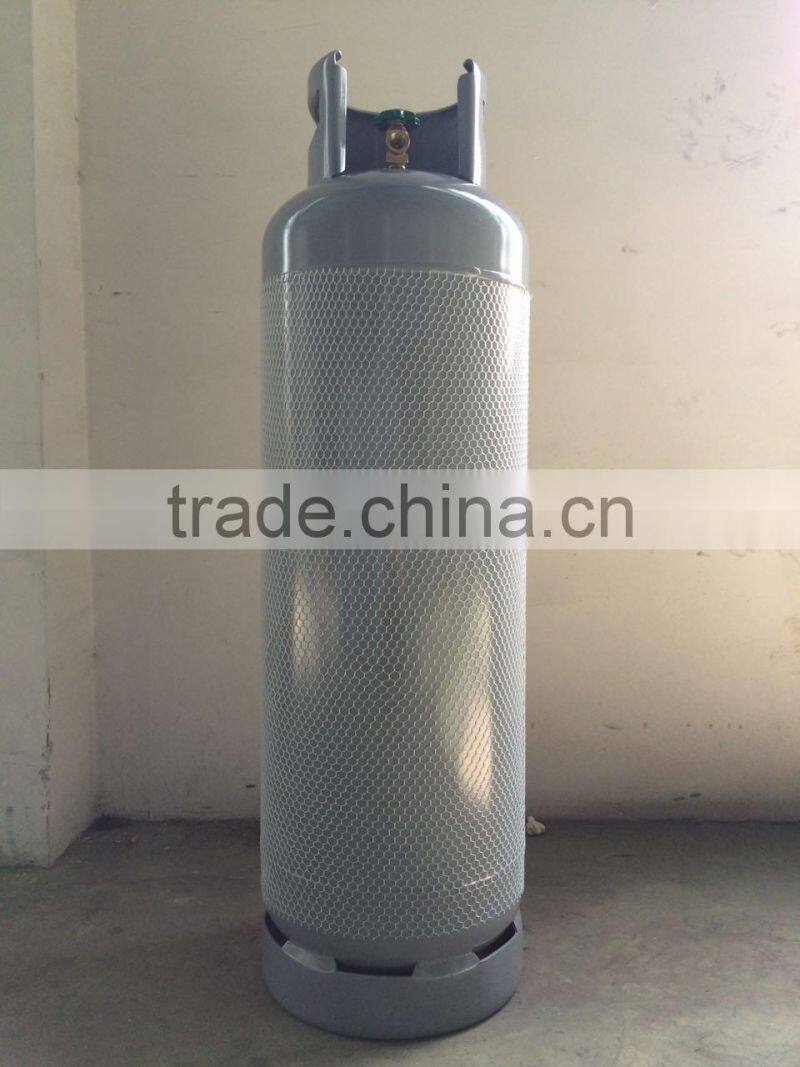

Color: Pantone color card of “430 Grey” as the photo attached

POL valve model: 11040-A,  UL certificate approval

Valve inlet thread 3/4’’-14 NGT,

Valve outlet thread 0.885’’-14-NGO-LH

Valve without Dip Tube

Valve working pressure: 2.2Mpa

Valve pressure relief range: 2.6-3.3Mpa

Valve material: Brass

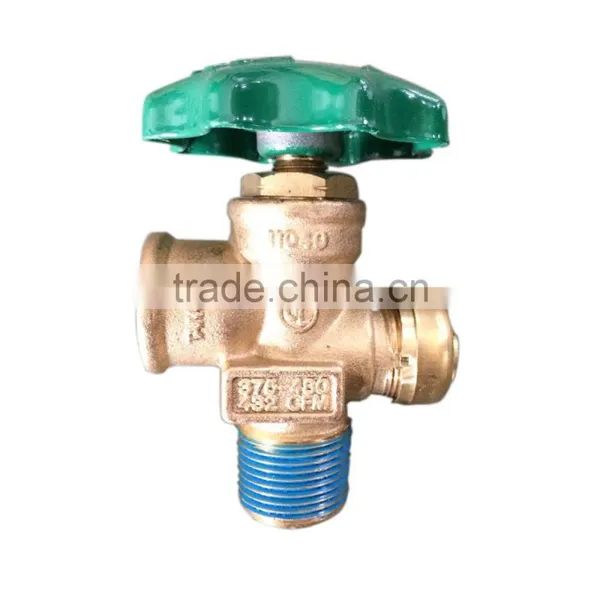

Valve design and color as the photo attached.

Anti-rust Processing of the cylinder: first by shot blasting, the base coat use

Zinc-Oxide anti corrosive paint, followed by coating with Aliphatic Polyurethane

Our company is experienced in and qualified for the supplying various kinds of high pressure gas cylinders with pressure level B1,B2,B3,A1,C3,D1,D2. Presently, we can supply high pressure seamless steel cylinder, CNG cylinder for vehicle, low pressure LPG welded cylinder, composite cylinder, accumulator shells, welded insulated cylinder, and gas storage special container, aluminum liner fully wrapped with carbon fiber composite cylinder in 30 seriese of 680 sizes.

These cylinders are used to fill with permanent gases, liquefied petroleum gas or compressed natural gas to serve a wide application in chemical industry, metallurgical industry, mechanical industry, petroleum industries, electronic industry, building industry and in the fields of fire fighting, energy, food process, household, medical treatment, cryogenic soldering, mountaineering, diving, mining,scientific research & etc.

Presently our supplies have the approvals of DOT, TUV, CCS, BV, ABS, TC,& LIOYGS. These cylinders also can be designed and processed in strict accordance with the standards of BS, JIS, DIN, EN, KS, ISO, GB(China) or the off-standard from the consumer.

All the manufacturing technology and propertiess test are entirely under the supervision of the thirty-party supervision institute approved by General Administration of Quality Supervision,Inspection and Quarantine of China

.
