Plywood Production Line / Plywood Production Machine / Plywood Making Line

Name: Plywood Production Line / Plywood Production Machine / Plywood Making Line
Brand: HUIXIN
SKU: 142611606
Availability: InStock

US$ 90,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, plywood production line/plywood production machine/plywood making line

Place of Origin:

Shandong, China

Linyi City Haojing Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, plywood production line/plywood production machine/plywood making line

Place of Origin Shandong, China

Brand Name HUIXIN

Model Number plywood production line

Voltage 380V 50HZ 3PH (optional)

Power(W) About 200kw

Dimension(L*W*H) customized

Weight About 100T

Certification ISO9001/CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

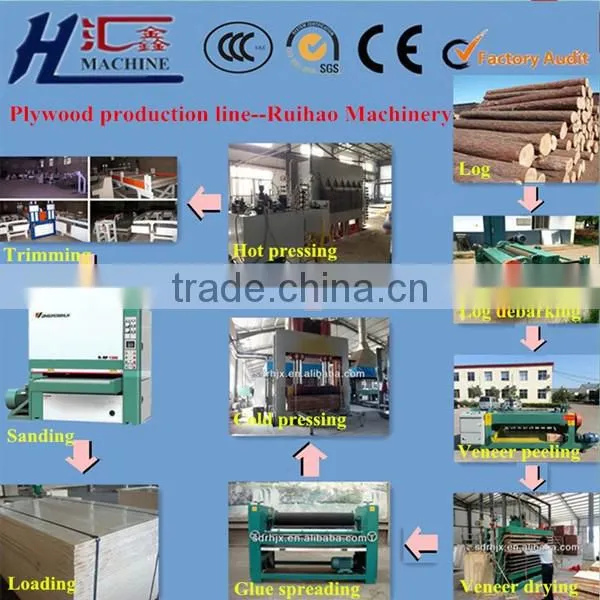

plywood production line / plywood production machine / plywood making line

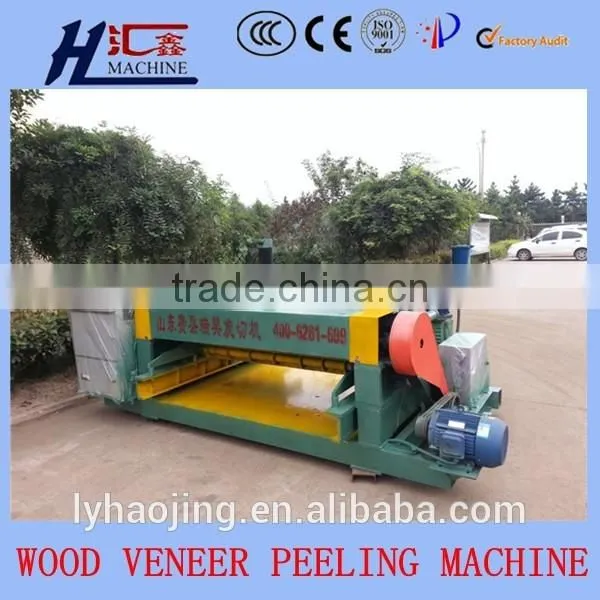

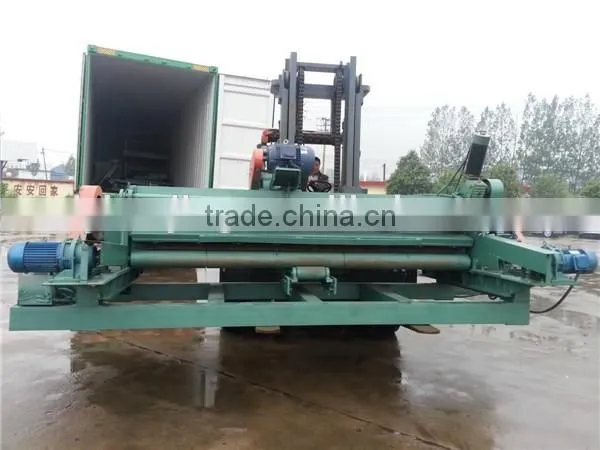

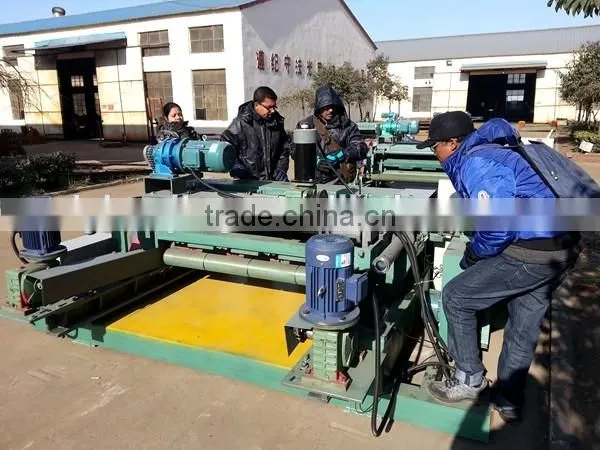

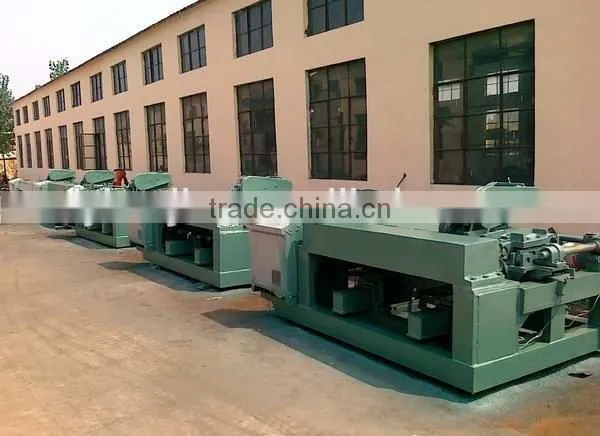

1. Non spindle wood rotary peeling and cutting machine

Model: WK/Z-500	4 feet	8 feet
Log dimension processing (D*L)	500*1400 mm	500*2600 mm
Veneer thickness range (mm)	0.3-4.0	0.30-1.2, 0.6-2.2, 2-4
Rotary knife specification (LWT)	140013012.7 mm	270014012.7 mm
The smallest diameter core	28 mm, 30mm	30mm
Wire speed of friction roller	32m/s, 38m/s	38m/s
Diameter of friction roller	98mm, 110mm	110mm
Reference output	20-30m3/day	20-30m3/day
Power detail	380V-50Hz	380V-50Hz
Roller engine	2pcs*5.5kw-4	2pcs*7.5kw-4
Feeding engine	1pc*5.5kw-4	1pc*5.5kw-4
Rotary clipper engine	2pcs*2.2kw-4	2pcs*2.2kw-4

2. Dryer core veneer 15layers of plywood production line

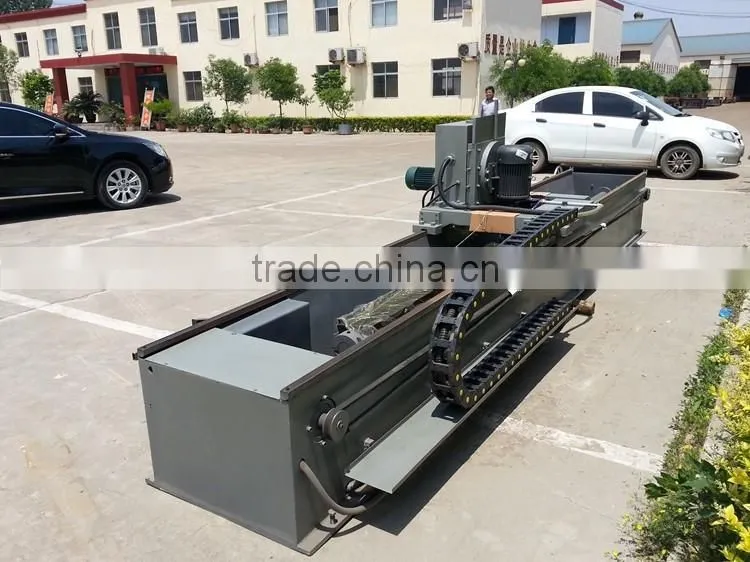

3. Knife grinding machine for plywood production line

Model	YM3000
Max. grinding length	3000mm
Working-table width	180mm
Grinding head motor power	4kw, 380V-50Hz 3phase
Wheel rotation rate	1400r/min
Linear speed for grinding wheel	15m/s
Speed of sliding plate	Variable speed
Tilting range for working-table	±90°

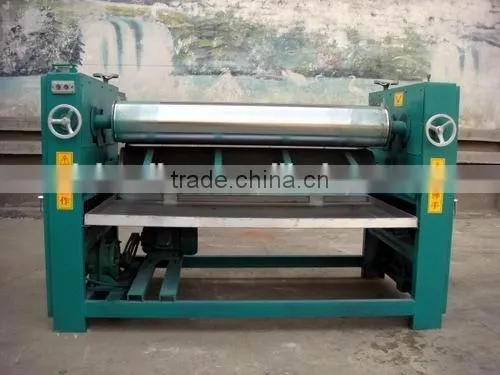

4. Mix glue machine and 8 feet glue spreader for plywood production line

Model	SGTJ-1400
Max. Processing Length	1400mm
Max. Working Thickness	60mm
Rubber Roller Diameter	310mm
Chromate Treatment Roller Diameter	240mm
Number of Roller	4pcs
Glue Spreading Speed	12-60m/min
Motor Power	5.5kw
Overall Dimension	3400x1200x1300mm
Weight	1.2T

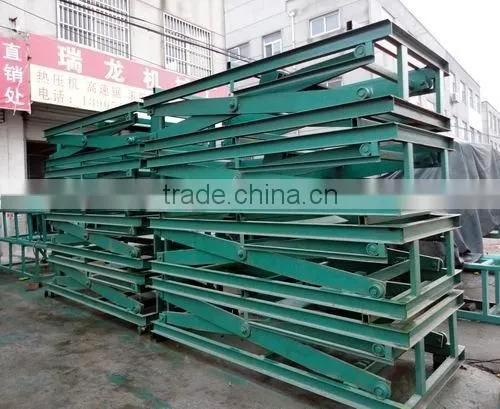

5. Hydraulic lifter for plywood production line

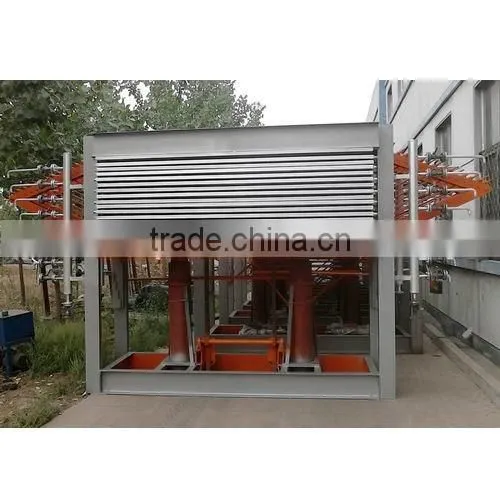

6. Assembly cold press machine for plywood production line / plywood production machine / plywood making line

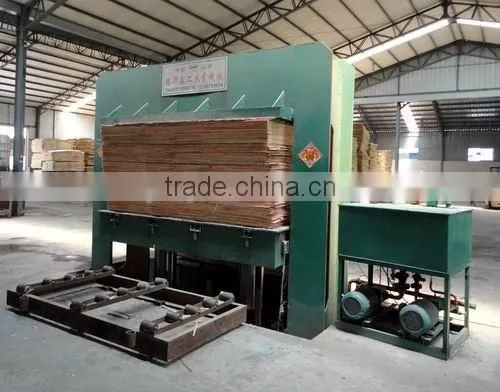

7. Assembly hot press machine for plywood production line / plywood production machine / plywood making line

Model	TLY214X8/12
Nominal pressure	1200 TN
Board feeding direction	Transverse
Number of layers	1 layer
Distance of layers	300 mm
Number of hot press plate	2 pcs
Hot press plate size	1400x2600x120(100) mm
Main plunger case diameter and number	320x300 mm 6 pcs
Compression resistance	≤25 MPa
Position of the plunger case	Up
Closing time of no-work	About 5 s
Upgrade plunger case diameter and number	110x300 mm 2 pcs
Compression resistance	≤12 MPa
Electrical machinery power	37 kw
Appearance size	3490x1400x3200 mm
Weight	36 t
Thickness steel	16,20,30,50 mm
