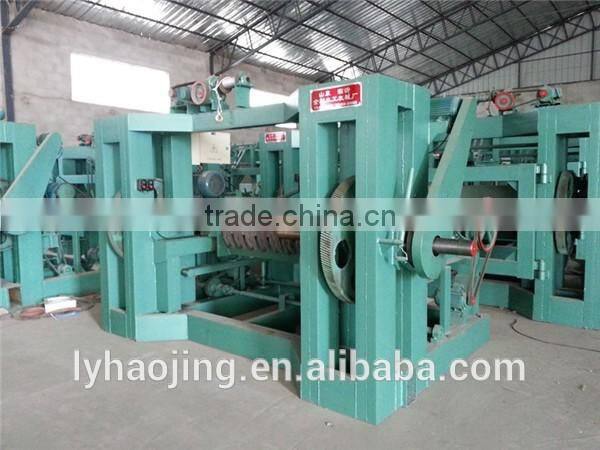

8 feet spindle rotary veneer peeling lathe machine for face veneer
Main features of 8 feet spindle rotary veneer peeling lathe machine for face veneer
1. This machine is used to peel log without skin to core veneer/face veneer and continue peeling
log core after spindle peeing. It is very popular for plywood industry.
2. CNC Spindle Veneer Peeling Lathe, with hydraulic system for knife installation which makes
easy to change knife when need to grind and save time.
Technical specifications of 8 feet spindle rotary veneer peeling lathe machine for face veneer
Model | LXQ260 |
Log dimension processing (D*L) | 1200*2700 mm |
Veneer thickness range | 0.3-1.2 mm |
The smallest diameter core | 150 mm |
Total motor | 35.5kw, 380V-50Hz 3phase |
Chief motor | 30kw, 380V-50Hz 3phase |
Reference output | 25m3/day |
Spindle peeling lathe dimension | 5800*2200*2720 mm |
Spindle peeling lathe weight | 7.2ton |
Clipper Max. working width | 2650mm |
Max. travel of shears | 55mm |
Max. number of shearing | 30t/min |
The thickness of clipping veneer | 0.4-3mm |
Feeding speed | 0-40m/min |
Motor power of inlet conveyor | 1.1kw, 1.5kw, 380V-50Hz, 3phase |
Electrical veneer clipper dimension | 3200*1700*1000mm |
Electrical veneer clipper weight | 1.2ton |
Remark: When the machine is improved, the appearance and the indexes should be standardized
according to the physical goods.
Working procedure of 8 feet spindle rotary veneer peeling lathe machine for face veneer
8 feet spindle rotary veneer peeling lathe machine for face veneer packaging in nude, 2sets/40ft container
Feixian Ruihao Machinery is a key enterprise as a professional wood veneer production line
manufacturer for 26 years. Our main product is including: wood debarking machine, wood rotary
peeling and cutting machine, veneer drying machine, veneer core building machine, knife grinding
machine and accessories for woodworking machinery.
We are famous for competitive price, best service, high quality and timely delivery.
Warmly welcome customers home and aboard to cooperate with us in business!
8 feet spindle rotary veneer peeling lathe machine for face veneer
After sales service:
I. Short time abroad service: 3-10 days, one person. The buyer should pay the round-trip air
tickets, foods, accommodation and service fee. The services include fixing, debugging, operating,
maintaining and workers’ training.
II. The buyer sends workers to seller’s factory for study: 3-10 days, one person. The buyer should
pay for the round-trip air tickets. The seller arrange for food and accommodation. The services
include fixing, debugging, operating, maintaining.
Payment Terms: By T/T. 30% payment in advance, the balance should be paid before shipment.
Delivery Time: Within 15 working days after advance.
Validity: Within 30 days after the date.
Guaranty for 12 months.
If you have any other questions, please send us your inquiry, we will contact with you as soon as possible!!!
