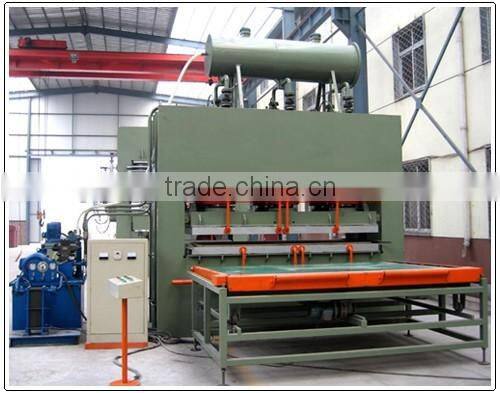

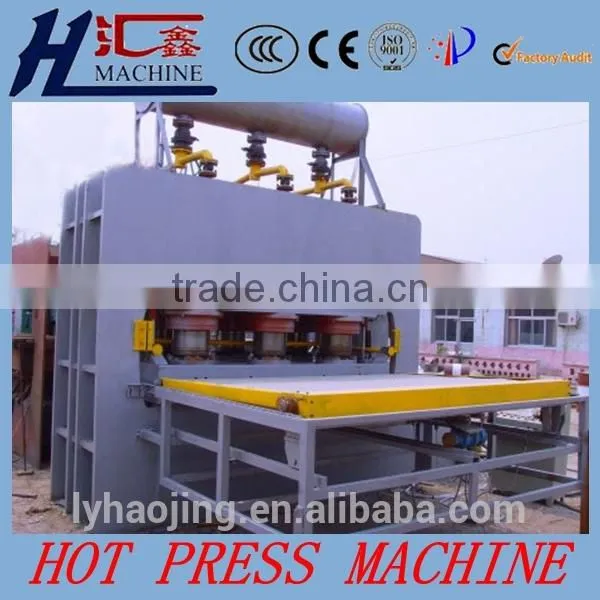

Wood Hydraulic Hot Press Machine/Hot Press for Plywood Production
Brief introduction of Wood Hydraulic Hot Press Machine/Hot Press for Plywood Production
- The heating medium,it can choose thermo oil and heat steam for our customer.
- The control system,the control system can be automatic and manual. Automatic control are carried out by PLC control,which using OMRON as main electrical parts, use big size touch screen to operate.
- Technology of hydraulic system. All the hydraulic system is from shanghai who has same technology with Japanese.
- Structure. The whole structure adopts thicken steel sheet(30mm). We promise: Our steel sheet which using in our hot press machines,it is solid steel.
- The main frame is welded by good quality NO1 standard steel plate, good design of frame and structure, strong rigidity, and ensure high pressure.
- Microcomputer control system is made by good quality hydraulic unit, fast press, accurate press, high efficiency.
- The hydraulic circuit is composed of integrated blocks and compact in structure, ensuring accurate and reliable action of the system.
Model | TLY214X8/12 |
Nominal pressure | 1200 TN |
Board feeding direction | Transverse |
Number of layers | 1 layer |
Distance of layers | 300 mm |
Number of hot press plate | 2 pcs |
Hot press plate size | 1400x2600x120(100) mm |
Main plunger case diameter and number | 320x300 mm 6 pcs |
Compression resistance | ≤25 MPa |
Position of the plunger case | Up |
Closing time of no-work | About 5 s |
Upgrade plunger case diameter and number | 110x300 mm 2 pcs |
Compression resistance | ≤12 MPa |
Electrical machinery power | 37 kw |
Appearance size | 3490x1400x3200 mm |
Weight | 36 t |
Heating methods | HTF |
Working methods | Automatic |
Composite frame | Assembled |
Thickness steel | 16,20,30,50 mm |

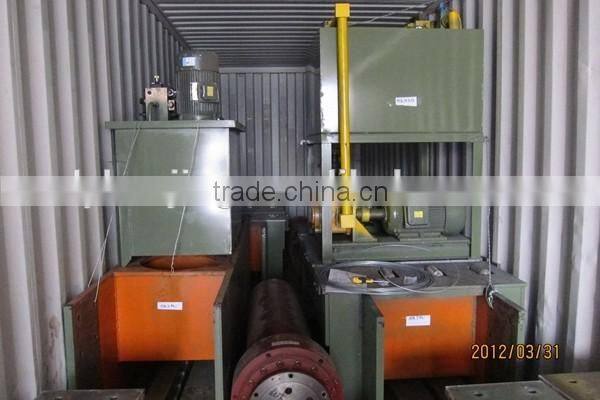

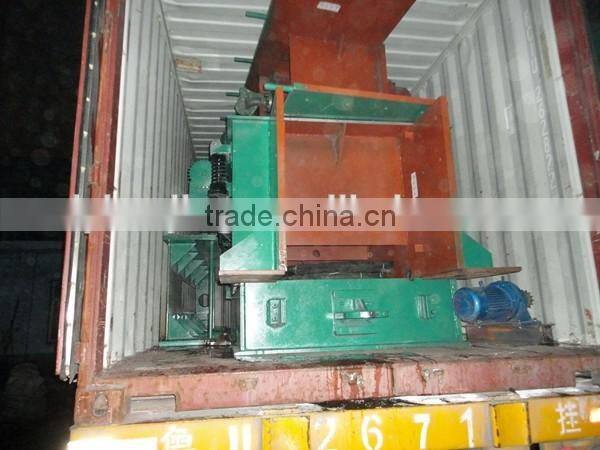

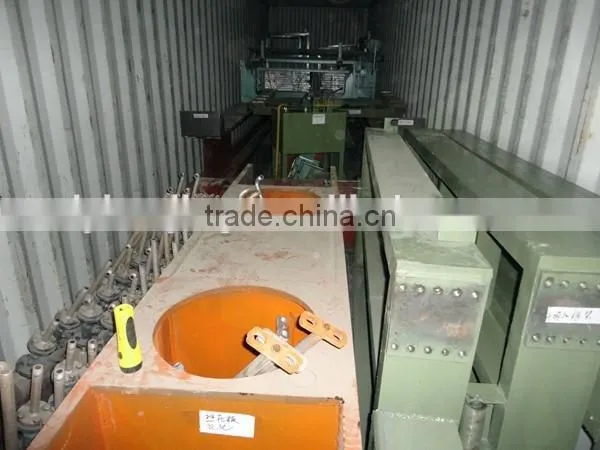

Wood Hydraulic Hot Press Machine/Hot Press for Plywood Production usually packed in nude.
Wood Hydraulic Hot Press Machine/Hot Press for Plywood Production
I. Short time abroad service:
10-30 days, one person. The buyer should pay for the round air fare, foods and accommodation; and the service including: the machine’s fixing, debugging, operating, maintaining and people’s training.
II. The buyer sends people to seller’s factory for study:
one month and one person. The buyer should pay for the round air fare, and the seller arrange for food and accommodation, and the service including: the machine’s fixing, debugging, operating, maintaining.
Feixian Ruihao Machinery is a key enterprise as a professional wood veneer production line
manufacturer for 26 years. Our main product is including: wood debarking machine, wood rotary
peeling and cutting machine, veneer drying machine, veneer core building machine, knife grinding machine and accessories for woodworking machinery.
We are famous for competitive price, best service, high quality and timely delivery. Warmly welcome customers home and aboard to cooperate with us in business!
Wood Hydraulic Hot Press Machine/Hot Press for Plywood Production
1. All kinds of mold can be made by customer's requirements
2. All price are based on FOB, QINGDAO, China
3. Payment: by T/T 30% down payment, 70% upon machinery completion.
4. Delivery: After finishing all the payment
5. All the parameters above just for reference, for they are updating all the time
6. Package: Standard packing
If you have any other questions, please send us your inquiry, we will contact with you as soon as possible!!!
Gary Gu
Mobile: +86 13665395656 (WhatsApp)
Fax: +86 539 3106773
Mail: info at
