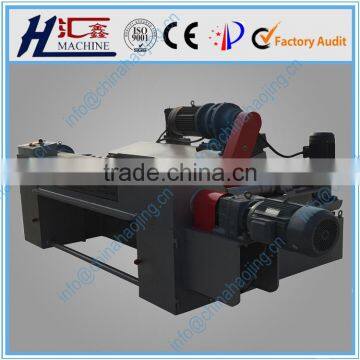

Spindless Veneer Rotary Lathe
Mainly features of Spindless Veneer Rotary Lathe
1. Rotary peeling and cutting are all together.
2. Wood rotary peeling Maximum Diameter is 500mm.
3. The thickness of the veneer, the gap of the knife can be adjusted automatically by itself. So the workers needless
adjust the knife gap by hand.
4. The clipping section could cut the last veneer that is for full size.
5. Feed screw use oil immersion method, improve the service life of the whole machine
6. Compact structure, stable performance, simple operation and high efficiency and other advantages.
Product technical specifications:
Model | WKZ-500 |
Log dimension processing (D*L) | 500*1400 mm |
Veneer thickness range | 0.3-4.0mm |
Rotary knife specification (L*W*T) | 1400*130*12.7 mm |
The smallest diameter core | 28 mm |
Wire speed of friction roller | 38m/min |
Diameter of friction roller | 150mm |
Reference output | 20-30m3/day |
Power detail | 380V-50Hz 3phase |
Roller engine | 2pcs * 7.5kw |
Feeding engine | 1pc * 5.5kw |
Rotary clipper engine | 2pcs * 2.2kw |
Cutting working width | 500-2000mm |
The thickness of clipping veneer | 0.3-4.0mm |
Feeding speed | 0-100m/minute |
Product dimension (L*W*H) | 4700*2200*1600mm |
Weight | 5.4 tons |
Remark: When the product is improved, the appearance and the indexes should be standardized according to the
physical goods.
Photos of Spindless Veneer Rotary Lathe
Peeling and cutting are all together
Control table
Cross friction roller
Electric wire protect jacket
Veneer clipper
Big screw and protect jacket
Spindless Veneer Rotary Lathe usually packed in nude, 2 sets/40' container or according to your requirements.
Spindless Veneer Rotary Lathe
After sales service:
I. Short time abroad service: 3-10 days, one person. The buyer should pay the round-trip air tickets, foods, accommodation and service fee. The services include fixing, debugging, operating, maintaining and workers’ training.
II. The buyer sends workers to seller’s factory for study: 3-10 days, one person. The buyer should pay for the round-trip air tickets. The seller arrange for food and accommodation. The services include fixing, debugging, operating, maintaining.
Ruihao Machinery is a key enterprise as a professional veneer production line machines manufactory in Shandong for 28 years. Our products including: log debarker, wood rotary peeling and cutting machine, veneer dryer, veneer jointing machine, sliding table saw, knife grinder and accessorial for production line. We supply woodworking machinery with high quality and competitive price. Warmly welcome customers home and aboard to cooperate with us in business.
Payment Terms: By T/T. 30% payment in advance, the balance should be paid before shipment.
Delivery Time: Within 15 working days after advance.
Validity: Within 30 days after the date.
Guaranty for 12 months.
One English Manual and Video Instruction
