Home > Products > Three-dimensional Geonet > Drainage net (tunnel draniage board)
Drainage net (tunnel draniage board)
- 10000 Square Meter / Square Meters per Month
- Qingdao
- T/T Credit Card
- 10mm thick 13kg flexible composite cement blanket with compressive strength of 40Mpa and flexural strength of 20Mpa
- Cement blanket 10mm thick, weighing 12.5kg, 2 meters wide, and 50 meters long
- Mesh interwoven drainage board, plastic geotextile mat, seepage drainage 30mm thick
- 3cm thick mesh interwoven drainage board plastic geotextile mat
- Polypropylene Geotextile 800g polyester long fiber geotextile white
- 6000g natural nanogel coated bentonite waterproof blanket for underground garage of Grand Hotel
Product Details
Place of Origin: | Shandong, China | Brand Name: | LWXR | Model Number: | geotextile |
Geotextile Type: | Non-Woven Geotextiles |
Product Description

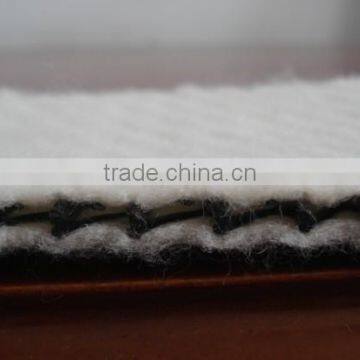

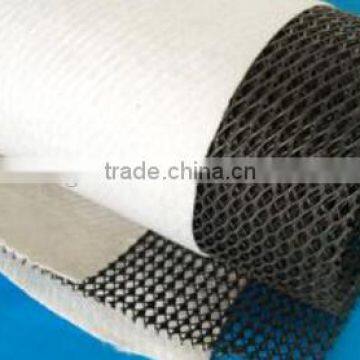

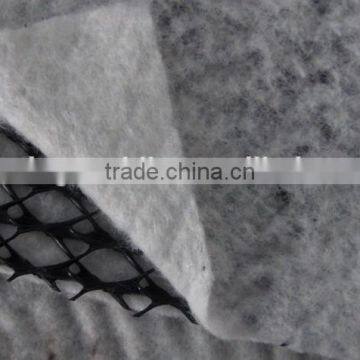

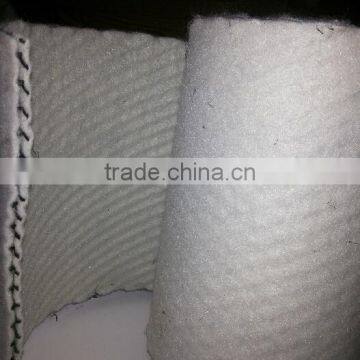

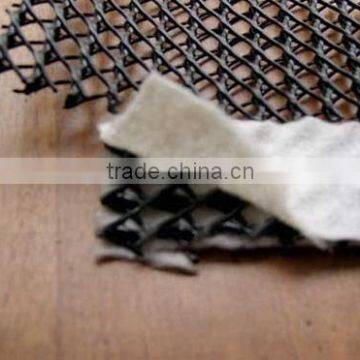

Drainage net (tunnel draniage board)
Introduction
3D road used drainage net is a unique three-dimensional double-sided sticky geonet and nonwoven geotextile made of. Integration of geotextiles (filtration effect) and geonet (drainage and reinforcement effects), played a "filtration - Drainage - to protect" the overall effect. Unique three-dimensional three-dimensional composite drainage network structure, in the course can withstand high pressure loads, and can maintain a considerable thickness, high tensile strength, corrosion resistance, acid and alkali, drainage capability, which provides a very high hydraulic conductivity
Feature:
3D road used drainage net
1.Good water permeability
2.Corrosion resistance
3.Microbial resistant
4.Good permeability
5.Good water conductivity
6.High tensile strength
7.Strong resistance to deformation
8.The mesh is not easily blocked
9.Excellent drainage performance
10.Anti-aging,anti-acid and alkali
11.Can accommodate irregular deformations
12.Creep, corrosion and abrasion resistance
13.Safe and easy for construction
Application:
3D road used drainage net
1. Hydraulic Engineering: Inverse filtering & protection in reservoir dam, earth rock cofferdam,tunnel, gutter way, etc; Protection for impervious layer in artificial lake, riverway, reservoir, etc;
2. Road Works: Drainage work in retaining wall, road side slope, roadbed, underlayer of railway & airfield runway, interlayer for roadbed & pavement in highway & asphalt road 3. Harbor Engineering: Isolation of soft soil and rock block in cofferdam, dock and sea back;
4. Landfill Site Projects: Isolation & protection of impervious layer and basement, isolation of filter material & waste in land fill site;
5.Landscape Engineering:Isolation between green plant layer & base in landscape planting projects.
6.Other Usage: Drainage & reinforcement for week ground work (increase its bearing capacity);
Isolation & impervious layer for power plant, mill tailings, etc.
Drainage Net Paramemter Index:
NO. | Item | Specification | Note | |||||||||||
100 | 150 | 200 | 250g | 300 | 350g | 400 | 450 | 500 | 600 | 800 | ||||
1 | Weight Variation% | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
| |
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | ||
3 | Width Variation % | -0.5 | ||||||||||||
4 | Breaking Strength KN/m ≥ | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 |
| |
5 | Elongation at Break % | 25~100 | ||||||||||||
6 | CBR Mullen Burst Strength KN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
| |
7 | Sieve Size O90 mm | 0.07~0.2 |
| |||||||||||
8 | Vertical Permeability Coefficient cm/s |
K× (10-1~10-3)
| k=1.0-9.9 | |||||||||||
9 | Tear Strength KN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | MD and TD | |
