Specifications
Geotextile filter fabric non-wovenexcellent permeabitlity
good flexiblity
acquired and durability
easy for constr

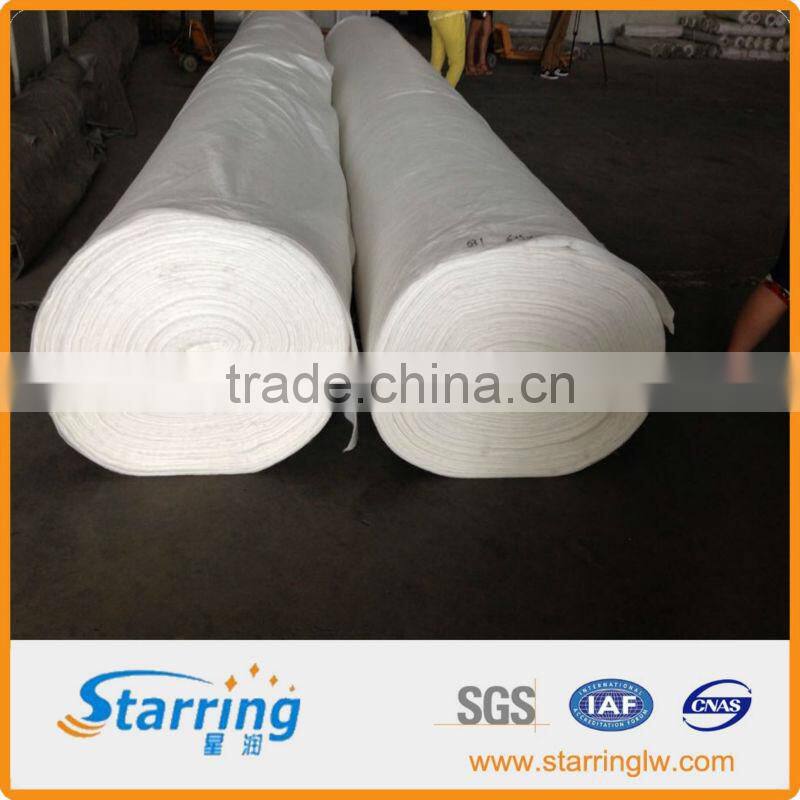

Geotextile filter fabric non-woven
Geotextile filter fabric non-woven introduction
We supply a range of both polypropylene and polyester geotextiles used for separation, filtration and reinforcement applications. These include: needle punched staple fibre geotextiles; continuous filament spunbonded geotextiles; stitch reinforced non woven fabrics and thermal embossed fabrics suitable for reusable carry bags with an exceptional degree of uniformity.
The company's modern equipment, ISO9001 accreditation, continuous development and investment programme delivers geotextiles manufactured to the highest international standards. Each batch laboratory tested and certified.
Our highly uniform non-woven fabrics are used in Australian coating factories to manufacture termite barriers, waterproof liners and high performance petrolatum wax tapes.
Geotextile filter fabric non-woven features
- High porosity - allows air & water to permeate
- Helps reduce weed growth
- Reduces sinkage
- Stops mixing of substrates with top dressings
- Reduces depth of sub-base required
- Variety of sizes available to suit your project and to minimise waste
- Calendered both sides for extra strength
Geotextile filter fabric non-woven Application:
Permeable Non-woven Geotextile Membrane are available for subgrade separation, reinforcement and applications such as reinforcing soils where extremely high tensile strength with low elongation is required. High strength woven polyester geotextiles are used in a wide range of projects including:
- Block paviour drives
- Domestic patios
- Under cellular grids
- Land drains
- Attenuation & harvesting tanks
- Under turf
- Stabilisation using a vibrating plate
- Under wet pour/safety mats
- Horse Menege between type 1 & top dressing
- Retaining walls
Geotextile filter fabric non-woven technical detail
Item |
Value |
||||||||||||||
Nominal Breaking Strength KN/m≥ |
4.5 |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
||||||
1 |
Breaking Strength (CD/CMD)KN/m≥ |
4.5 |
7.5 |
10.0 |
15.0 |
20.0 |
25.0 |
30.0 |
40.0 |
50.0 |
|||||
2 |
Elongation at Break % |
40-80 |
|||||||||||||
3 |
CBR Mullen Burst Strength KN≥ |
0.8 |
1.6 |
1.9 |
2.9 |
3.9 |
5.3 |
6.4 |
7.9 |
8.5 |
|||||
4 |
Tear Strength (CD/CMD) KN≥ |
0.14 |
0.21 |
0.28 |
0.42 |
0.56 |
0.70 |
0.82 |
1.10 |
1.25 |
|||||
5 |
Sieve Size O90 mm |
0.05-0.20 |
|||||||||||||
6 |
Vertical Permeability Coefficient cm/s |
(1.0-9.9)×(10-1~10-3) |
|||||||||||||
7 |
Thickness mm≥ |
0.8 |
1.2 |
1.6 |
2.2 |
2.8 |
3.4 |
4.2 |
5.5 |
6.8 |
|||||
8 |
Unit Weight g/m2 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
|||||
9 |
Width Variation % |
-0.5 |
|||||||||||||
10 |
Weight Variation % |
-5 |
|||||||||||||
pls feel free to contact us:
