Specifications
LS 800 Geomembrane welding machineHeating temperature : 0-450 degree
Thickness of material be welded: 0.2-1.5mm

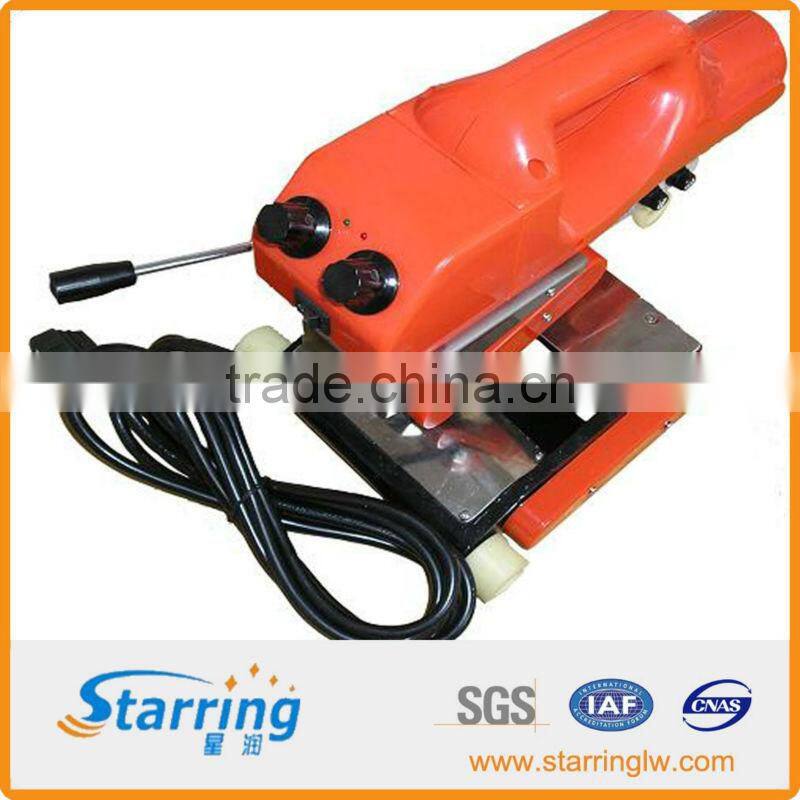

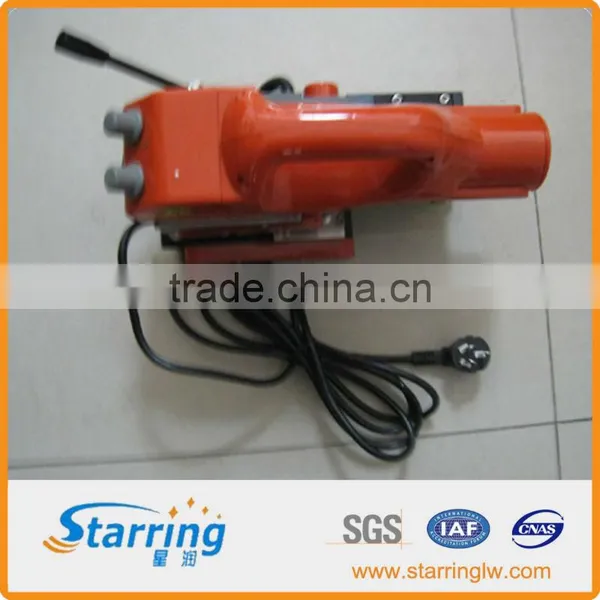

LS 800 Geomembrane welding machine
LS 800 Geomembrane welding machine Description:
1.Geomembrane welding machine can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and the like.
2.The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation;
3.Speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor, with great output torque and the operating is stable.
4.It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.
5.This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on
LS 800 Geomembrane welding machine Characteristics:
1. Aim at thin materials such as PVC and geotextile, light and rapid.
2. Aim at the thickest HDPE geomembrane, heavy load and high torque.
3. Simple operation, long working time, good effect even use thin materials.
4. No need for adjust the machine again for welding materials with various thicknesses (such as 40, 60, 80mil)
5. Adjustable rod for controlling membrane fold and bottom pad, fit for indoor high speed operation.
6. 9.8m/min
7. Simple operation, it only needs to press button for speed and temperature control.
LS 800 Geomembrane welding machine Technical Information:
LS 800 |
PARAMETER |
Voltage |
220V |
Frequency |
50Hz |
Rate of Work |
750W |
Temperature range |
0-450°C |
Welding speed |
2 m/min |
Welding thickness |
0.2-1.5mm (Single membrane thickness) |
Welding width |
12.5mm*2 Interior Cavity:12mm |
Adding weight |
10KG |
Net weight |
5Kg |
