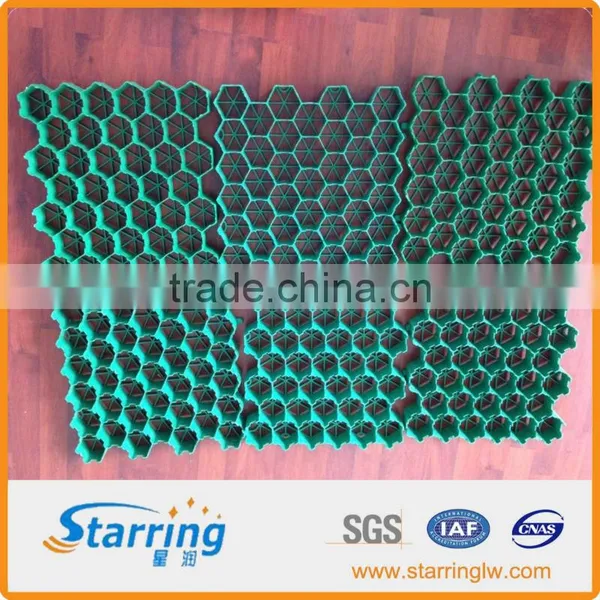

410x390mm grass grid

Specifications

410x390mm grass grid
German technology and raw material
pressure resistance, wear resisting
anti- impact, anti- aging, anti-

                          410x390mm grass grid

410x390mm grass grid Introduction:

Grass cell  is the perfectly realized lawn together with parking place, promoted the quality and saves the investment. Special direct joining, saving time and quickly, can adjust the expansion joint. It uses modified macromolecular weight HDPE as raw material, environmentally sound, recyclable, and it uses the German technology and raw material, pressure resistance, wear resisting, anti- impact, anti- aging, anti-corrosive



The unique patented fastening system makes it extremely efficient and easy to use, with the added advantage of being constructed from 100% recycled high density polyethylene. The product has been used extensively across Europe for many years and is now becoming a brand leader in North America. EcoGrid/EcoRaster is the industry leader in environmentally sustainable geogrid and offers numerous maintenance and cost benefits over other porous pavement solutions. With its patented tab locking system, Turf paver is the best engineered permeable paver and soil stabilization product available today.



410x390mm grass grid Feature:

1.Light and easy to install

2.Durable and resist compression

3.Integrality and flatness



Grass cell  Joining: Conveniently direct joining, adjusts expansion joint, adapt temperature change.
410x390mm grass grid suggestion :
1. Foundation soils should be tamped; Compactness achieves more than 85%.
2. Paving 300 thick crushed stones as supporting layer (fire traffic lane is 600 thick), roller compaction.
3. Paving 20 thick crushed stones and coarse sand as the level.
4. Paving grasses standard can cut off to the proper shape, between the standard leave several millimeters.
5. Sowing soil in standards, 1 centimeter to upper layer.
6. Sowing turf or seed. When sowing, turf must be compacted. After the grass grows well, it can park the car.



410x390mm grass grid  Index:





Material	PP or HDPE
Specification	500mm(L)×250mm(W)×40mm(H)±5mm
Anti-pressuring cylinder size	80mm(long)×60mm(width)×40mm(high)±5mm
Weight	≥3.75Kg/m2
Anti-pressuring cylinder number	≥128/m2
Anti-pressuring cylinder wall thickness	≥2.0mm
Anti-pressuring cylinder compressive strength	:≥65ton/m2
Anti-pressuring cylinder pore number	≥4
Shape	square or round
