Drainage Cell for Highway/Driveway/Roof decks/Tunnel/Landfill Drainage
Drainage Cells provides a uniform surface as well as an internal void space for effective draining of excess water.
Drainage Cell provides a perfect Solution for sub-soil drainage application for creating successful Highway,paver,roof deck,tunnel,landfill,etc, without any traditional problems associated with cracking or leakage.
High Summer temperatures can cause thermal expansion in concrete and can cause waterproofing to crack, Drainage Cell system due to its unique design, lightweight, high compressive strength and void properties help this heat to escape and hence reduce the risk of cracking, enhancing building life.Also make it ideal for roof gardens , podium landscaping, retaining walls, sports fields ,golf courses, under drains for slabs and foundations and subsurface drainage for permeable driveways and car parks.

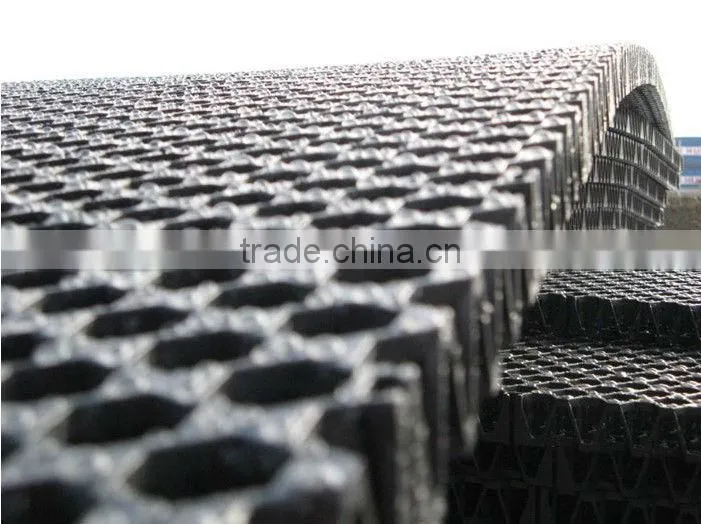

Drainage Cell has a unique Diamond CUP structure which provides water retention for passive irrigation and helps building a perch water table in the above soil profile for the vegetation to flourish in prolonged dry periods.
Drainage Cell Further Information:
Model | Materials | High(mm) | compressive strength ≥Kpa | tensile strength ≥N/5cm | breaking elongation | Volume ≥cm3/s
| Puncture strength |
SY-PS10 | HIPS | 10 | 320 | / | / | 6.40 | 320 |
SY-PS12 | HDPE/HIPS | 12 | 300 | / | / | 7.20 | 320 |
SY-PS20 | HIPS | 20 | 300 | / | / | 12.80 | 420 |
SY-PS30 | HDPE/HIPS | 30 | 350 | / | / | 18.20 | 420 |
SY-PE10 | HDPE | 10 | 300 | 300 | 6.40 | 320 | |
SY-PE20 | HDPE | 20 | 320 | 12.80 | 420 |

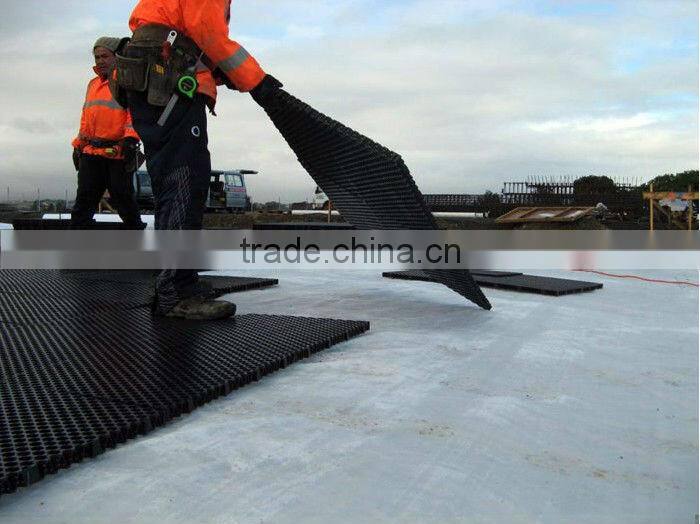

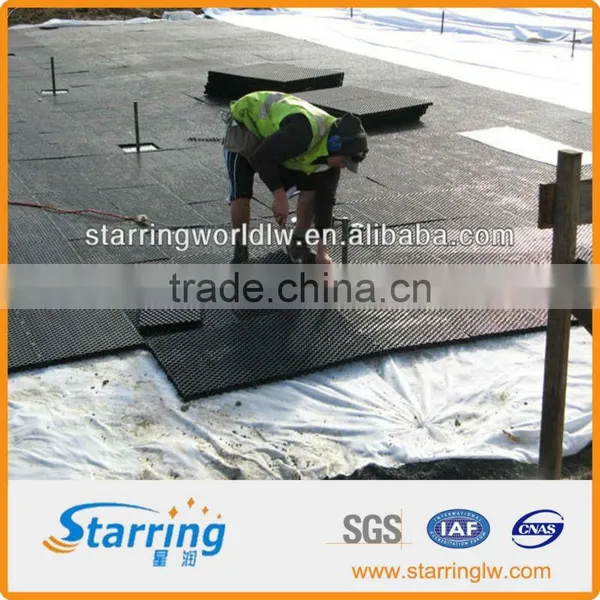

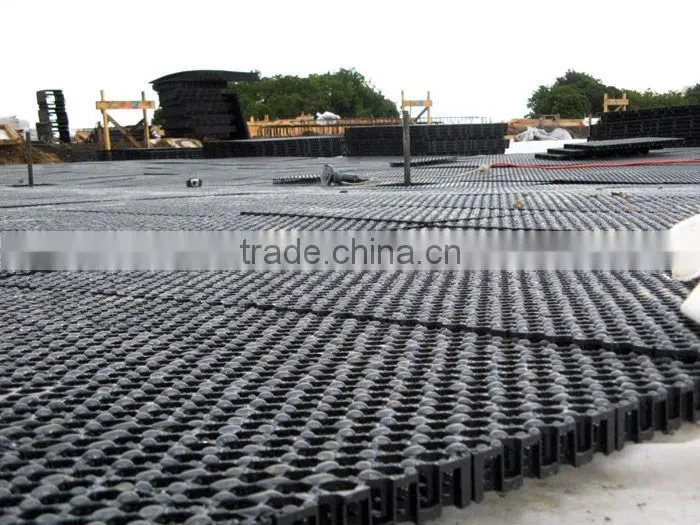

DrainageCellInstallation Method :
1. The waterproof layer and layer is completed, began to shop installs drainage plate. The drainage slope requirements 2‰~5‰
2. Green roof can match the use of porous, so that can put the water focus drain –pipe nearly .
3. Geotextil covers storge board . The egdes 10-20cm Prevent mud through the geotextile..
4. In the feld of shop above 10 to 20 mm of coarse sand filter layer infiltration, form, can prevent soil erosion planting
Pls Feel Free to Contact us:
