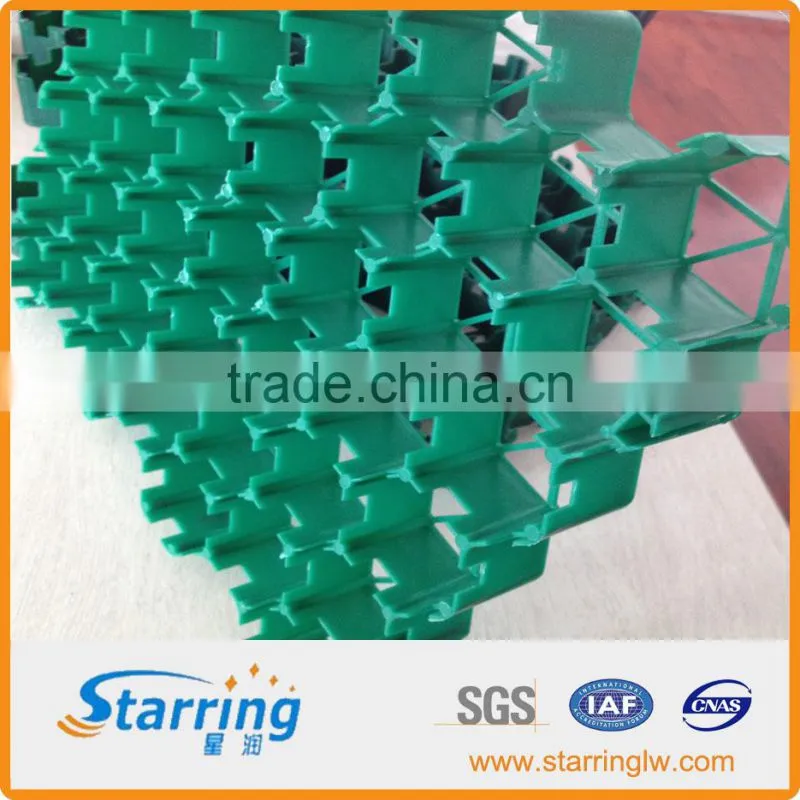

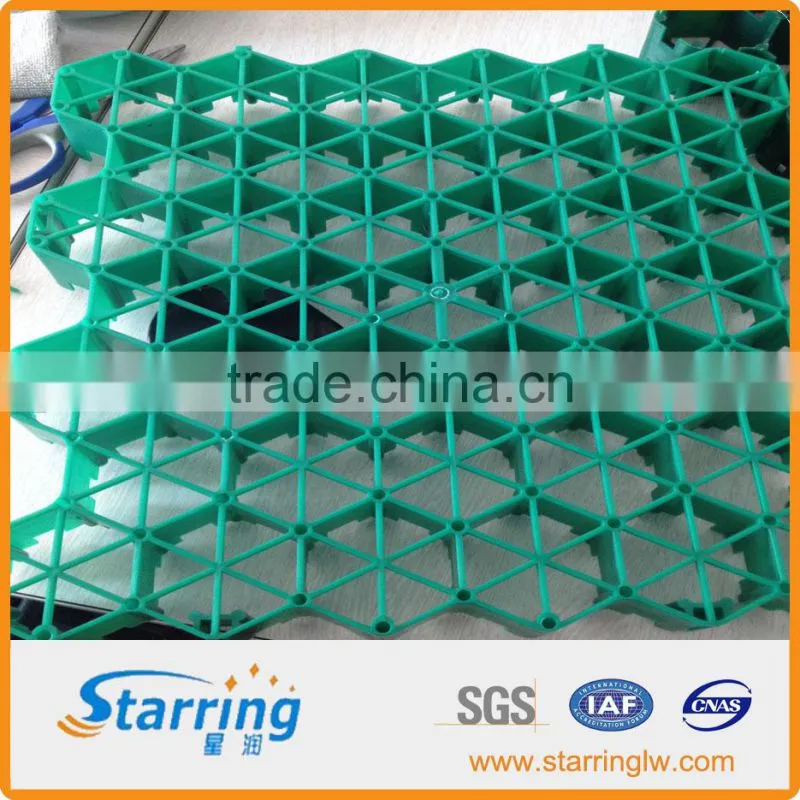

Plastic Grass Paver
Product Description: With a Average compressive strength >3Mpa. Grass Paver stabilize the soil to support heavy vehicles like fire trucks while allowing turf to grow. Manufactured from modified macromolecular weight HDPE, glass fiber, nanometer Oxides, pigment (standard proportion).these grass pavers are a sustainable solution for areas of high traffic that might otherwise be covered with traditional asphalt or concrete.
Product Features:
Perfect Greening: Grass grids offer 95% grass area, completing green effect could absorb noise, dust, heat and reduce the glare produced by the ground reflection.
Save investment: Grass grids combined parking garage and greening.
Formation integrity: a unique and strong grass grid snap-lap the whole pavement together into a flat overall, to avoid local depression, suitable for exercise, entertainment and leisure.
High strength and durability: Grass grid using patented technology, the maximum compression capacity of 200 tons/sqm, greater than regulatory requirements of the saving fire plane 32 tons/sqm. It's stable performance, anti-UV, anti acid corrosion, wear pressure, making the fire exits, fire climb surface into a green surface.
Permeability: load-bearing layer of gravel to provide a good permeability function, the excess water into the ground and increase underground water storage to prevent subsidence. It's not only could oxygen permeability also can purify the air.
Protection of grass: load-bearing layer of gravel to provide a certain amount of water features, enabling the growth of grass, grass can grow to the gravel layer.
Water conservation: Grass has water conservation functions to reduce urban waterlogging.
Good weather resistance: can be used for snow riding channel for -40-90 C..
Material | HDPE |
Specification | 410mm(L)×390mm(W)×38mm(H) 410mm(L)×390mm(W)×50mm(H) 410mm(L)×390mm(W)×70mm(H) |
Supporting Capacity | 200ton/square meter |
Weight | ≥3.5Kg/m2 |
Average compressive strength | >3Mpa |
Anti-pressuring cylinder wall thickness | ≥2.0mm |
Anti-pressuring cylinder compressive strength | :≥200ton/m2 |
Anti-pressuring cylinder pore number | ≥4 |
Shape | square or round |
Product Application Range: Fire lanes, emergency vehicle access roads, truck maintenance and equipment yards, construction entrance soil stabilization, truck & cart wash-down areas, RV
Construction suggestion
1. Foundation soils should be tamped; compactness achieves more than 85%.
2. Paving 300 thick crushed stones as supporting layer (fire traffic lane is 600 thick), roller compaction.
3. Paving 20 thick crushed stones and coarse sand as the level.
4. Paving grasses standard can cut off to the proper shape, between the standard leave several millimeters.
5. Sowing soil in standards, 1 centimeter to upper layer.
6. Sowing turf or seed. When sowing, turf must be compacted. After the grass grows well, it can park the car.
