waterproofing HDPE Drain sheet
waterproofing HDPE Drain sheet Introduction

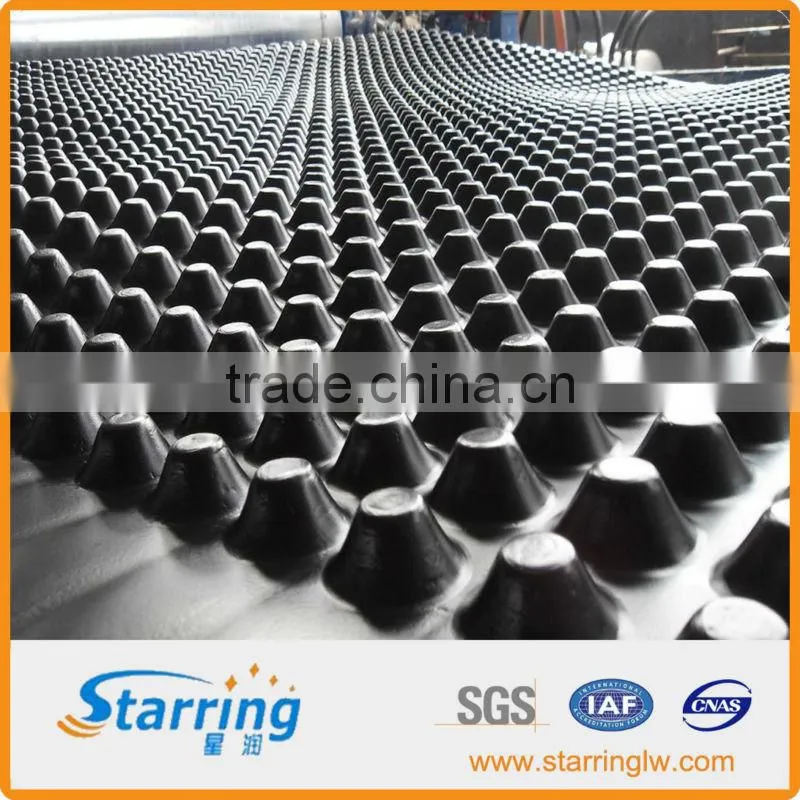

Drainage /board geomembrane is made of high molecular, produced by extrusion and adsorption. The tri-dimensional space can drain gas and fluid. It is a multi-functional material, can form channels for water and gas easily, which is sound insulation and vibration isolation. In the field of civil construction can be widely used in building roof system layer overhead, planted roof drainage ventilation, basement waterproofing system protection, thermal and moisture isolation of the interior surface, road and rail tunnel drainage protection. In the urban land, space, material resources are becoming scarce today, Drainage geomembrane to provide the most valuable option.
waterproofing HDPE Drain sheet Features:
1 Durable, resist compression and light weight
2 Strong drainage capacity
3 Soundproofing, waterproofing and dampproofing
4 Saving investment and environmental protection for projects
waterproofing HDPE Drain sheet Application:

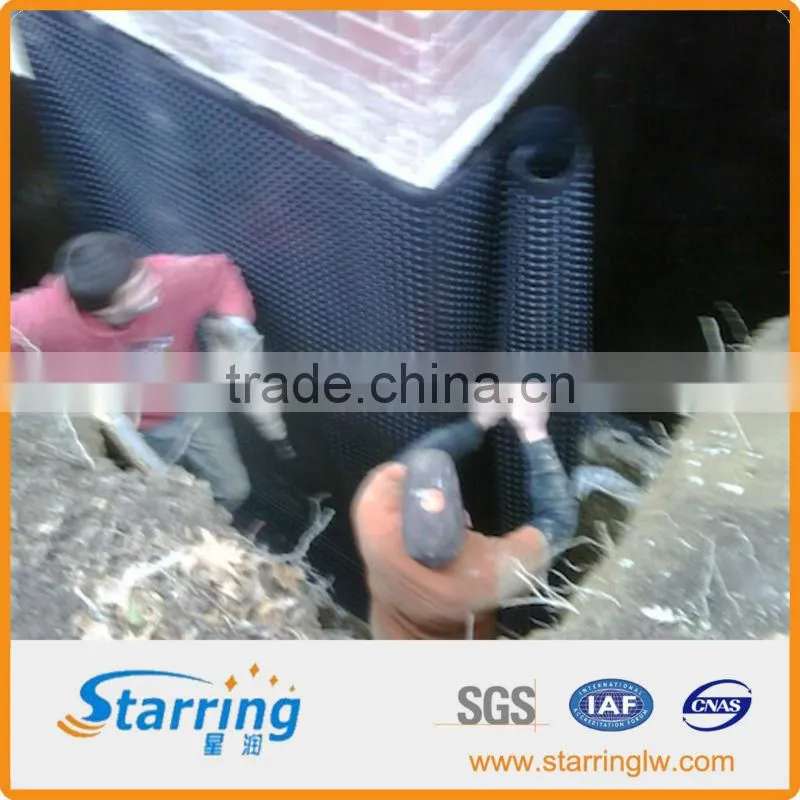

1.Sheet Drains for single side drainage applications are prefabricated products that consist of a solid, formed, three dimensional core covered with a geotextile filter fabric bonded to the dimple side of the core. The filter fabric is securely bonded to prevent soil intrusion into the core flow channel while allowing water to freely enter the drainage core.
2. Sheet drains solid cores allow water entry from one side and are typically used to collect and re-direct water from a structure or site.
3. Sheet drains are designed for use in both vertical and horizontal drainage applications. Designed to provide full drainage for large surface areas, sheet drains are constructed to various strength, flow and soil filtration requirements for a wide range of construction applications.
4.Sheet drains collect and transport significantly more water than aggregate systems and are constructed using recycled materials providing a sustainable, cost effective drainage alternative.
5.Sheet drains are available in 2.4m) wide sheets in rolls 20m long. The core height is 10-25mm thick.
waterproofing HDPE Drain sheet Technical Information Table:
|
Model Standard |
HW-PED8 |
HW-PED10 |
HW-PED12 |
HW-PED15 |
HW-PED20 |
HW-PED25 |
HW-PED30 |
Thickness mm≥ |
8 |
10 |
12 |
15 |
20 |
25 |
30 |
Elongation percentage(%)≥ |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
Tensile strength(N/5cm) |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
Compressive strength(kPa) ≥ |
200 |
200 |
200 |
150 |
150 |
150 |
150 |
Pls feel free to contact us:
