Product Details
Place of Origin: | Shandong, China | Brand Name: | Starring | Model Number: | TGSG |
Material: | Other, Plastic, PP and HDPE |
Product Description

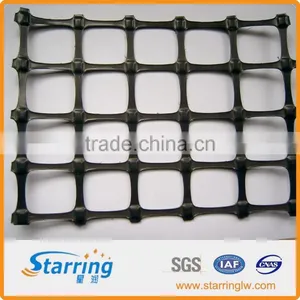

Biaxial Plastic Geogrid Fabric
Product Introduction
I.Made of Polypropylene (PP);
II.Strong tensile strength in both vertical and horizontal directions;
III. Widely applied in reinforcement and strengthen of permanent load-caring foundations;
Product Features &Application
PP biaxial geogrids can be used to enhancement of permanent bearable soft including highway and railways embankment, slopes, tunnel, airport, parking lots, loaded pier and ground and their main usage are as follows:
1. enhance the bearing capacity fo road foundation and extend the duration of highway.
2. prevent highway surface from collapse, crack and being dirty.
3. be convenient for construction timesaving and cut down the cost of maintenance.
4. prevent tunel from crack occuring
5. further solidity slopes to proof water and soil from losses
6. reduce the surface thickness of the ground.
7. consolidate the net for growing grass on the slopes
so as to stabilization surrounding virescence.
8. be used for artificial top net of mines instead of metal ones.
It is of flame retardant and antistatics.
Product Technological Standard
Project | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 |
Mass-area ratio, (g/m) | 300±30 | 300±30 | 400±40 | 500±50 | 550±50 | 600±50 |
Width, (m) | 1-6m | |||||
Each longitudinal tensile yield strength, (KN/m) | 15 | 20 | 30 | 40 | 45 | 50 |
Each horizontal tensile yield strength, (KN/m) | 15 | 20 | 30 | 40 | 45 | 50 |
Vertical yield elongation, (%)≤ | 16 | |||||
Horizontal yield elongation, (%)≤ | 13 | |||||
Longitudinal elongation of 2% when the stretching force, (KN/m)≥ | 5 | 8 | 11 | 13 | 16 | 19 |
Horizontal elongation of 2% when the stretching force, (KN/m) ≥ | 7 | 10 | 13 | 15 | 20 | 24 |
Longitudinal elongation of 5% when the stretching force, (KN/m) ≥ | 8 | 10 | 15 | 16 | 25 | 27 |
Longitudinal elongation of 5% when the stretching force, (KN/m) ≥ | 10 | 13 | 15 | 20 | 22 | 23 |
| Special specifications can be customized according to the contract. |
Remark:please contact us for details and relative date.Particular specifications can be customized.
picture Information
Used in highway reinforcement
Used in mine reinforcement
