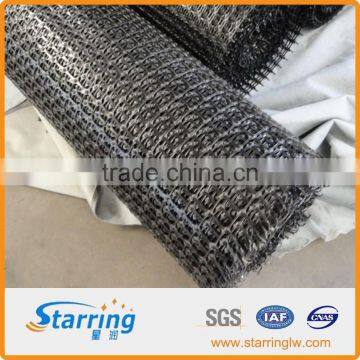

Biaxial Geogrids BX1200 Description
1. Reduce the required structural filled soil, distribute load evenly with a high bi-directional tensile modulus and tensile strength as well as Resistance to mechanical damage and endurance capacity.
2. Mainly apply to the soft ground treatment and reinforced soil structure.
3. Effectively provide soft ground with carrying capacity, and make a whole interlocked system.
4. High tensile strength, stable structure, aging resistance, corrosion resistance and stable chemical properties.
5. Improve the carrying capacity of foundation (usually by more than 40%), increase spread angle (on average from 38 Celsius degrees to 50 Celsius degrees)
6. The same effect can be achieved in the shaft under the same load, with filled soil 30% -40% thinner. 3-5 times bearing capacity for the same thickness in the case of Geogrid used as reinforcement.
Applications Biaxial Geogrids BX1200

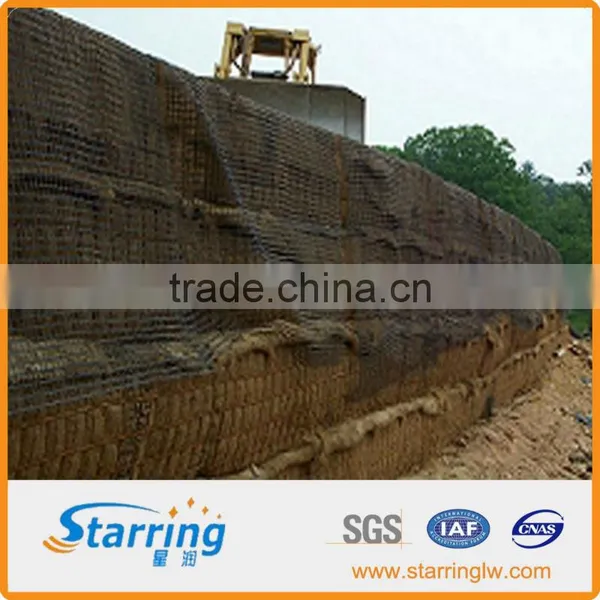

Biaxial Placstic Geogrid applies to a variety of reinforcement for dams and roadbeds, slope protection, wall reinforcement, and foundation reinforcement of permanent load carrying for vast airport, parking lot, piers and yard.
1. Increase the bearing capacity of (road) foundation and extend the service life of (road) foundation.
2. Prevent the road from collapsing or cracking, and keep the a neat appearance for the floor.
3. Easy construction, saving time & effort, shortened construction period, reduced maintenance spending.
4. Prevent culvert from cracking.
5. Reinforce slopes to prevent loss of water and soil.
6. Reduce cushion thickness, and save cost.
7. Support stability of slope grass network and deliver green environment.
8. Replace the metal mesh used for coal mine false roof mash.
Specifications and performance paramenters of Biaxial Geogrids
Project | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 | |||||
Mass per Unit Area (g/m2) | 300±30 | 330±30 | 400±40 | 500±50 | 550±50 | 600±50 | |||||
Width (m) | 1-6m | ||||||||||
Tensile Yield Force per Linear Meter (KN/m) (MD) | 15 | 20 | 30 | 40 | 45 | 50 | |||||
Tensile Yield Force per Linear Meter(KN/m) (CD) | 15 | 20 | 30 | 40 | 45 | 50 | |||||
(MD)Yield Elongation (%)≤ | 16 | ||||||||||
(CD)Yield Elongation (%)≤ | 13 | ||||||||||
Strength at 2% Strain, (KN/m)≥(MD) | 5 | 8 | 11 | 13 | 16 | 19 | |||||
Strength at 2% Strain(KN/m) ≥(CD) | 7 | 10 | 13 | 15 | 20 | 24 | |||||
Strength at 5% Strain (KN/m) ≥(MD) | 8 | 10 | 15 | 16 | 25 | 27 | |||||
Strength at 5% Strain (KN/m) ≥(CD) | 10 | 13 | 15 | 20 | 22 | 23 | |||||
Remark | Special specifications can be customized according to the contract. | ||||||||||
