Specifications
Filament Spunbond Needle Punched Geo Fabric1.Good drainage performance
2.Good filtration performance high strength
Filament Spunbond Needle Punched Geo Fabric
_____________________________________________________________________
Geo Fabric Product Description
Filament Spunbond Needle Punched Geotextile is made polyester filament,They boast excellent Anti-aging, Acid and Alcali resistance, abrasion resistance, good flexibility and easy for construction
.
_____________________________________________________________________
Geo Fabric Product Specifications and Technical Parameters
|
item
|
Value
|
||||||||||
Nominal breaking strength /(KM/m) |
4.5 |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
||
1 |
Breaking strength(MD/CD)(KN/m) |
4.5 |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
|
2 |
Elongation at break (MD/CD)/% |
40-80 |
|||||||||
3 |
CBR mullen burst strength KN≥ |
0.8 |
1.6 |
1.9 |
2.9 |
3.9 |
5.3 |
6.4 |
7.9 |
8.5 |
|
4 |
Tear strength/KN |
0.14 |
0.21 |
0.28 |
0.42 |
0.56 |
0.70 |
0.82 |
1.10 |
1.25 |
|
5 |
Sieve size O90 mm |
0.05-0.20 |
|||||||||
6 |
Vertical permeability coefficient cm/s |
K×(10-1-10-3)K=1.0-9.9 |
|||||||||
7 |
Thickess/mm ≥ |
0. 8 |
1.2 |
1.6 |
2.2 |
2.8 |
3.4 |
4.2 |
5.5 |
6.8 |
|
8 |
Width variation% |
-0.5 |
|||||||||
9 |
Weight variation |
-5 |
|||||||||
_____________________________________________________________________
Geo Fabric Geotextile joints to connect
General Geotextile joints to connect there is overlap, welding and oversew three ways.
Note:If geotextile joints to connect on the flat ground, overlap width>30cm.
If geotextile joints to connect not on the flat ground, overlap width>50cm.
_____________________________________________________________________

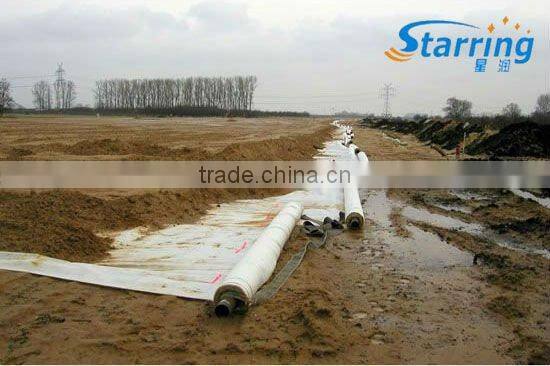

Geo Fabric Application Range
Used in the area of highway, railway, dam, coastal beach for rein forcement, filtration, separation and
drainage, especially used in salt marshes and garbage burying field.
_____________________________________________________________________

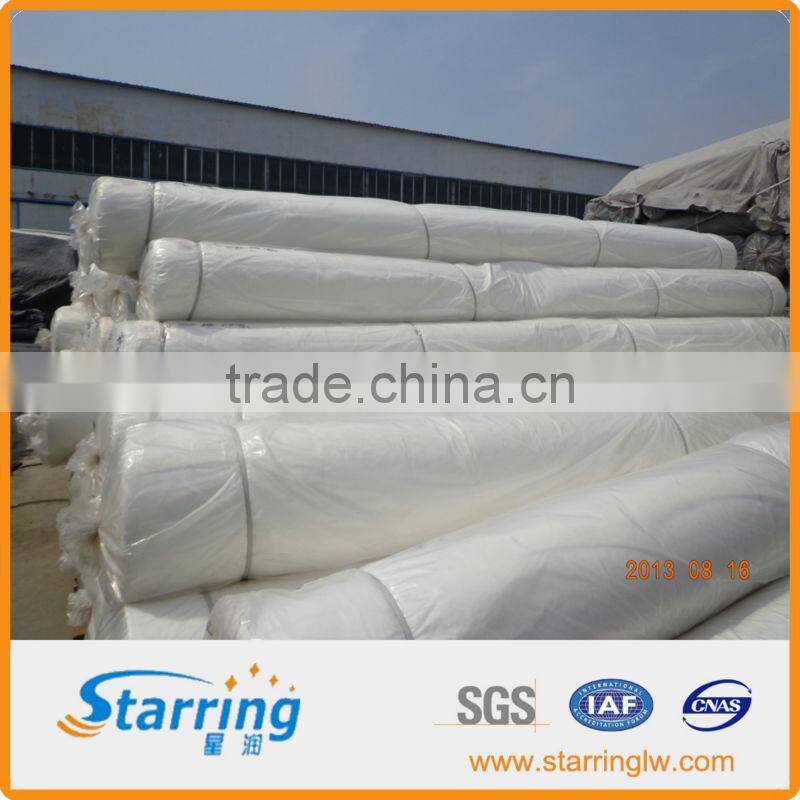

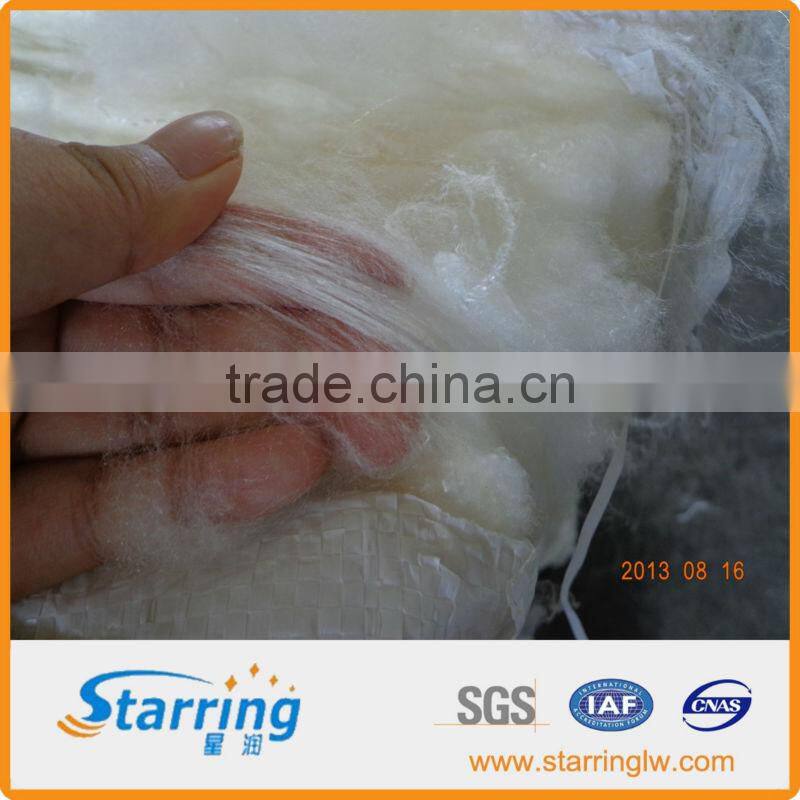

Geo Fabric Picture Information
