Compound Geomembrane With PE Liner

Name: Compound Geomembrane With PE Liner
Brand: Starring
SKU: 142586570
Availability: InStock

Laiwu Starring Project Material Co., Ltd.

Negotiable MOQ: 9 Square Meters (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Starring

Material:

HDPE, LDPE, LLDPE, Other, HDPE, LDPE, LLDPE, PE geomembrane

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Starring

Material HDPE, LDPE, LLDPE, Other, HDPE, LDPE, LLDPE, PE geomembrane

Specifications

Compound Geomembrane with PE Liner
1.The geomembrane has tearing resistance
2.The geotextile has puncturing resistance

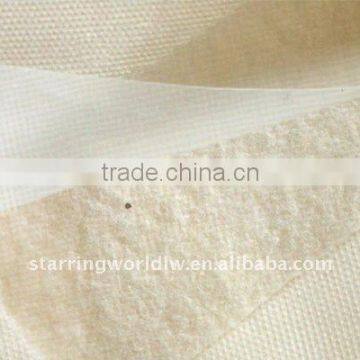

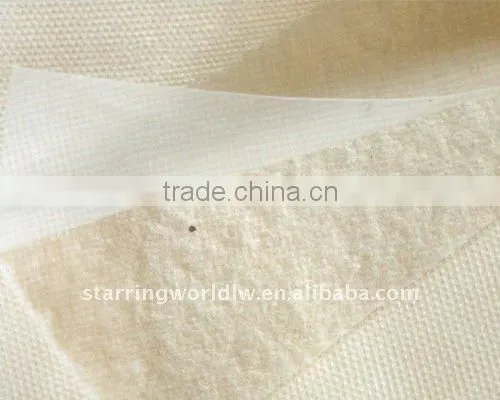

Compound Geomembrane with PE Liner

Product Description

Name	Compound Geomembrane
Description	Compound geomembrane is a waterproof material formed with the fusing of non woven fabric and Polyethylene membrane. Compound geomembrane may be of two types - one side non woven fabric and one side PE membrane and two sides non woven fabric with PE membrane in between. Geomembrane Material:PE Geotextile Material:PP or PET staple nonwoven geotextile PET filament spunbond nonwoven geotextile
Features	1.High tensile strength & tearing resistance
	2. High bursting resistance
	3.Aging resistance
	4.Anti-corrosion
	5.Long temperature range and life span
Application	The gemenbrane is against drawing, tearing resistance, and high CBR plunger strength, can meet the need of civil engineering such as water conservancy, municipal administration, building, traffic, subway, tunnel ect. Because of selecting high polymer for use and adding the aging-resistant materials in the production technology, it can use in the unconventional temperature environment.

Product Technical Parameters

Needle Punched common short-fabric non-woven / polyethylene composite geotextile strength requirements

Mass per unit are g/m2	400	500	600	700	800	900	1000	Marks
Thickness of membrane mm	0.25-0.35			0.3-0.5
Tensile at break kN/ m	5	7.5	10.0	12.0	14.0	16.0	18.0	MD/CD
CBR strength kN	1.1	1.5	1.9	2.2	2.5	2.8	3.0
Tear strength kN	0.15	0.25	0.32	0.40	0.48	0.56	0.62	MD/CD
Note: According to the specifications of thickness per unit area, the actual specifications in the range of specifications between the adjacent table, according to the interpolation method to calculate the appropriate evaluation indicators; beyond the scope of the table, the assessment indicators to be negotiated by the supply and demand.
