Specifications
HDPE smooth compound geomembrane1.High strength,excellent tenacity
2.Anti-aging,anti-acid and alkali

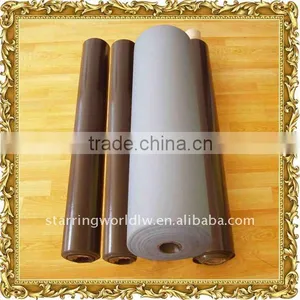

HDPE Smooth Compound Geomembrane
_______________________________________________________________________
Product Description
Compound geomembrane is a non-woven complex geomembrane, using non woven geotextile as the base,and polyethylene (PE) membrane as membrane materials. The product is formed after the processes of calendering, spreading and rolling.
_______________________________________________________________________
Products Features
1.High strength,excellent tenacity
2.Anti-aging,anti-acid and alkali
3.Creep, corrosion and abrasion resistance
4.Excellent drainage, separation,filtration,reinforcement and seepage-proofing performance.
5.Safe and easy for construction
_______________________________________________________________________
Technical Parameters
Item | Value | |||||||||
Nominal Breaking Strength(KN/M) | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 | ||
1 | Breaking Strength(MD/CD) | 5.0 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 | |
2 | Breaking Elongation(MD/CD) | 30-100 | ||||||||
3 | CBR Mullen Burst Strength/KN≥ | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3.0 | 3.2 | |
4 | Tear Strength(MD/CD) /(KN/m)≥ | 0.15 | 0.25 | 0.32 | 0.40 | 0.48 | 0.56 | 0.62 | 0.70 | |
5 | Peel Strength/(N/cm) | 6 | ||||||||
6 | Vertical Permeability Coefficient/(CM/S) | According to request | ||||||||
7 | Width Variation/% | -1.0 | ||||||||
_______________________________________________________________________

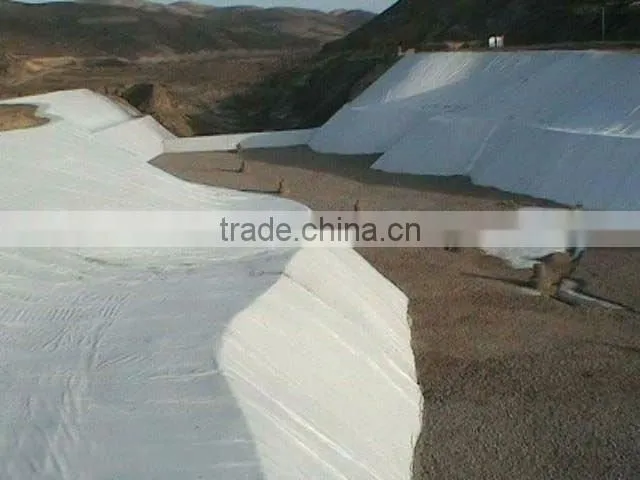

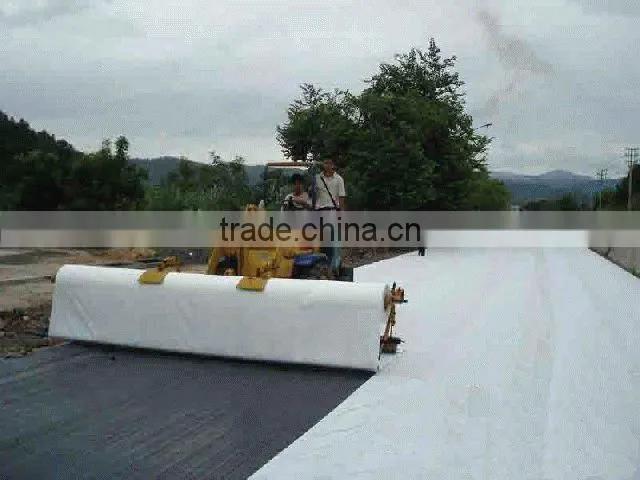

Application range
Widely used in dam ,traffic tunnel,road,airport ,drainage, housing,environmental protection and many other fields for waterproof protection,reinforcement,etc.
