Specifications
2.5mm HDPE geomembrane liner with high quality1>High strength, excellent tenacity
2>Anti-aging,anti-acid and alkali
2.5mm HDPE geomembrane liner with high quality
______________________
Product Description
Compound geomembrane is a non-woven complex geomembrane, using non woven geotextile as the base,and polyethylene (PE),PVC membrane, etc. as membrane materials. The product is formed after the processes of calendering, spreading and rolling.
______________________
Product Specification:
1.One piece of geotextile and one piece of membrane:
Weight of base geotextile:100-1000g/m2;Thickness of geomembrane :0.1-1.5mm
2.Two pieces of geotextile and one piece of membrane:
Weight of base geotextile:80-600g/m2;Thickness of geomembrane: 0.2-1.5mm
3.One piece of geotextile and two pieces of geomembrane:
Weight of base geotextile :100-1000g/m2;Thickness of geomembrane :0.1-0.8mm
4.Multi-layers:
Weight of base geotextile :100-1000g/m2; Thickness of geomembrane :0.1-0.8mm
______________________
Application range

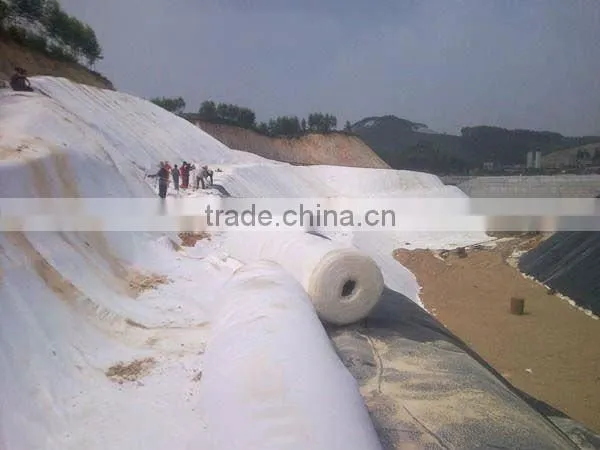

Widely used in dam ,traffic tunnel,road,airport ,drainage, housing,environmental protection and many other fields for waterproof protection,reinforcement,etc.
______________________
Technical Parameters
GB/T17642-2008
Item |
Value |
|||||||||
Nominal Breaking Strength(KN/M) |
5 |
7.5 |
10 |
12 |
14 |
16 |
18 |
20 |
||
1 |
Breaking Strength(MD/CD) |
5.0 |
7.5 |
10 |
12 |
14 |
16 |
18 |
20 |
|
2 |
Breaking Elongation(MD/CD) |
30-100 |
||||||||
3 |
CBR Mullen Burst Strength/KN≥ |
1.1 |
1.5 |
1.9 |
2.2 |
2.5 |
2.8 |
3.0 |
3.2 |
|
4 |
Tear Strength(MD/CD) /(KN/m)≥ |
0.15 |
0.25 |
0.32 |
0.40 |
0.48 |
0.56 |
0.62 |
0.70 |
|
5 |
Peel Strength/(N/cm) |
6 |
||||||||
6 |
Vertical Permeability Coefficient/(CM/S) |
According to request |
||||||||
7 |
Width Variation/% |
-1.0 |
||||||||
